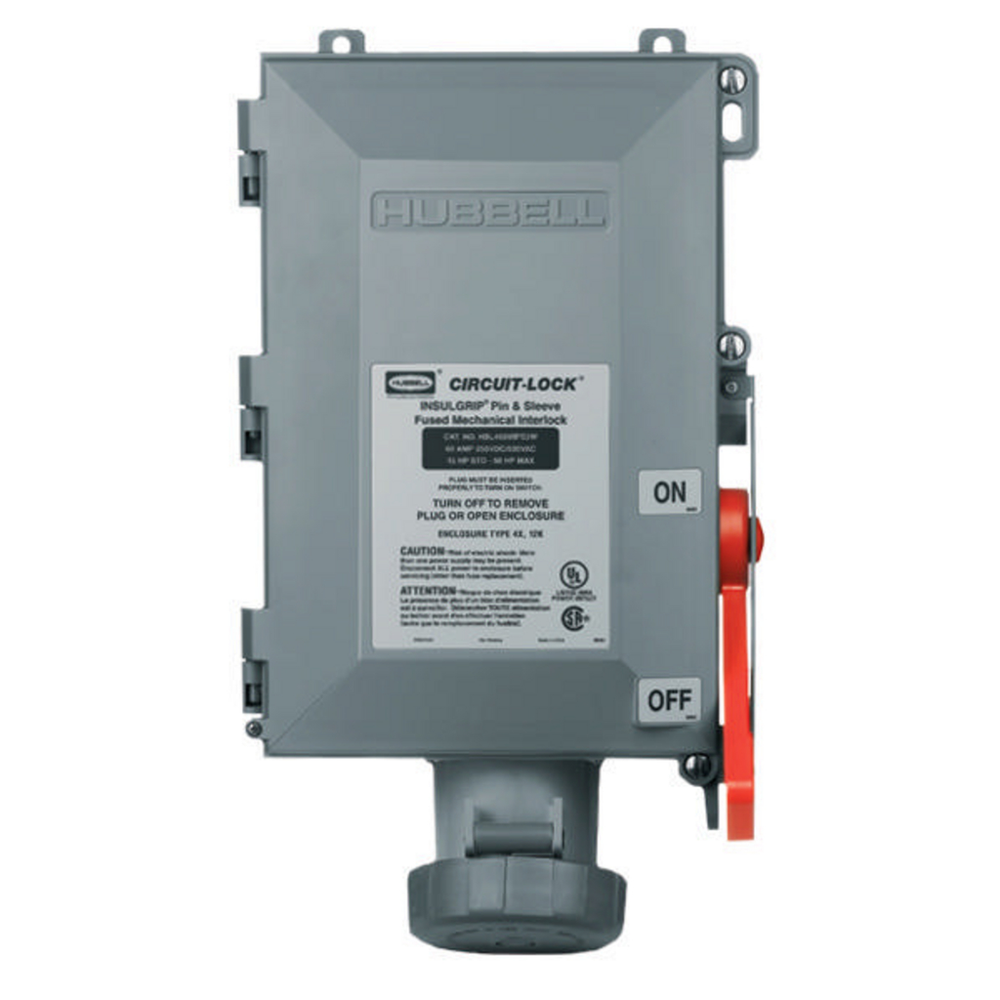

Hubbell HBL560MIF9W
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Heavy Duty IEC Pin and Sleeve Industrial Grade Female Fused Mechanically Interlocked Receptacle, 60A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire GroundingIEC Pin and Sleeve Female, Fused Mechanically Interlocked Receptacle 60A
Hubbell Wiring Device-Kellems HBL560MIF9W is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Amperage Rating
- 60 A
- Application
- High Ampacity Connections
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585520995
- Class Code
- A12
- Color
- Blue
- Connectivity
- Pressure Terminal Screws
- Country of Origin
- PR
- Current / Amperage Rating
- 60 A
- Current Rating
- 60 A
- Description - Invoice
- PS, IEC, MECHINT, 4P5W,60A 120/208V,FUSE
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 12.400 in
- Environmental Conditions
- Watertight
- Freight Class Code
- 06168002
- Harmonization Code
- 8537109170
- Image Actual Or Representative
- A
- Industry Standard(s)
- CSA Certified;UL Listed for US and Canada
- Lowest Level UOM
- Each
- Material
- Thermoplastic
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Nema Rating
- Non-NEMA
- NEMA Rating
- Non-NEMA
- Number of Poles
- 4-Pole
- Number Of Poles
- 4-Pole
- Number of Wires
- 5-Wire
- Number Of Wires
- 5-Wire
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000V AC Min;Electrical - Max Working Voltage - 600V AC;Environmental - Flammability - UL94-5VA and V-0 Classification;Environmental - Ingress Protection - IP66 Suitability;Environmental - Operating Temperatures - Max. Continuous +75°C;Min. Continuous -40°C;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External adjustment feet;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
- Phase
- Three Phase
- Series
- Fused Interlocks
- Special Features
- Watertight
- Standard
- CSA Certified;UL Listed for US and Canada
- Style
- Standard Service
- Sub Class Code
- A12A210
- Type
- Mechanical Interlock
- Voltage Rating
- 3 Phase Y 120/208 VAC
- Voltage Rating Description
- 3 Phase Y 120/208 VAC
- Wattage
- 12480
- Width
- 12.400 in
- Wire Size
- #8 AWG to #2 AWG
