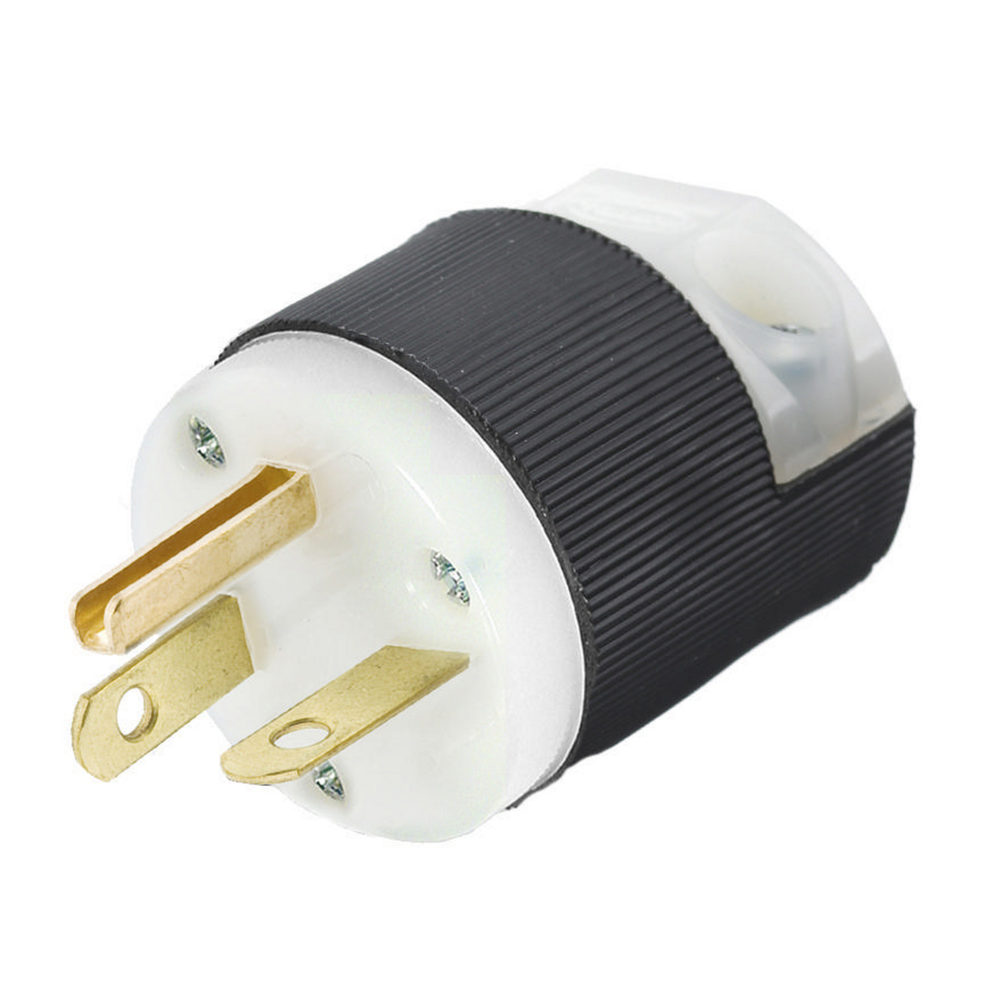

Hubbell HBL5466C
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 20A 250V, 6-20P, Black and White, Single Pack.Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 20A 250V, 6-20P, Black and White, Single Pack
Hubbell Wiring Device-Kellems HBL5466C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Amperage Rating
- 20 A
- Base Unit of Measure
- EA
- BOX SIZE
- 3.048x8.298x3.298 (in)
- Carton - Gross Weight per Pack
- 1.650 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585174709
- Carton - Total Units
- 10 EA
- Case - Total Units
- 100 EA
- Case Weight
- 15.000 lb.
- Class Code
- A04
- Color
- Black, White
- Country of Origin
- PR
- Current / Amperage Rating
- 20 A
- Current Rating
- 20 A
- Description - Invoice
- PLUG, 20A 250V, 6-20P, B/W
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 1.97 in x 1.53 in x 1.53 in
- Each - Width
- 1.900 in
- Environmental Conditions
- Ribbed Nylon Housing Is Impact and Chemical Resistant
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Height
- 1.53 in
- Horsepower - Maximum
- 2
- Image Actual Or Representative
- A
- Industry Standard(s)
- CSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
- Length
- 1.97 in
- MSDS Flag
- No
- Nema Rating
- 6-20P
- NEMA Rating
- 6-20P
- Number of Poles
- 2-Pole
- Number Of Poles
- 2-Pole
- Number of Wires
- 3-Wire
- Number Of Wires
- 3-Wire
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 HB or better;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Replaced Catalog Number
- 5466C;5466CCN;5933;5935;HBL5466CCN
- Series
- Insulgrip
- Size
- 1.97 in x 1.53 in x 1.53 in
- Standard
- CSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
- Style
- Standard
- Sub Class Code
- A04A010
- Type
- Plugs
- Voltage Rating
- 250 V
- Voltage Rating Description
- 250 V
- Wattage
- 5000 W
- Weight
- 0.15 lb.
- Width
- 1.900 in
- Wire Size
- #18 AWG to #10 AWG
