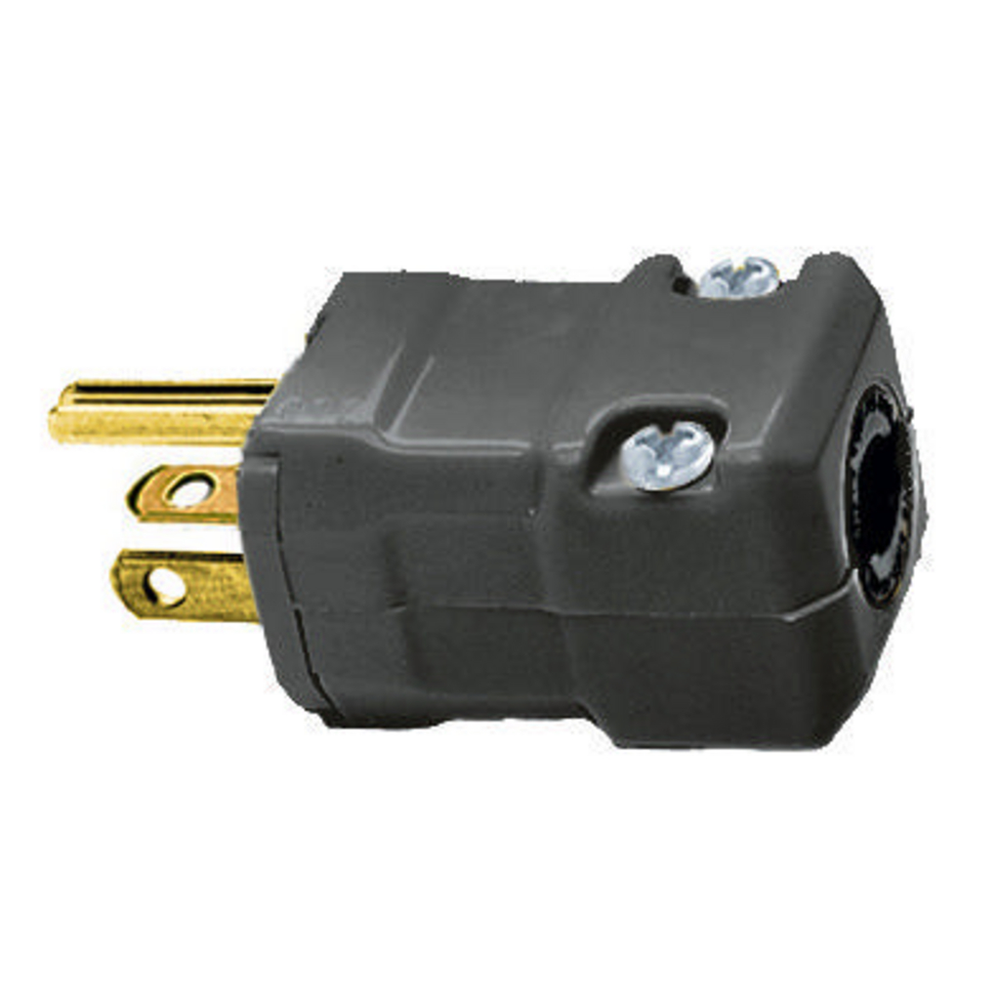

Hubbell HBL5364VBK
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Straight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 20A 125V, 5-20P, Black, Single PackStraight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 20A 125V, 5-20P, Black, Single Pack
Hubbell Wiring Device-Kellems HBL5364VBK is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Amperage Rating
- 20 A
- Application
- Industrial/Commercial Grade
- Base Unit of Measure
- EA
- BOX SIZE
- 3.048x8.298x3.308 (in)
- Carton - Gross Weight per Pack
- 1.500 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585019222
- Carton - Total Units
- 10 EA
- Case - Total Units
- 50 EA
- Case Weight
- 7.500 lb.
- Class Code
- A04
- Color
- Black
- Connectivity
- Screw Terminals
- Country of Origin
- PR
- Current / Amperage Rating
- 20 A
- Current Rating
- 20 A
- Description - Invoice
- VALISE PLUG, 20A 125V, 5-20P, BK
- Dielectric Strength
- Withstands 2,000V minimum
- Each - Width
- 1.600 in
- Freight Class Code
- 06168002
- Harmonization Code
- 8536698000
- Horsepower - Maximum
- 1.00
- Image Actual Or Representative
- A
- Industry Standard(s)
- CSA Certified to C22.2 No 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
- Material
- Polycarbonate
- Material - Mounting Hardware
- Cord Mounted
- MSDS Flag
- No
- Nema Rating
- 5-20P
- NEMA Rating
- 5-20P
- Number of Poles
- 2-Pole
- Number Of Poles
- 2-Pole
- Number of Wires
- 3-Wire
- Number Of Wires
- 3-Wire
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical:Current Interrupting: Certified for current interrupting at full rated current;Dielectric Voltage: Withstands 2,000V minimum;Mechanical :Terminal Accommodation #18-#12 AWG stranded copper wire only;Terminal Identification: Terminals identified in accordance with UL 498 and CSA;Environmental :Flammability: UL 94 HB or better;IP Suitability: IP20;Operating Temperatures: Maximum continuous 75°C;minimum -40°C (w/o impact)
- Phase
- Single Phase
- Replaced Catalog Number
- HBL5585EBK
- Series
- Valise
- Standard
- CSA Certified to C22.2 No 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
- Style
- Standard
- Sub Class Code
- A04A050
- Type
- Plugs
- Voltage Rating
- 125 VAC
- Voltage Rating Description
- 125 V
- Weight
- 0.15 lb.
- Width
- 1.600 in
- Wire Size
- #18 AWG to #12 AWG
