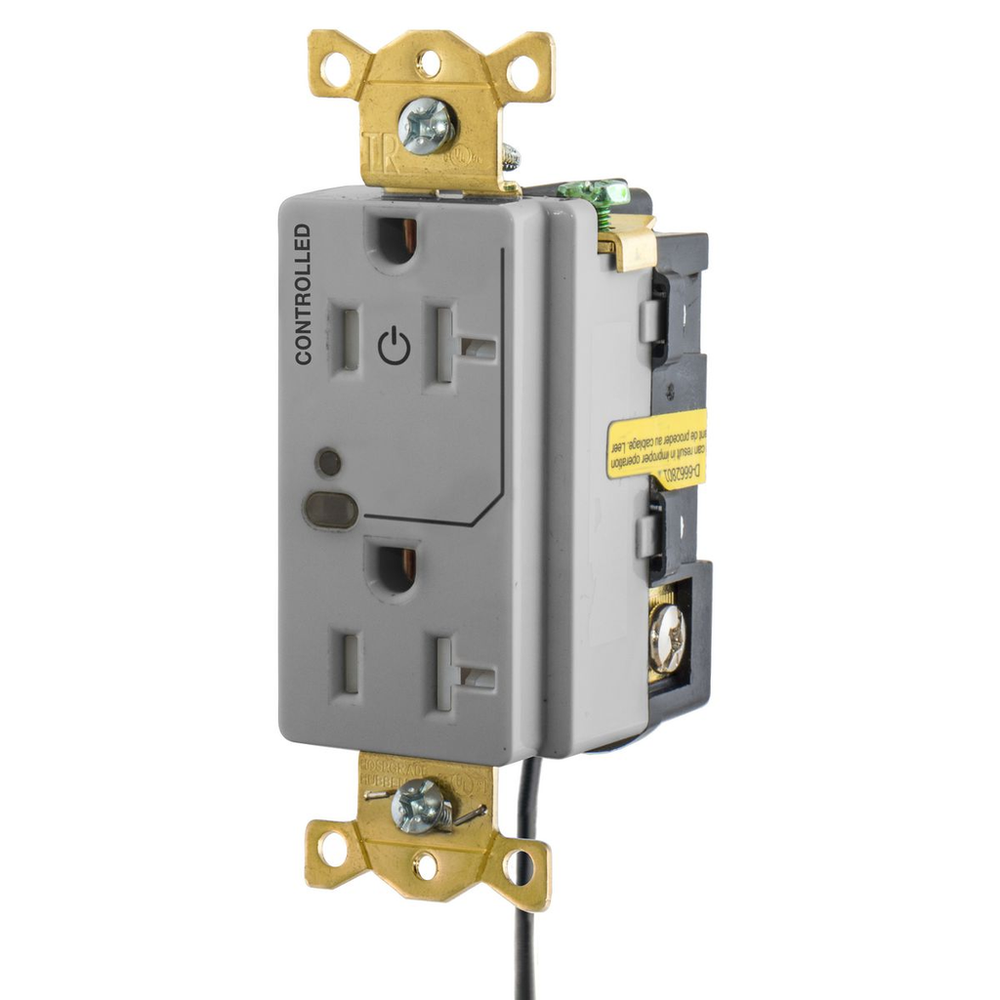

Hubbell HBL5362LC1GY
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Straight Blade Devices,Wire Switched ,Logic Load Control Receptacles,Split Circuit, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, GrayStraight Blade Devices,Wire Switched ,Logic Load Control Receptacles,Split Circuit, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Gray
Hubbell Wiring Device-Kellems HBL5362LC1GY is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Amperage Rating
- 20 A
- Application
- Logic Load Control Receptacles
- Base Unit of Measure
- EA
- BOX SIZE
- 4.200x11.000x5.000 (in)
- Carton - Gross Weight per Pack
- 3.500 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585427676
- Carton - Total Units
- 10 EA
- Case - Total Units
- 50 EA
- Case Weight
- 17.500 lb.
- Class Code
- A48
- Color
- Gray
- Connectivity
- Back Wired
- Country of Origin
- CN
- Current / Amperage Rating
- 20 A
- Description - Invoice
- LOAD CTRL DR, SPLT CIRC, 20A, 5-20R, GY
- Dielectric Strength
- Withstands 2,000V minimum
- Display Size
- Standard Sized Product
- Each - Width
- 2.200 in
- Freight Class Code
- 06168002
- Harmonization Code
- 8536698000
- Image Actual Or Representative
- A
- Industry Standard(s)
- cULus 498B SA UL File No. E481574;Fed. Spec. WC596G;Complies with:NEC Section 406.3 (E), ASHRAE 90.1 Section 8.4.2,California Title 24;Artcile 130.5(d);NEMA WD-6 Compliant
- MSDS Flag
- No
- Nema Rating
- 5-20R
- NEMA Rating
- 5-20R
- Number of Poles
- 2-Pole
- Number Of Poles
- 2-Pole
- Number of Wires
- 3-Wire
- Number Of Wires
- 3-Wire
- Operating Temperature
- 0° to 40°C (32° to 104°F) Relative Humidity(non-condensing) 0% to 95% (w/o impact)
- Performance
- Electrical: Current Interrupting: Certified for current interrupting at full rated current;Dielectric Voltage: Withstands 2,000V minimum;Mechanical: Terminal Accomodation #14-10 AWG stranded or solid copper conductor only;Terminal Indentification: Terminals identified in accordance with UL498 and CSA (Brass, White, Green);Environmental:Flammabilty: UL94V-2;Operating Location: Indoor Use Only;Operating Temperature 0° to 40°C (32° to 104°F) Relative Humidity (non-condensing) 0% to 95% (w/o impact)
- Series
- Switched Receptacles
- Standard
- cULus 498B SA UL File No. E481574;Fed. Spec. WC596G;Complies with:NEC Section 406.3 (E), ASHRAE 90.1 Section 8.4.2,California Title 24;Artcile 130.5(d);NEMA WD-6 Compliant
- Style
- Wired
- Sub Class Code
- A48A575
- Type
- Split Circuit
- Voltage Rating
- 125 V
- Voltage Rating Description
- 125 V
- Weight
- 0.35 lb.
- Width
- 2.200 in
- Wire Size
- #14 AWG to #10 AWG
