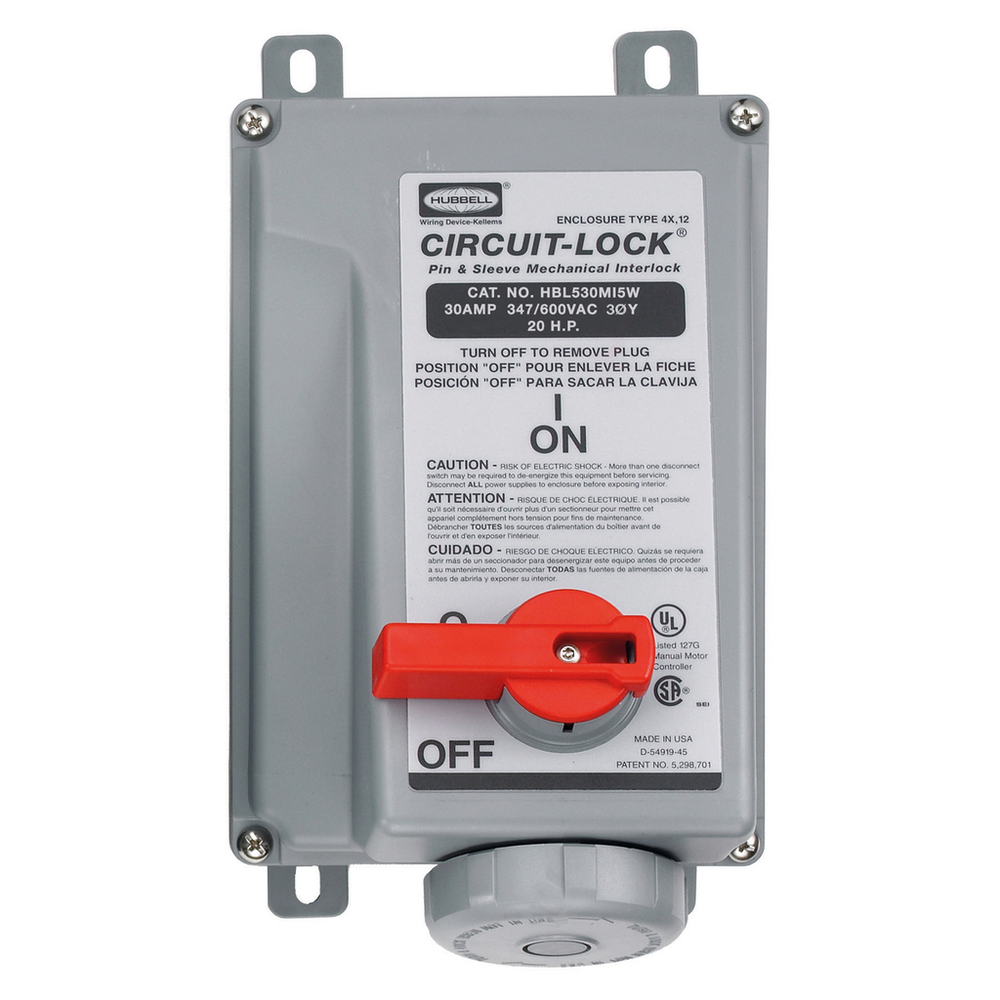

Hubbell HBL530MI5W
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 30A 3-Phase Wye 347/600V AC , 4-Pole 5-Wire Grounding, Terminal ScrewsHeavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 30A 3-Phase Wye 347/600V AC , 4-Pole 5-Wire Grounding, Terminal Screws
Hubbell Wiring Device-Kellems HBL530MI5W is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Amperage Rating
- 30 A
- Application
- High Ampacity Watertight Connections
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585406121
- Class Code
- A12
- Color
- Black
- Connectivity
- Pressure Terminal Screws
- Country of Origin
- PR
- Current / Amperage Rating
- 30 A
- Current Rating
- 30 A
- Description - Invoice
- PS, IEC, MECHINT, 4P5W, 30A 347/600V,W/T
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 7.900 in
- Environmental Conditions
- Watertight
- Freight Class Code
- 06168002
- Harmonization Code
- 8537109170
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL Listed
- Lowest Level UOM
- Each
- Material
- Thermoplastic
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Nema Rating
- Non-NEMA
- NEMA Rating
- Non-NEMA
- Number of Poles
- 4-Pole
- Number Of Poles
- 4-Pole
- Number of Wires
- 5-Wire
- Number Of Wires
- 5-Wire
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000V AC Min;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 Classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown);Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids).;Environmental - Operating Temperature - Max. Continuous +75°C;Min. Continuous -40°C;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External adjustable feet;Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
- Phase
- Three Phase
- Replaced Catalog Number
- 530MI5W;530MIF5W;560MI5W;HBL530MIF5W;MI530R5W
- Series
- Unfused Circuit-Lock
- Special Features
- Watertight
- Standard
- UL Listed
- Style
- Standard Service
- Sub Class Code
- A12A210
- Type
- Mechanical Interlock
- Voltage Rating
- 3 Phase Y 347/600 VAC
- Voltage Rating Description
- 3 Phase Y 347/600 VAC
- Wattage
- 18000
- Width
- 7.900 in
- Wire Size
- #12 AWG to #8 AWG
