Hubbell HBL47CM15
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

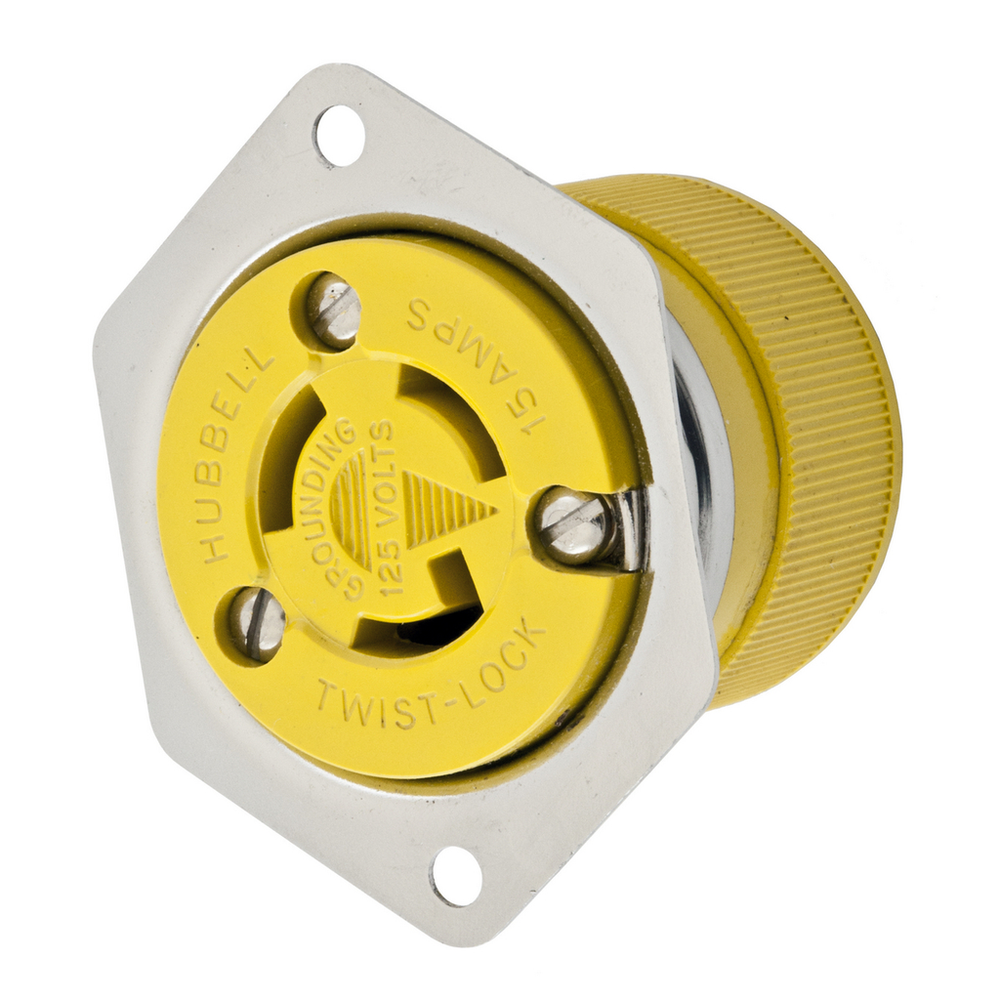

Locking Devices, Twist-Lock®, Corrosion Resistant Flanged Receptacle, 15A, 125V, 2 Pole, 3 Wire Grounding, NEMA L5-15R, Stainless steel casing, Yellow melamineLocking Devices, Twist-Lock®, Marine Grade, Flanged Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, L5-15R, Screw Terminal, Stainless Steel
Hubbell Wiring Device-Kellems HBL47CM15 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
- Listings
- UL 498;Fed.Spec. W-C-596;CSA C22.2 No.42
Specifications
- Amperage Rating
- 15 A
- Application
- Marine Wiring Devices
- Base Unit of Measure
- EA
- BOX SIZE
- 3.298x12.298x2.548 (in)
- Carton - Gross Weight per Pack
- 2.05 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585237022
- Carton - Total Units
- 10 EA
- Case - Total Units
- 50 EA
- Case Weight
- 7.500 lb.
- Class Code
- A08
- Color
- Metallic
- Connectivity
- Screw Terminals
- Country of Origin
- PR
- Current / Amperage Rating
- 15 A
- Current Rating
- 15 A
- Description - Invoice
- LKG FLG-RCPT, CM, 15A 125VL5-15R
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 2.31 in x 2.31 in x 2.08 in
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 2.420 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Height
- 2.08 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498
- Length
- 2.31 in
- Lowest Level UOM
- Each
- Material
- Stainless Steel
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Nema Rating
- L5-15R
- NEMA Rating
- L5-15R
- Number of Poles
- 2-Pole
- Number Of Poles
- 2-Pole
- Number of Wires
- 3-Wire Grounding
- Number Of Wires
- 3-Wire Grounding
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical-Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage -Withstands 2,000V minimum;Mechanical - Terminal Accommodation - #18 - #10 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact)
- Phase
- Single Phase
- Replaced Catalog Number
- 47CM15
- Size
- 2.31 in x 2.31 in x 2.08 in
- Special Features
- Corrosion Resistant
- Standard
- Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498
- Sub Class Code
- A08A110
- Voltage Rating
- 125 VAC
- Weight
- 0.15 lb.
- Width
- 2.420 in
- Wire Size
- #18 AWG to #10 AWG
