Description

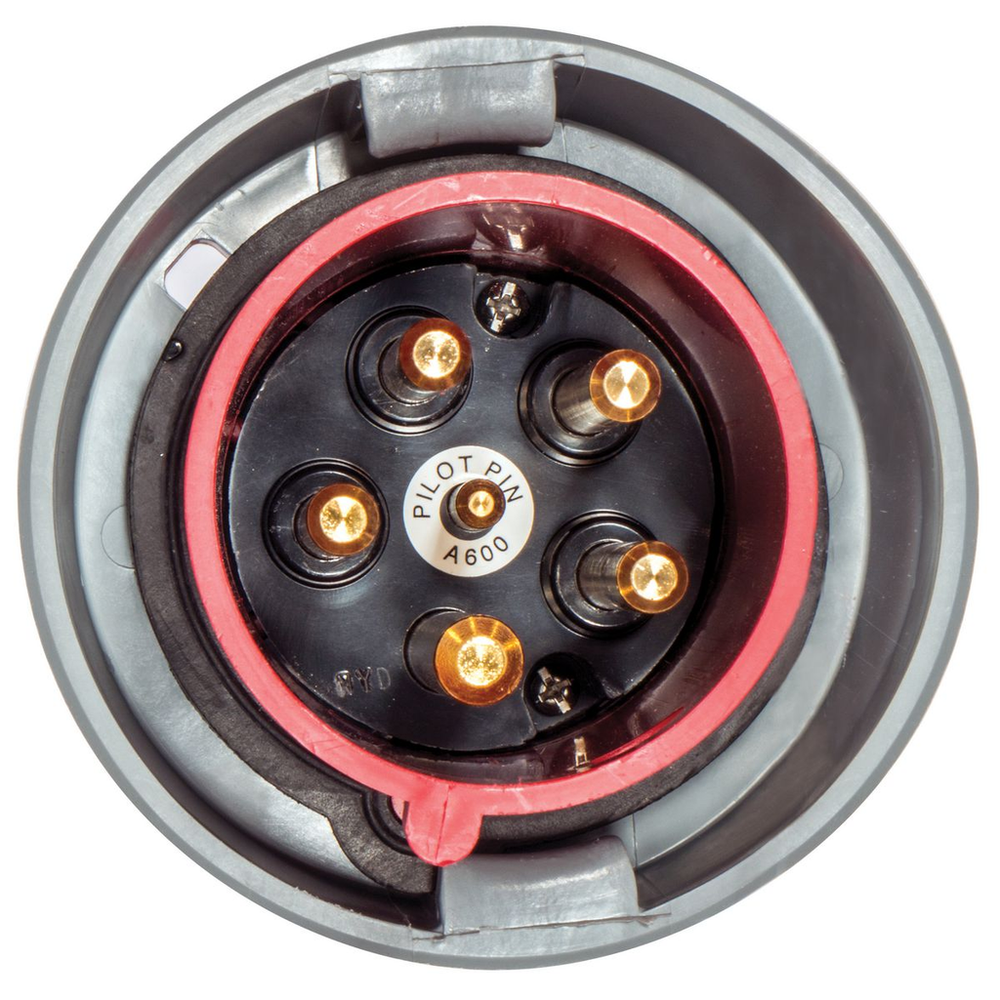

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Inlet w/ Pilot Pin, 60/63 A, 380-415 VAC, 3-Pole 4-Wire Wire Grounding, Terminal Screws, Red, 4X and IP69kHeavy Duty Products, IEC Pin and Sleeve
Hubbell Wiring Device-Kellems HBL460B6WP is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Application
- High Ampacity Watertight Connections
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585365435
- Class Code
- A12
- Color
- Red
- Connectivity
- Pressure Terminal Screws
- Country of Origin
- US
- Description - Invoice
- INLET,3P4W, 60/63A 380-415V,4X/IP69K,PIN
- Dielectric Strength
- Withstands 3000V Minimum in
- Display Size
- Standard Sized Product
- Each - Width
- 5.600 in
- Environmental Conditions
- Watertight
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Image Actual Or Representative
- A
- Industry Standard(s)
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed to UL1682
- Insulation
- Insulated Body
- Material
- Thermoplastic
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Nema Rating
- Non-NEMA
- NEMA Rating
- Non-NEMA
- Number Of Conductors
- 4-Wire Grounding
- Number of Poles
- 3-Pole
- Number Of Poles
- 3-Pole
- Number of Wires
- 4-Wire
- Number Of Wires
- 4-Wire
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability -V-0;Environmental - Ingress Protection - Type 3R, 3RX, 4X and IP68, IP69k Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
- Phase
- Multi Phase
- Replaced Catalog Number
- 463B6W;HBL463B6W;HBLS460B6WP
- Series
- HBL Heavy Duty
- Special Features
- Watertight
- Standard
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed to UL1682
- Style
- Standard Service
- Sub Class Code
- A12A180
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
- Type
- Inlet w/ Pilot Pin
- Voltage Rating
- 380-415 VAC
- Voltage Rating Description
- 380-415 VAC
- Width
- 5.600 in
- Wire Size
- #8 AWG to #2 AWG
