Hubbell HBL4560RT
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

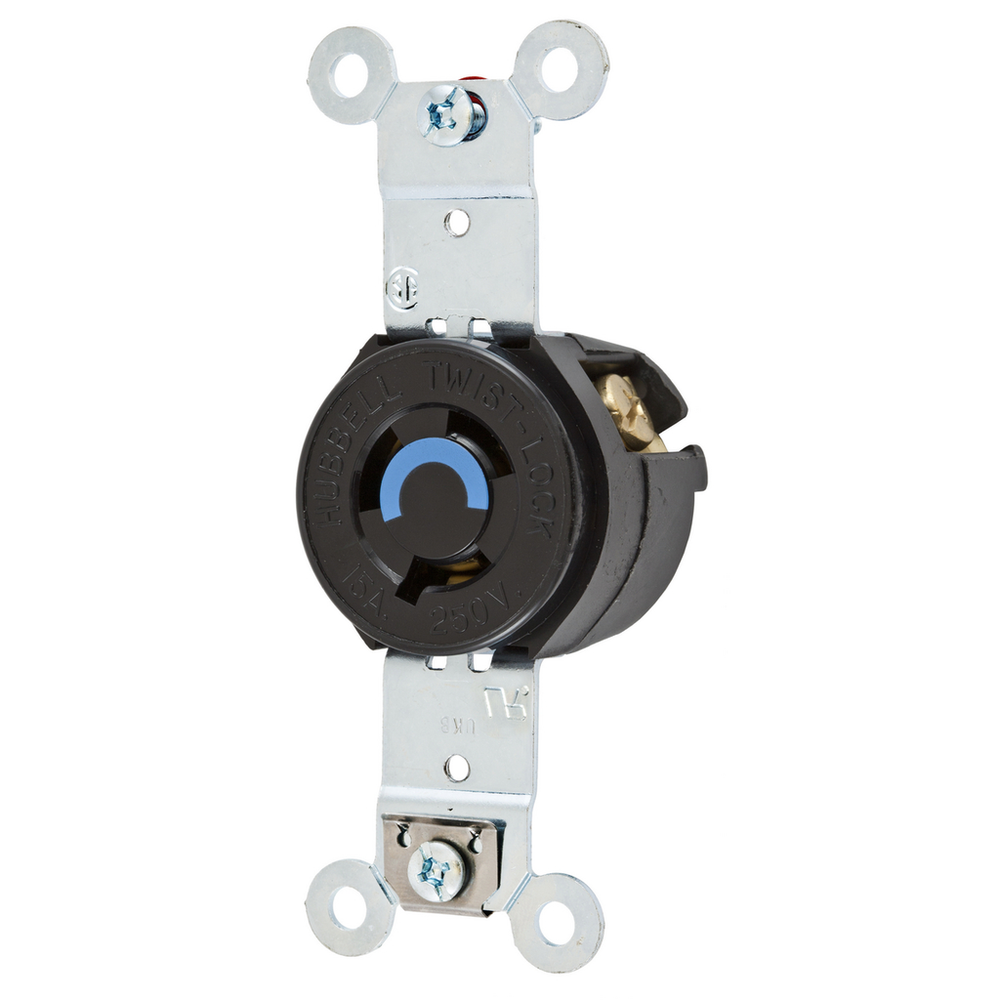

Locking Devices, Twist-Lock®, Single Receptacle, 15A, 250V, 2 Pole, 3 Wire Grounding, NEMA L6-15R, Ring terminal connectionLocking Devices, Twist-Lock®, Industrial, Single Receptacle, 15A 250V, 2-Pole 3-Wire Grounding, L6-15R, Ring Terminal, Black
Hubbell Wiring Device-Kellems HBL4560RT is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
- Listings
- UL 498;Fed.Spec. W-C-596;CSA C22.2 No.42
Specifications
- Amperage Rating
- 15 A
- Application
- Heavy Duty Industrial
- Base Unit of Measure
- EA
- BOX SIZE
- 3.238x9.178x4.298 (in)
- Carton - Gross Weight per Pack
- 1.95 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585318561
- Carton - Total Units
- 10 EA
- Case - Total Units
- 100 EA
- Case Weight
- 15.000 lb.
- Class Code
- A08
- Color
- Black
- Connectivity
- Ring Terminal
- Country of Origin
- PR
- Current / Amperage Rating
- 15 A
- Current Rating
- 15 A
- Description - Invoice
- LKG SGL RCPT, RING-T 15A/250V,L6-15R, BK
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 3.28 in x 1.53 in x 1.26 in
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 1.790 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536698000
- Height
- 1.26 in
- Horsepower - Maximum
- 1.5
- Image Actual Or Representative
- A
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498
- Length
- 3.28 in
- Lowest Level UOM
- Each
- Material
- Thermoplastic
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Nema Rating
- L6-15R
- NEMA Rating
- L6-15R
- Number of Poles
- 2-Pole
- Number Of Poles
- 2-Pole
- Number of Wires
- 3-Wire Grounding
- Number Of Wires
- 3-Wire Grounding
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical-Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage -Withstands 2,000V minimum;Mechanical - Terminal Accommodation - #18 - #10 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact)
- Phase
- Single Phase
- Size
- 3.28 in x 1.53 in x 1.26 in
- Special Features
- Ring Terminal Version
- Standard
- Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498
- Sub Class Code
- A08A110
- Voltage Rating
- 250 VAC
- Weight
- 0.15 lb.
- Width
- 1.790 in
- Wire Size
- #18 AWG to #10 AWG
