Hubbell HBL45215
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

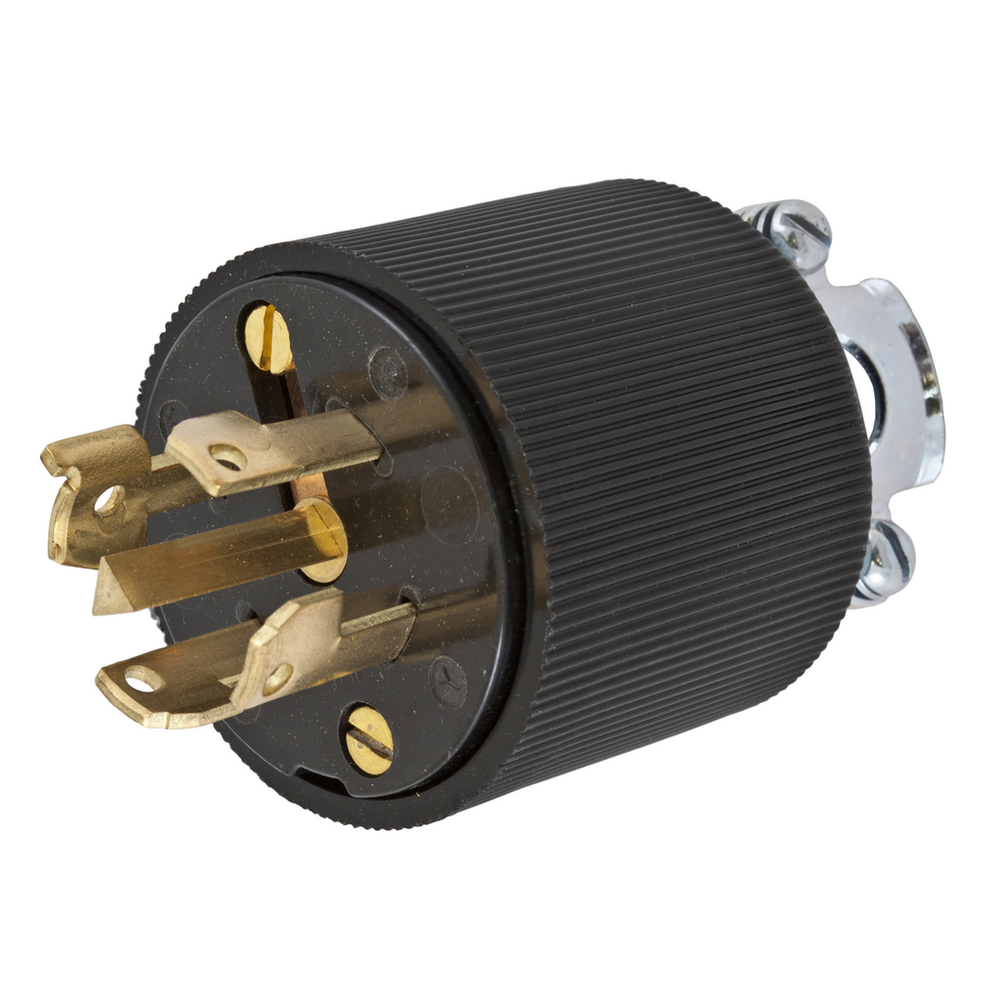

Locking Devices, Twist-Lock®, Variload®, Male Plug, 30A, 250V DC Max. and 600V AC Max. 50 - 400Hz, Non-NEMALocking Devices, Twist-Lock®, VariLoad, Male Plug, 30A 250V DC/600V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black, Unique Center Pin
Hubbell Wiring Device-Kellems HBL45215 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Amperage Rating
- 30 A
- Application
- Heavy Duty Industrial
- Base Unit of Measure
- EA
- BOX SIZE
- 3.978x11.048x4.478 (in)
- Carton - Gross Weight per Pack
- 4.200 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585236544
- Carton - Total Units
- 10 EA
- Case - Total Units
- 20 EA
- Case Weight
- 7.000 lb.
- Class Code
- A08
- Color
- Black
- Connectivity
- Screw Terminals
- Cord Range
- 0.625"-1.00"
- Cord Type
- All Listed Portables
- Country of Origin
- US
- Current / Amperage Rating
- 30 A
- Current Rating
- 30 A
- Description - Invoice
- LKG PLUG, VARILOAD, 4P5W, 30A 600V,B-PIN
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 2.77 in x 2.13 in x 2.13 in
- Display Size
- Standard Sized
- Each - Pack Description
- Each
- Each - Width
- 2.178 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Height
- 2.13 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Listed to UL 498
- Length
- 2.77 in
- Lowest Level UOM
- Each
- Material
- Nylon
- Material - Mounting Hardware
- Cord Mounted
- MSDS Flag
- No
- Nema Rating
- Non-NEMA
- NEMA Rating
- Non-NEMA
- Number of Poles
- 4-Pole
- Number Of Poles
- 4-Pole
- Number of Wires
- 5-Wire Grounding
- Number Of Wires
- 5-Wire Grounding
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #14 AWG - #10 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Phase
- Multi Phase
- Replaced Catalog Number
- 45215
- Size
- 2.77 in x 2.13 in x 2.13 in
- Special Features
- Unique Center Pin
- Standard
- Certified to CSA C22.2 No.42;Listed to UL 498
- Sub Class Code
- A08A160
- Voltage Rating
- 250 VDC/600 VAC
- Voltage Rating Description
- 250 VDC/600 VAC
- Weight
- 0.35 lb.
- Width
- 2.178 in
- Wire Size
- #14 AWG to #10 AWG
