Hubbell HBL420HS
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

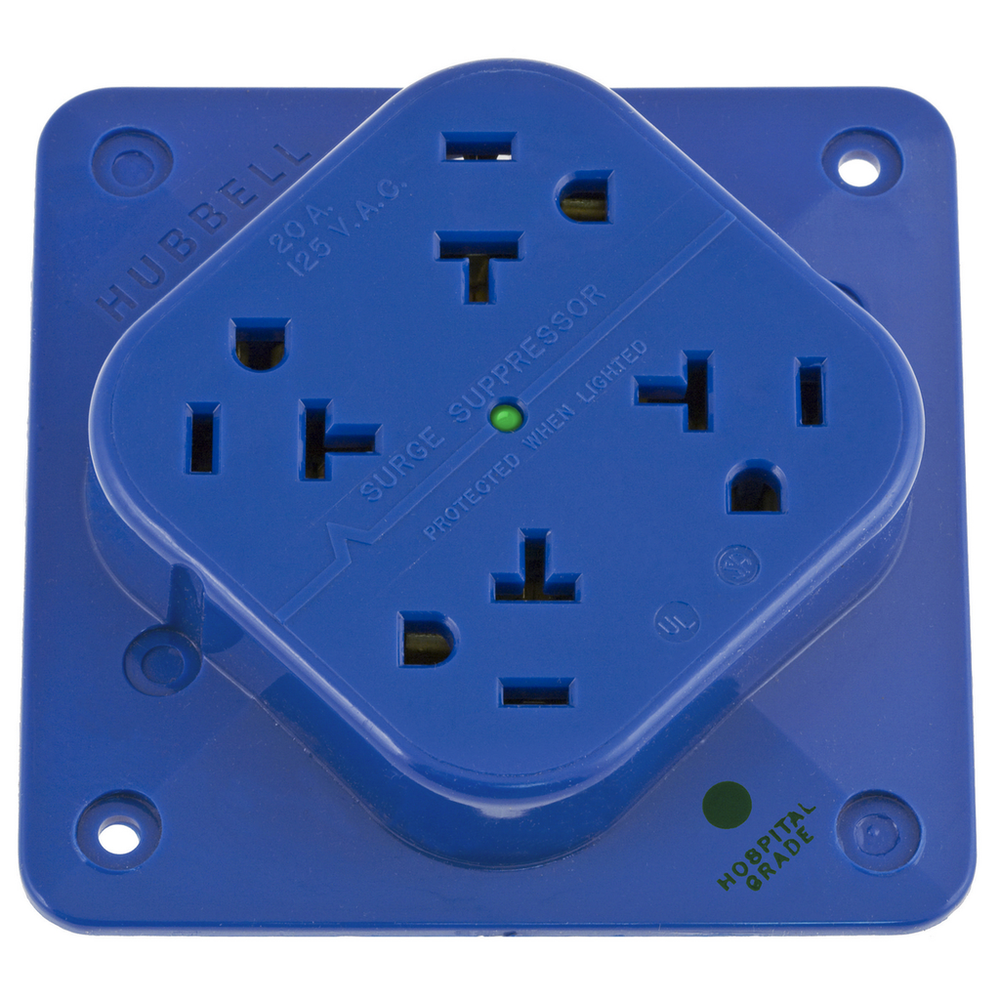

4-PLEX, Hospital Grade Surge Suppression Receptacle, 20A 125V, 5-20R, with Surge, Blue4-PLEX, Hospital Grade Surge Suppression Receptacle, 20A 125V, 5-20R, with Surge, Blue
Hubbell Wiring Device-Kellems HBL420HS is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Amperage Rating
- 20 A
- Application
- 4-Plex with LED
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x6.245x6.245 (in)
- Carton - Gross Weight per Pack
- 2.500 lb.
- Carton - Number of Sub Packs
- 5
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585017891
- Carton - Total Units
- 5 EA
- Case - Total Units
- 30 EA
- Case Weight
- 10.500 lb.
- Class Code
- A44
- Color
- Blue
- Connectivity
- Terminal Screws
- Country of Origin
- PR
- Current / Amperage Rating
- 20 A
- Current Rating
- 20 A
- Description - Invoice
- 4-PLEX HG SPD RCPT, 20A 125V, 5-20R, BL
- Display Size
- Standard
- Each - Pack Description
- Each
- Each - Width
- 4.420 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Frequency Rating
- 60 Hz
- Harmonization Code
- 8536308000
- Image Actual Or Representative
- A
- Indicator(s) Type
- LED Only
- Industry Standard(s)
- Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186
- Lowest Level UOM
- Each
- Material
- Composite
- Material - Mounting Hardware
- Mounting Screws
- MSDS Flag
- No
- Nema Rating
- 5-20R
- Operating Temperature
- 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
- Outlet
- Straight Blade
- Performance
- Electrical - Frequency - 60Hz;Electrical - Protection Modes - Normal and Common Modes;Electrical - Response Time - Approximately 5 ns;Electrical - Transient Suppression - Peak Energy (10 X 100 µs), Peak Current (8 X 20 µs);Electrical - Voltage - 20V AC + 10% - 15%;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - -40°F to 140°F (-40°C to 60°C)
- Phase
- Single Phase
- Replaced Catalog Number
- 420HS
- Response Time
- 5
- Series
- Hospital Grade
- Special Features
- Isolated Ground
- Standard
- Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186
- Sub Class Code
- A44A420
- Type
- 4-Plex
- Voltage Rating
- 125 V
- Voltage Rating Description
- 125 V
- Width
- 4.420 in
