Hubbell HBL3767
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

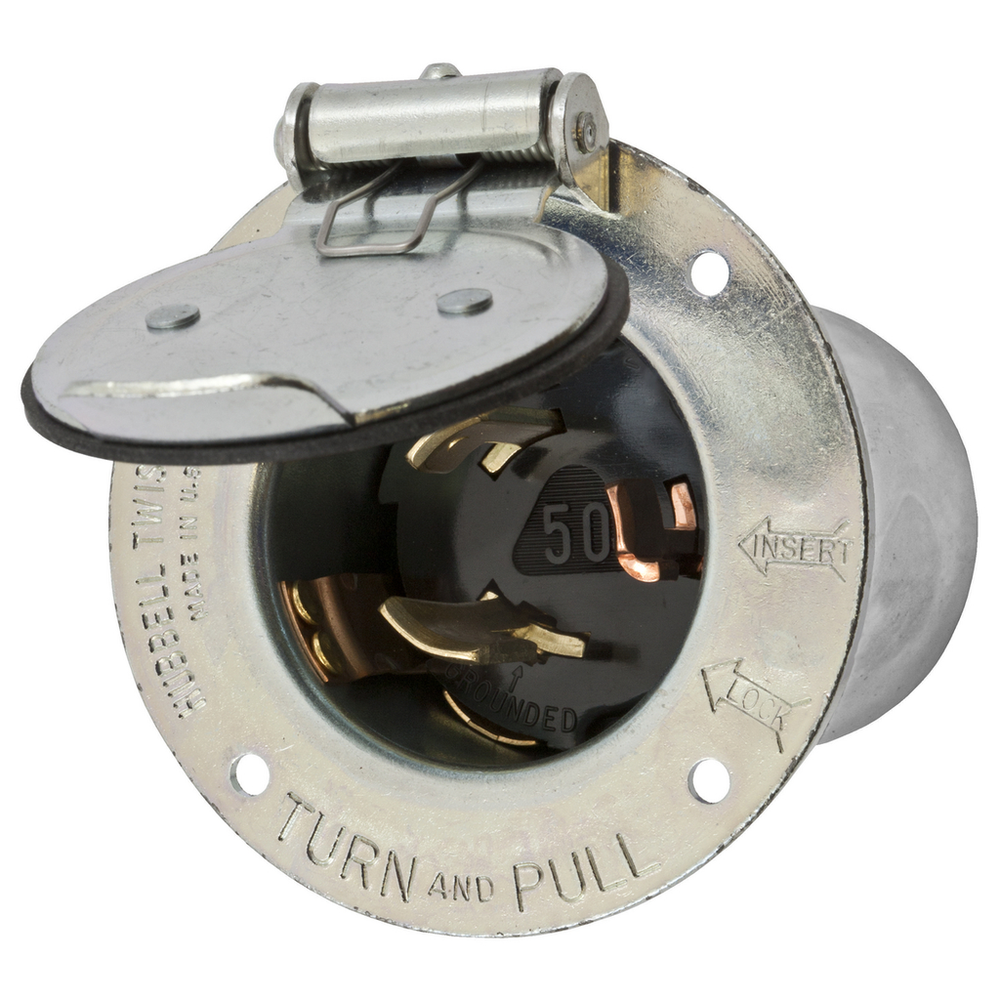

Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 50A 250V AC/600V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Zinc plated steel casing, thermoset interior with lift cover, MetallicLocking Devices, Twist-Lock®, Industrial, Flanged Inlet, 50A 250V AC/600V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Zinc plated steel casing, thermoset interior with lift cover, Metallic
Hubbell Wiring Device-Kellems HBL3767 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Amperage Rating
- 50 A
- Application
- Extra Heavy Duty Industrial
- Base Unit of Measure
- EA
- BOX SIZE
- 4.875x20.745x9.875 (in)
- Carton - Gross Weight per Pack
- 11.250 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585236445
- Carton - Total Units
- 10 EA
- Class Code
- A08
- Color
- Metallic
- Connectivity
- Pressure Terminal Screws
- Country of Origin
- PR
- Current / Amperage Rating
- 50 A
- Current Rating
- 50 A
- Description - Invoice
- LKG FLG INLT,50A 250VDC/600VAC,2P3W,COV
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 2.17 in x 3.50 in x 2.56 in
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 4.248 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Height
- 2.56 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Listed to UL 498
- Length
- 2.17 in
- Lowest Level UOM
- Each
- Material
- Steel, Zinc Plated
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Number of Poles
- 2-Pole
- Number Of Poles
- 2-Pole
- Number of Wires
- 3-Wire
- Number Of Wires
- 3-Wire
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V0;Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG- #6 AWG solid or stranded copper wire only
- Phase
- Three Phase
- Replaced Catalog Number
- 3767
- Size
- 2.17 in x 3.50 in x 2.56 in
- Special Features
- With Lift Cover
- Standard
- Certified to CSA C22.2 No.42;Listed to UL 498
- Sub Class Code
- A08A150
- Type
- Flanged Inlet
- Voltage Rating
- 250 VDC/600 VAC
- Voltage Rating Description
- 250 VDC/600 VAC
- Weight
- 1.05 lb.
- Width
- 4.248 in
- Wire Size
- #8 AWG to #4 AWG
