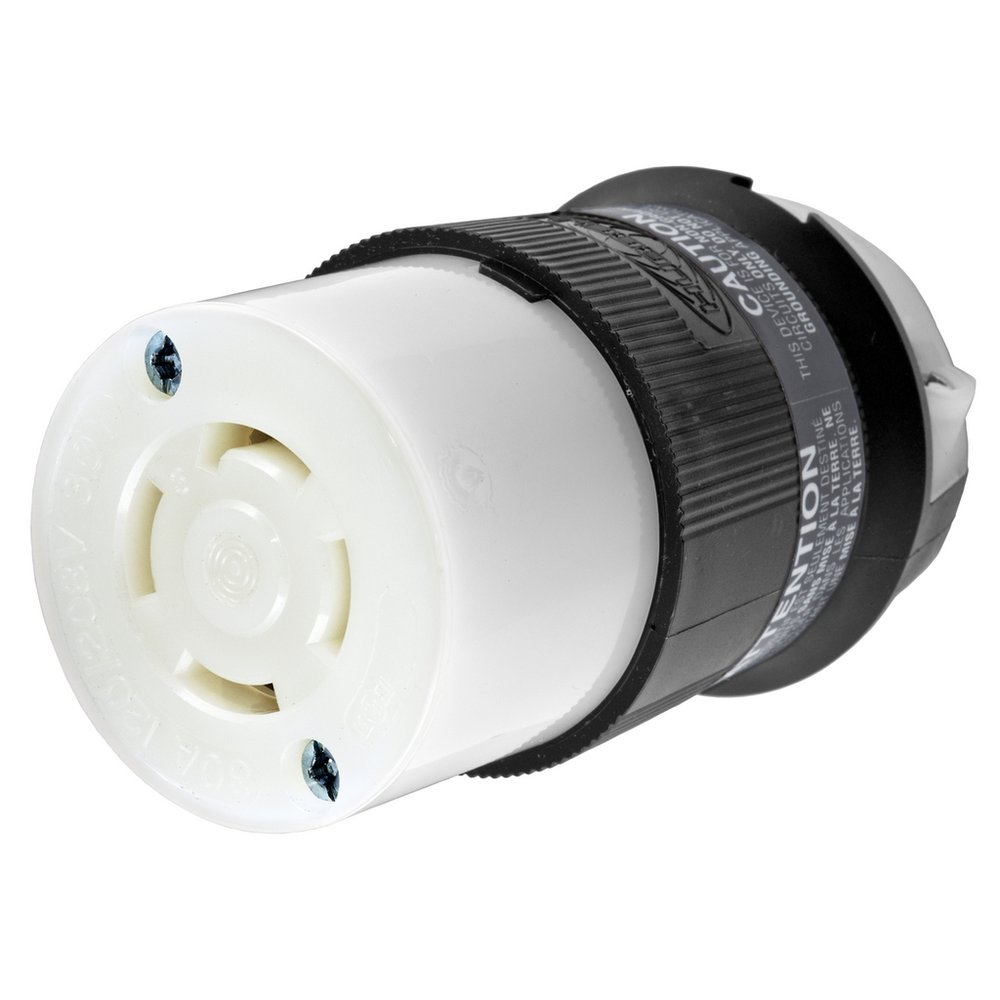

Hubbell HBL3433C





Description
Hubbell Wiring Device-Kellems HBL3433C is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Amperage Rating
- 30 A
- Application
- Heavy Duty Industrial
- Base Unit of Measure
- EA
- BOX SIZE
- 7.745x12.745x8.995 (in)
- Cable Range
- 0.350 - 1.150 in
- Carton - Gross Weight per Pack
- 13.950 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585039893
- Carton - Total Units
- 30 EA
- Class Code
- A08
- Color
- Black, White
- Connectivity
- Pressure Terminal Screws
- Cord Diameter
- 0.350-1.150 in
- Cord Range
- 0.350"-1.150" (9-29)
- Country of Origin
- PR
- Current / Amperage Rating
- 30 A
- Current Rating
- 30 A
- Description - Invoice
- LKG CONN, 30A 120/208V, 4P4W
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 2.33 in x 2.33 in x 3.86 in
- Display Size
- Standard
- Each - Pack Description
- Each
- Each - Width
- 2.418 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Height
- 3.86 in
- Image Actual Or Representative
- A
- Insulation
- Insulated Body
- Length
- 2.33 in
- Lowest Level UOM
- Each
- Material
- Nylon
- Material - Mounting Hardware
- Cord Mounted
- MSDS Flag
- No
- Nema Rating
- Non-NEMA
- NEMA Rating
- Non-NEMA
- Number of Poles
- 4-Pole
- Number Of Poles
- 4-Pole
- Number Of Wires
- 4-Wire
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Phase
- Three Phase
- Replaced Catalog Number
- 3433C
- Size
- 2.33 in x 2.33 in x 3.86 in
- Special Features
- Standard Product
- Sub Class Code
- A08A160
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Type
- Connector Body
- Voltage Rating
- 3 Phase WYE 120/208 VAC
- Voltage Rating Description
- 3 Phase WYE 120/208 VAC
- Weight
- 0.40 lb.
- Width
- 2.418 in
- Wire Size
- #16 AWG to #8 AWG
Williams Automation sells Hubbell parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
