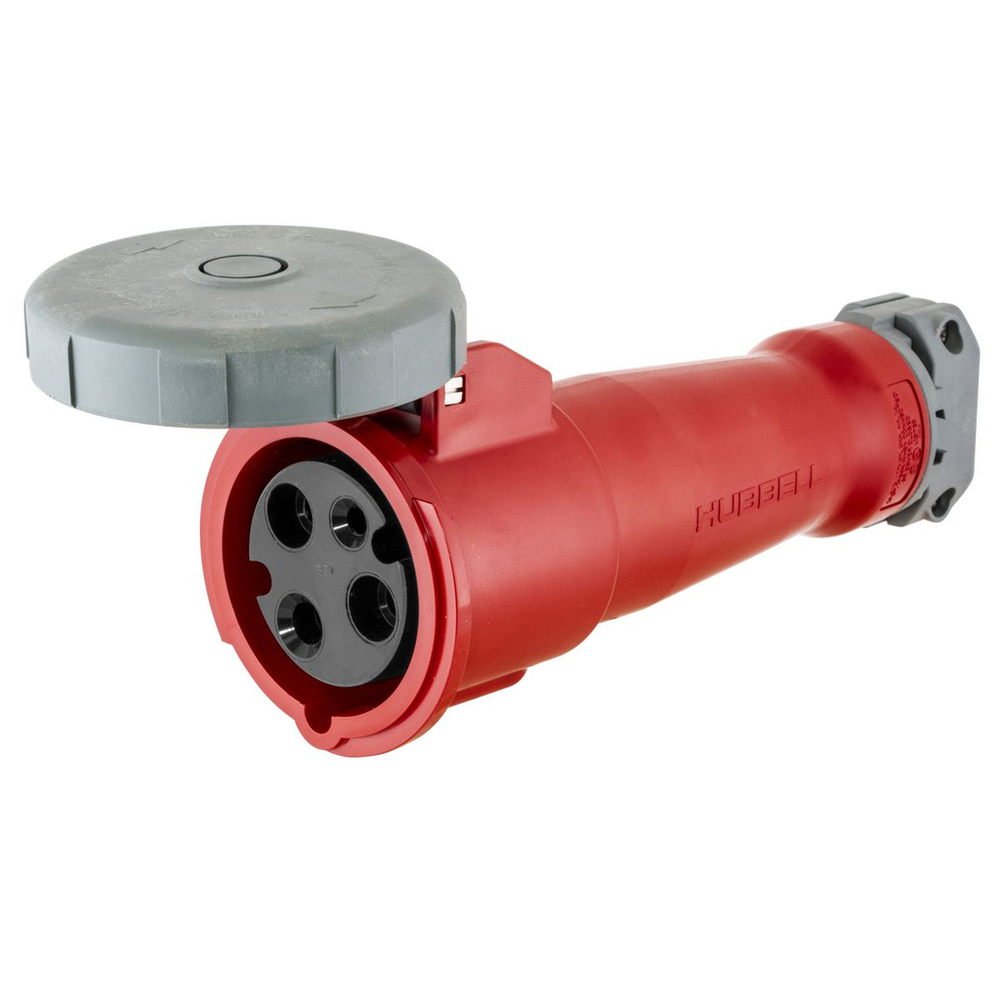

Hubbell HBL320C7W
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 20A 480V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Red, WatertightHeavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 20A 480V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Red, Watertight
Hubbell Wiring Device-Kellems HBL320C7W is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Amperage Rating
- 20 A
- Application
- High Ampacity Connections
- Base Unit of Measure
- EA
- BOX SIZE
- 9.755x23.125x9.505 (in)
- Carton - Gross Weight per Pack
- 12.550 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585403359
- Carton - Total Units
- 10 EA
- Class Code
- A12
- Color
- Red
- Conductor Range
- #14 AWG to #10 AWG
- Connectivity
- Pressure Terminal Screws
- Country of Origin
- PR
- Current / Amperage Rating
- 20 A
- Current Rating
- 20 A
- Description - Invoice
- PS, IEC, CONN, 2P3W, 20A 480V,4X/69K
- Display Size
- Standard
- Each - Pack Description
- Each
- Each - Width
- 4.300 in
- Environmental Conditions
- Watertight
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Image Actual Or Representative
- A
- Industry Standard(s)
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
- Insulation
- Insulated Body
- Lowest Level UOM
- Each
- Material - Mounting Hardware
- Cord Mounted
- MSDS Flag
- No
- Nema Rating
- Non-NEMA
- NEMA Rating
- Non-NEMA
- Number of Conductors
- 3-Wire Grounding
- Number Of Conductors
- 3-Wire Grounding
- Number of Poles
- 2-Pole
- Number Of Poles
- 2-Pole
- Number Of Wires
- 3-Wire
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682;Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
- Replaced Catalog Number
- 320C7W
- Series
- HBL Heavy Duty
- Special Features
- Watertight
- Standard
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
- Style
- Standard Service
- Sub Class Code
- A12A180
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Type
- Watertight Connector Body
- Voltage Rating
- 480 VAC
- Voltage Rating Description
- 480 VAC
- Width
- 4.300 in
