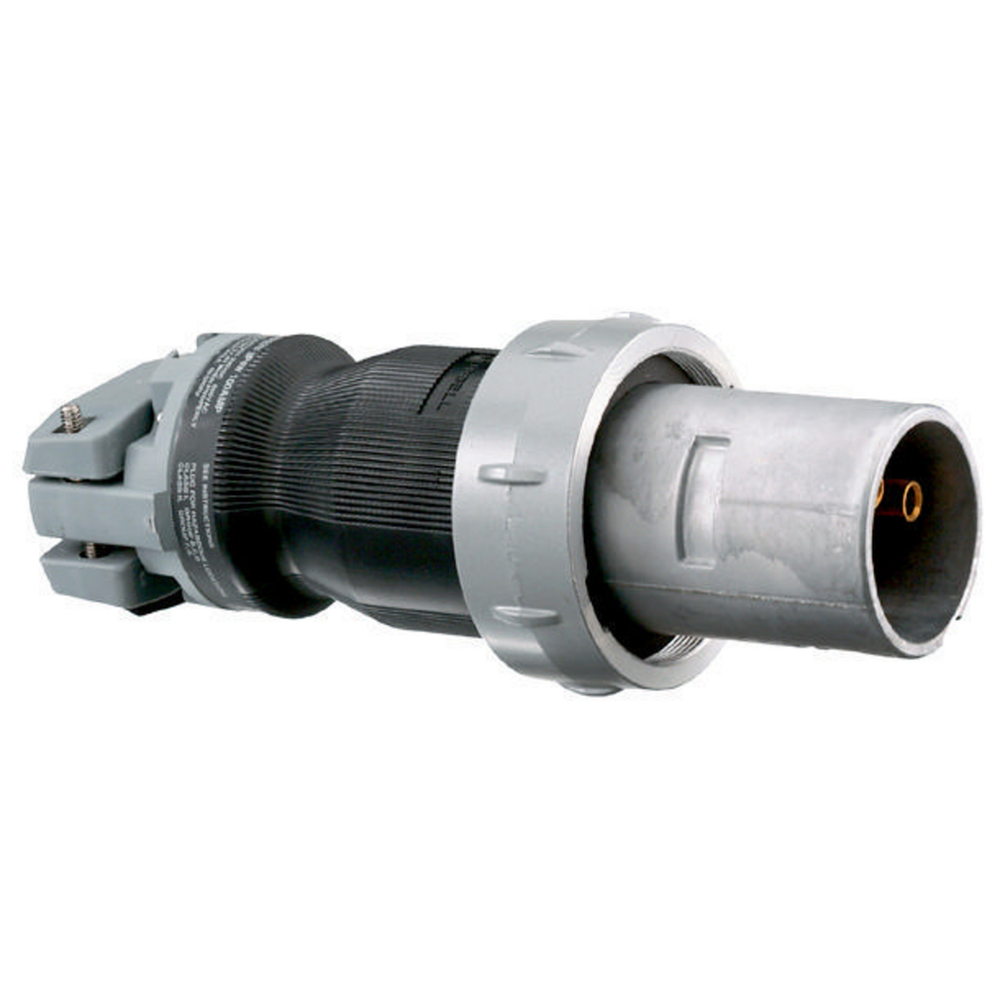

Hubbell HBL3200PS2W
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Male, Plug, 200A 600V AC, 2-Pole 3- Wire Grounding Style 2, Terminal Screws, Gray and Black, WatertightHeavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Male, Plug, 200A 600V AC, 2-Pole 3- Wire Grounding Style 2, Terminal Screws, Gray and Black, Watertight
Hubbell Wiring Device-Kellems HBL3200PS2W is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Amperage Rating
- 200 A
- Application
- Metallic with Nylon Shroud
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585011363
- Class Code
- A12
- Connectivity
- Pressure Terminal Screws
- Cord Type
- All Portable
- Country of Origin
- PR
- Current / Amperage Rating
- 200 A
- Current Rating
- 200 A
- Description - Invoice
- PS, INS, PLUG, 2P3W, 200A 600V, S2
- Display Size
- Standard Sized
- Each - Pack Description
- Each
- Each - Width
- 8.600 in
- Environmental Conditions
- Watertight
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Image Actual Or Representative
- A
- Industry Standard(s)
- CSA Certified to CSA Spec. C22.2 No. 159;UL Listed and CSA Certified Type 4X;UL Standard 1682,UL 50, and UL 1010
- Lowest Level UOM
- Each
- Material
- Composite
- Material - Mounting Hardware
- Cord Mounted
- MSDS Flag
- No
- Nema Rating
- Non-NEMA
- NEMA Rating
- Non-NEMA
- Number of Poles
- 2-Pole
- Number Of Poles
- 2-Pole
- Number of Wires
- 3-Wire
- Number Of Wires
- 3-Wire
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75°C;Min. -40°C w/o impact -25° with impact;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
- Series
- UL 1686 Class 1 Insulgrip®
- Special Features
- Watertight
- Standard
- CSA Certified to CSA Spec. C22.2 No. 159;UL Listed and CSA Certified Type 4X;UL Standard 1682,UL 50, and UL 1010
- Style
- Standard Service,Style 2 Grounding
- Sub Class Code
- A12A200
- Type
- Watertight Plug
- Voltage Rating
- 600 VAC/250 VDC
- Voltage Rating Description
- 600V AC/250V DC
- Width
- 8.600 in
- Wire Size
- #1 AWG to #250MCM
