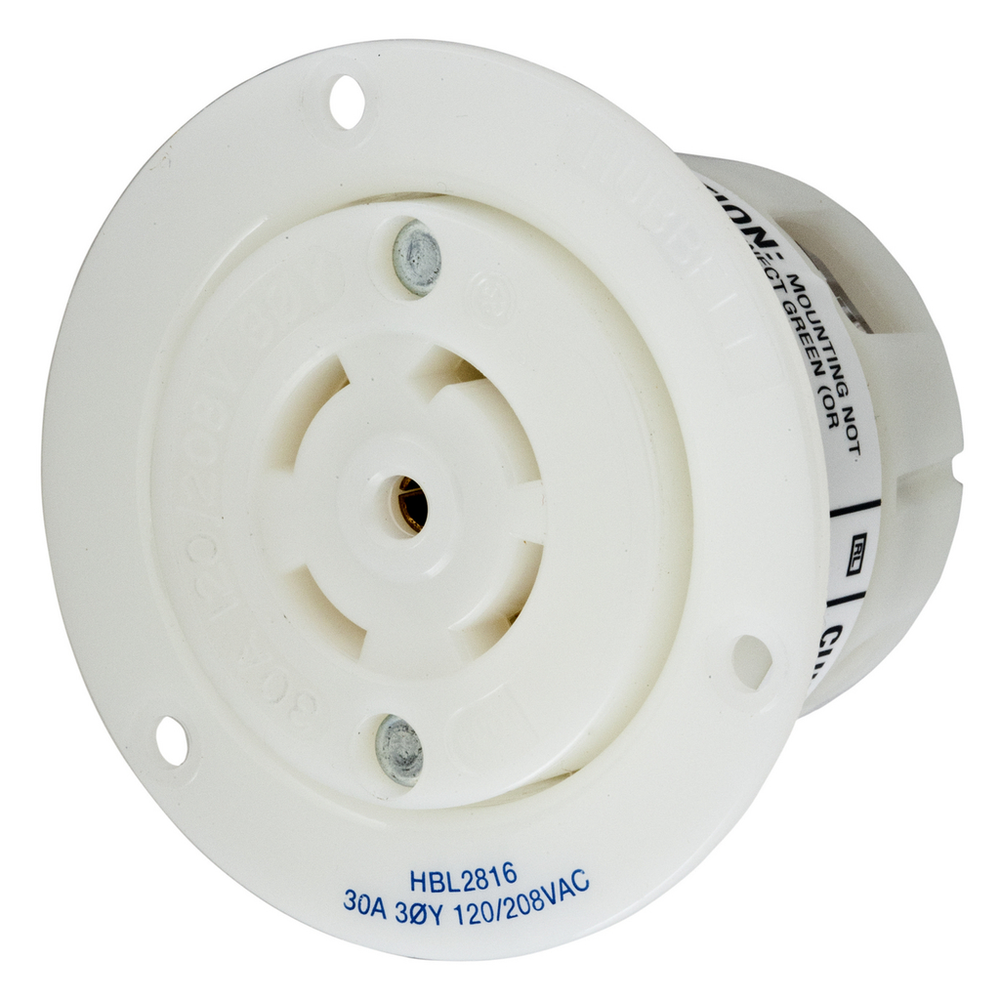

Hubbell HBL2816
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Locking Devices, Twist-Lock®, Insulgrip® Flanged Receptacle, 30A, 3 Phase Y 120/208V AC; 4 Pole, 5 Wire Grounding, NEMA L21-30R, Nylon casing, back wired, WhiteLocking Devices, Twist-Lock®, Industrial, Flanged Receptacle, 30A 3-Phase Wye120/208V AC, 4-Pole 5-Wire Grounding, L21-30R, Screw Terminal , White
Hubbell Wiring Device-Kellems HBL2816 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
- Listings
- UL 498;Fed.Spec. W-C-596;CSA C22.2 No.42
Specifications
- Amperage Rating
- 30 A
- Application
- Heavy Duty Industrial
- Base Unit of Measure
- EA
- BOX SIZE
- 6.245x10.375x8.245 (in)
- Carton - Gross Weight per Pack
- 4.250 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585039688
- Carton - Total Units
- 10 EA
- Class Code
- A08
- Color
- White
- Connectivity
- Back Wired Screw Terminals
- Country of Origin
- US
- Current / Amperage Rating
- 30 A
- Current Rating
- 30 A
- Description - Invoice
- LKG FLG-RCPT,30A 3P120/208V,L21-30R,WH
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 3.06 in x 3.06 in x 2.46 in
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 3.238 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Height
- 2.46 in
- Horsepower - Maximum
- 3
- Image Actual Or Representative
- A
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Length
- 3.06 in
- Lowest Level UOM
- Each
- Material
- Nylon
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Nema Rating
- L21-30R
- NEMA Rating
- L21-30R
- Number of Poles
- 4-Pole
- Number Of Poles
- 4-Pole
- Number of Wires
- 5-Wire Grounding
- Number Of Wires
- 5-Wire Grounding
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical-Current Interrupting - Certified at full rated current;Electrical - Dielectric Voltage -2,000V minimum;Mechanical - Terminal Accommodation - #16 - #8 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact)
- Phase
- 3 Phase WYE
- Replaced Catalog Number
- 2816
- Size
- 3.06 in x 3.06 in x 2.46 in
- Special Features
- Standard
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Sub Class Code
- A08A110
- Voltage Rating
- 120/208 VAC
- Weight
- 0.35 lb.
- Width
- 3.238 in
- Wire Size
- #16 AWG to #8 AWG
