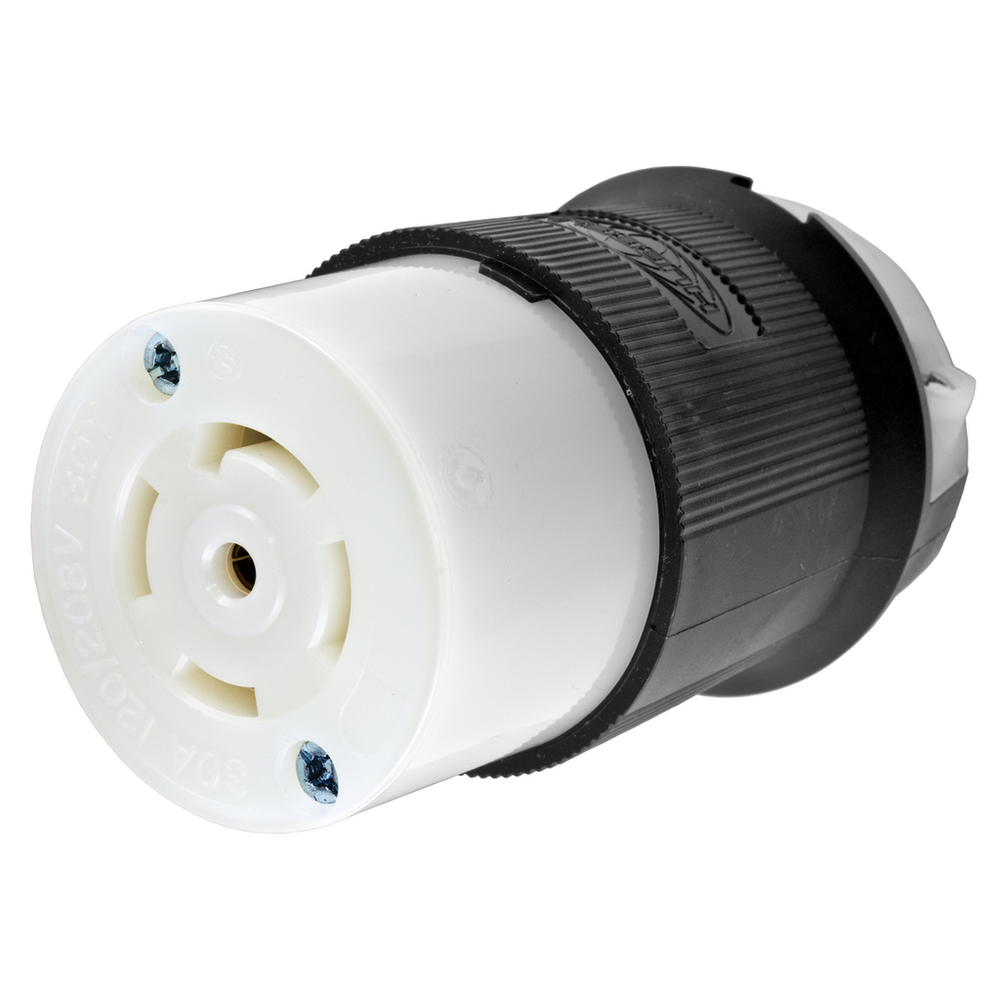

Hubbell HBL2813





Description
Hubbell Wiring Device-Kellems HBL2813 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
- Listings
- UL 498;Fed.Spec. W-C-596;CSA C22.2 No.42
Specifications
- Amperage Rating
- 30 A
- Application
- Heavy Duty Industrial
- Base Unit of Measure
- EA
- BOX SIZE
- 7.745x12.745x8.995 (in)
- Carton - Gross Weight per Pack
- 13.500 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585039657
- Carton - Total Units
- 30 EA
- Class Code
- A08
- Color
- Black, White
- Connectivity
- Pressure Terminal Screws
- Cord Range
- 0.350"-1.150" (9-29)
- Country of Origin
- US
- Current / Amperage Rating
- 30 A
- Current Rating
- 30 A
- Description - Invoice
- LKG CONN, 30A 3P 120/208V, L21-30R, B/W
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 2.33 in x 2.33 in x 3.86 in
- Display Size
- Standard
- Each - Pack Description
- Each
- Each - Width
- 2.418 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Height
- 3.86 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- Fed.Spec. W-C-596;Listed to UL 498;Certified to CSA, C22.2, No. 42
- Insulation
- Insulated Body
- Length
- 2.33 in
- Lowest Level UOM
- Each
- Material
- Nylon
- Material - Mounting Hardware
- Cord Mounted
- MSDS Flag
- No
- Nema Rating
- L21-30R
- NEMA Rating
- L21-30R
- Number of Poles
- 4-Pole
- Number Of Poles
- 4-Pole
- Number Of Wires
- 5-Wire Grounding
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical-Current Interrupting - Certified at full rated current;Electrical - Dielectric Voltage -2,000V minimum;Mechanical - Terminal Accommodation - #16 - #8 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.6;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact)
- Phase
- 3 Phase WYE
- Replaced Catalog Number
- 2813;2813CN;HBL2813CN
- Size
- 2.33 in x 2.33 in x 3.86 in
- Special Features
- Standard Product
- Standard
- Fed.Spec. W-C-596;Listed to UL 498;Certified to CSA, C22.2, No. 42
- Sub Class Code
- A08A110
- Voltage Rating
- 120/208 VAC
- Voltage Rating Description
- 120/208 VAC
- Weight
- 0.40 lb.
- Width
- 2.418 in
- Wire Size
- #16 AWG to #8 AWG
