Hubbell HBL2620
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

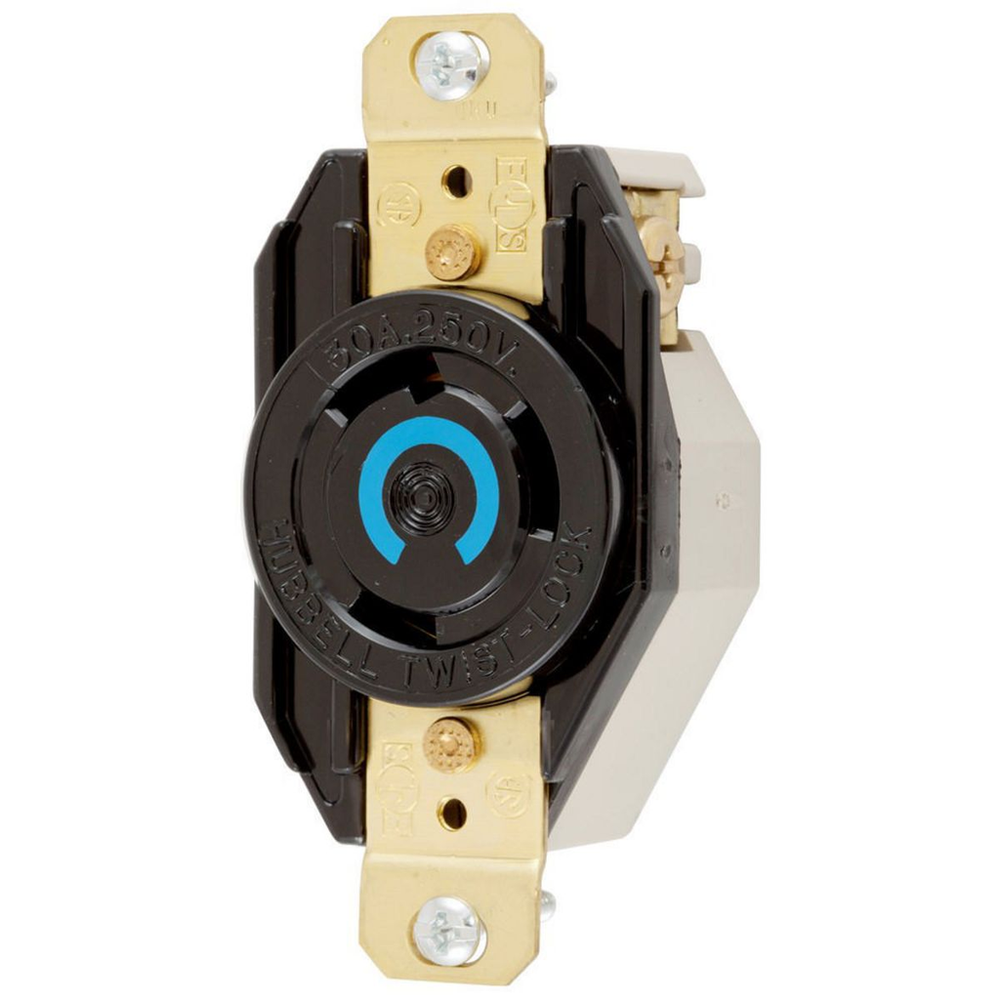

Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R, Screw Terminal, Black.Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R, Screw Terminal, Black
Hubbell Wiring Device-Kellems HBL2620 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Amperage Rating
- 30 A
- Application
- Heavy Duty Industrial
- Base Unit of Measure
- EA
- BOX SIZE
- 3.548x9.858x4.298 (in)
- Carton - Gross Weight per Pack
- 2.9 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585235998
- Carton - Total Units
- 10 EA
- Case - Total Units
- 30 EA
- Case Weight
- 7.500 lb.
- Class Code
- A08
- Connectivity
- Back and Side Wired Screw Terminals
- Country of Origin
- US
- Current / Amperage Rating
- 30 A
- Current Rating
- 30 A
- Description - Invoice
- LKG RCPT, 30A 250V, L6-30R, BK
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 3.28 in x 1.70 in x 1.31 in
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 1.900 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536698000
- Height
- 1.31 in
- Horsepower - Maximum
- 2
- Image Actual Or Representative
- A
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Length
- 3.28 in
- Lowest Level UOM
- Each
- Material
- Nylon
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Nema Rating
- L6-30R
- NEMA Rating
- L6-30R
- Number of Poles
- 2-Pole
- Number Of Poles
- 2-Pole
- Number of Wires
- 3-Wire
- Number Of Wires
- 3-Wire
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Pallet Height
- 42.000 in
- Pallet Length
- 47.500 in
- Pallet - Pack Description
- Pallet
- Pallet - Total Units
- 2160 EA
- Pallet Weight
- 752.000 lb.
- Pallet Width
- 37.000 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Phase
- Single Phase
- Replaced Catalog Number
- 2620A;2620ACN;HBL2620CN
- Size
- 3.28 in x 1.70 in x 1.31 in
- Special Features
- Standard
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Sub Class Code
- A08A110
- Type
- Single Flush Receptacle
- Voltage Rating
- 250 VAC
- Voltage Rating Description
- 250 VAC
- Weight
- 0.25 lb.
- Width
- 1.900 in
- Wire Size
- #16 AWG to #8 AWG
