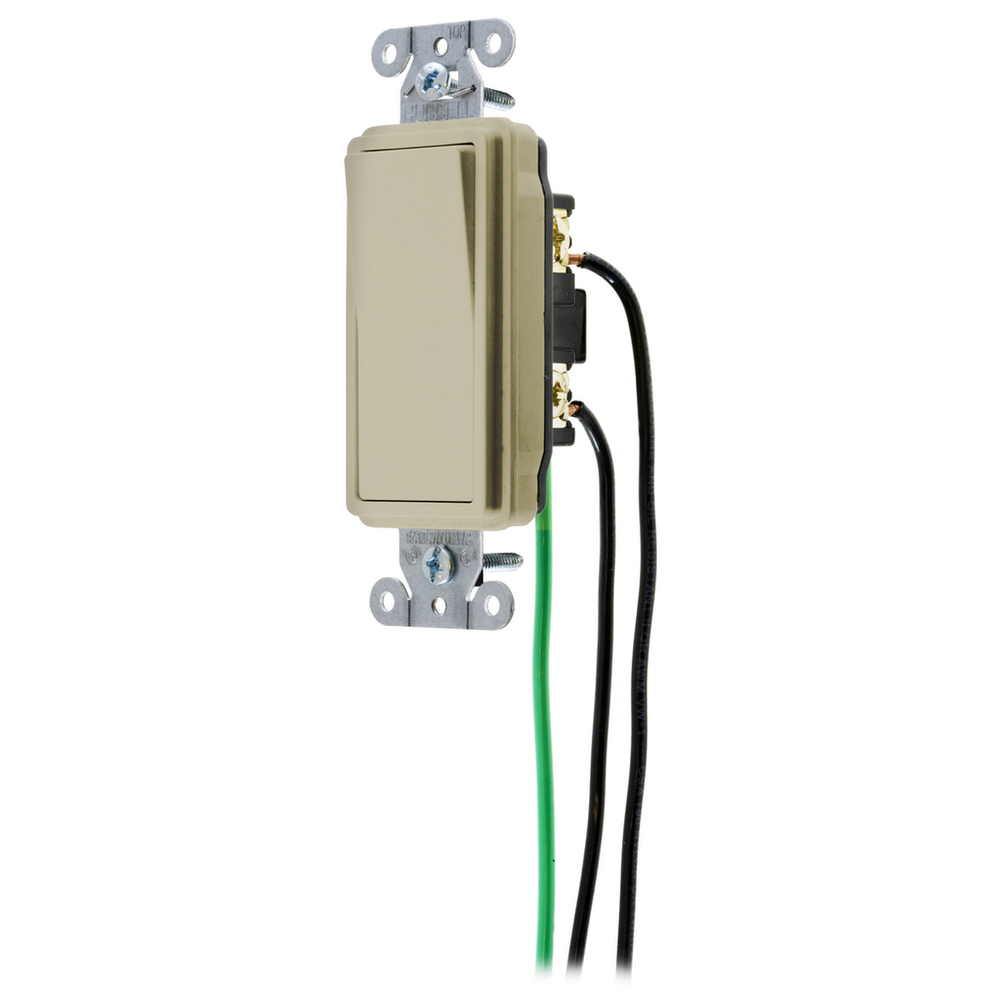

Hubbell DSL420I
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Switches and Lighting Controls, Spec Grade, Decorator Switches, General Purpose AC, Four Way, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, IvorySwitches and Lighting Controls, Spec Grade, Decorator Switches, General Purpose AC, Four Way, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Ivory
Hubbell Wiring Device-Kellems DSL420I is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Action
- DPDT
- Amperage Rating
- 20 A
- Application
- 8" #12 AWG THHN
- Base Unit of Measure
- EA
- BOX SIZE
- 5.600x18.200x15.000 (in)
- Carton - Gross Weight per Pack
- 15.1 lb.
- Carton - Number of Sub Packs
- 50
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585187136
- Carton - Total Units
- 50 EA
- Class Code
- A16
- Color
- Ivory
- Connectivity
- Pre-Wired
- Country of Origin
- CN
- Current / Amperage Rating
- 20 A
- Current Rating
- 20 A
- Description - Invoice
- SWITCH, DECO, 4W, 20A 120/277V, IV, WL
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Dimensions
- 4.12 in x 1.73 in x 1.61 in
- Each - Pack Description
- Each
- Each - Width
- 1.600 in
- Freight Class Code
- 06168002
- Harmonization Code
- 8536509040
- Height
- 1.61 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL Listed
- Length
- 4.12 in
- Lowest Level UOM
- Each
- Material
- Polycarbonate
- MSDS Flag
- No
- Number of Poles
- Double Pole
- Number Of Poles
- Double Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - 8" #12 AWG THHN
- Series
- General Purpose
- Size
- 4.12 in x 1.73 in x 1.61 in
- Standard
- UL Listed
- Style
- Four Way
- Sub Class Code
- A16A250
- Temperature Rise - Max.
- 30°C maximum at rated current
- Type
- Rocker/Decorator
- Voltage Rating
- 120-277 VAC
- Width
- 1.600 in
- Wire Size
- #12 AWG
