Hubbell DR15NLLA
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

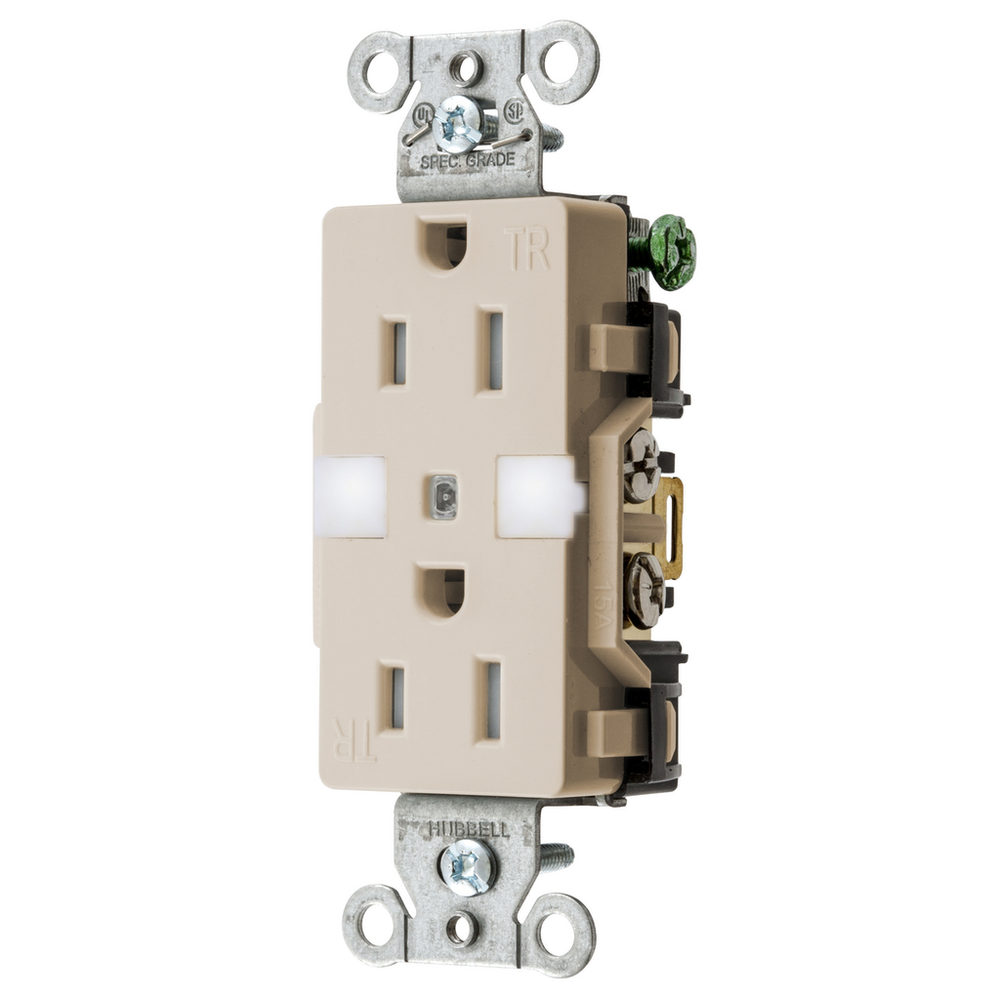

Straight Blade Devices, Receptacle, Tamper Resistant Decorator Duplex, Commercial Grade, 15A 125V, 2-Pole 3- Wire Grounding, 5-15R, With Night Light, Light Almond.Straight Blade Devices, Receptacle, Tamper Resistant Decorator Duplex, Commercial Grade, 15A 125V, 2-Pole 3- Wire Grounding, 5-15R, With Night Light, Light Almond
Hubbell Wiring Device-Kellems DR15NLLA is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Amperage Rating
- 15 A
- Application
- Commercial Specification Grade
- Base Unit of Measure
- EA
- BOX SIZE
- 3.548x9.858x4.298 (in)
- Carton - Gross Weight per Pack
- 2.250 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585541327
- Carton - Total Units
- 10 EA
- Class Code
- A04
- Color
- Light Almond
- Connectivity
- Back and Side Wired
- Country of Origin
- CN
- Current / Amperage Rating
- 15 A
- Current Rating
- 15 A
- Description - Invoice
- TAMP RES, DECO FACE, NL, 5-15R, LA
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 3.29 in x 1.15 in x 1.29 in
- Display Size
- Standard Sized Product
- Each - Width
- 1.910 in
- Freight Class Code
- 06168002
- Harmonization Code
- 8536698000
- Height
- 1.29 in
- Horsepower - Maximum
- 0.5
- Image Actual Or Representative
- A
- Industry Standard(s)
- Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Length
- 3.29 in
- Material
- Nylon
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Nema Rating
- 5-15R
- NEMA Rating
- 5-15R
- Number of Poles
- 2-Pole
- Number Of Poles
- 2-Pole
- Number of Wires
- 3-Wire
- Number Of Wires
- 3-Wire
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Color Temperature - 3400K - 3600K;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Electrical - LED Energy Consumed - 0.5 watt;Electrical - Light Output - 0.5 Lumens;Electrical - Rating - 15A, 125VAC Only;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Series
- Commercial Specification Grade
- Size
- 3.29 in x 1.15 in x 1.29 in
- Special Features
- Tamper Resistant
- Standard
- Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Style
- Style Line Decorator
- Sub Class Code
- A04A060
- Type
- Nightlight
- Voltage Rating
- 125 V
- Voltage Rating Description
- 125 V
- Wattage
- 1875 W
- Weight
- 0.2 lb.
- Width
- 1.910 in
- Wire Size
- #14 AWG to #10 AWG
