Hubbell CU300HD
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Switches and Lighting Control, Occupancy Sensor, Control Unit, 120/277V AC, Heavy Duty Relay, LatchingSwitches and Lighting Control, Occupancy Sensor, Control Unit, 120/277V AC, Heavy Duty Relay, Latching

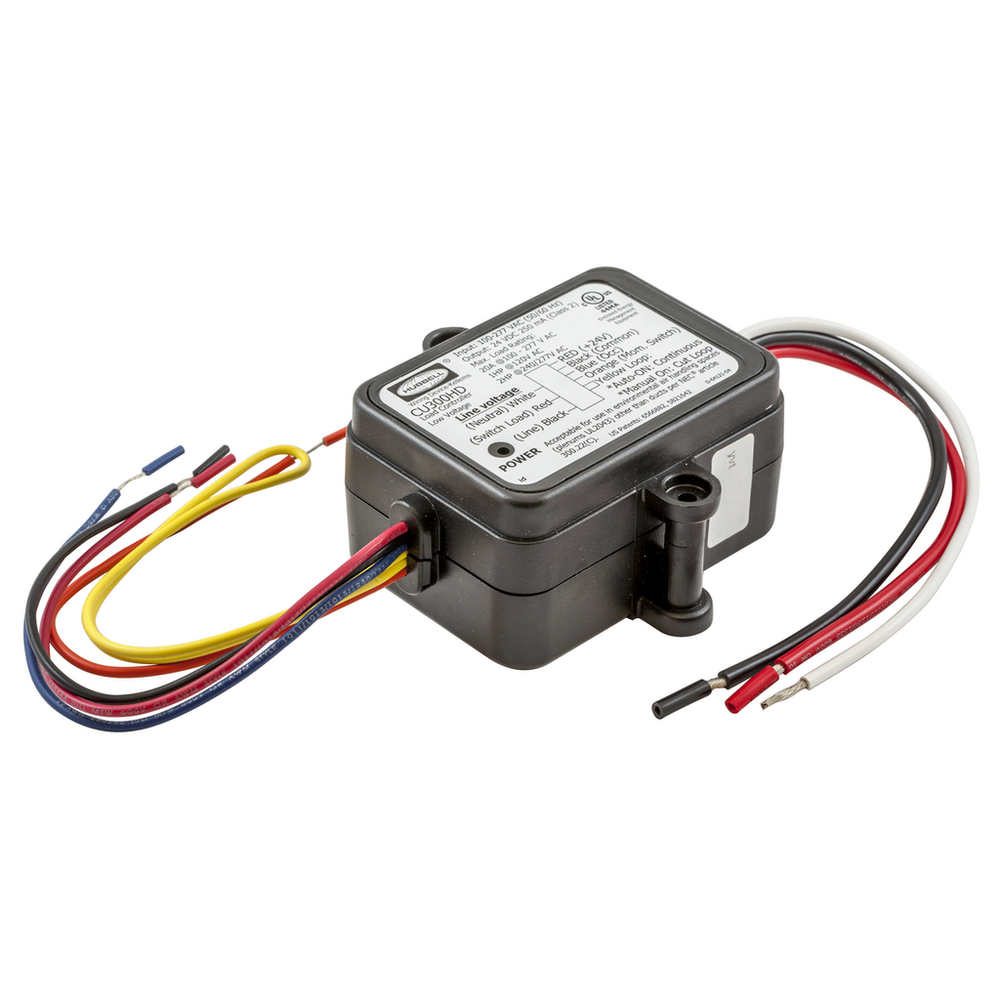

Hubbell Wiring Device-Kellems CU300HD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Base Unit of Measure
- EA
- BOX SIZE
- 6.000x14.000x10.000 (in)
- Carton - Gross Weight per Pack
- 5.000 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585256207
- Carton - Total Units
- 10 EA
- Class Code
- A48
- Color
- Black
- Country of Origin
- CN
- Description - Invoice
- CTRL UNIT,120-277V,20A,1 HD RLY,LATCHING
- Dimensions
- 4 in x 3.4 in x 1.73 in
- Each - Pack Description
- Each
- Each - Width
- 4.200 in
- Freight Class Code
- 06168002
- Frequency Rating
- 50/60 Hz
- Harmonization Code
- 8536490075
- Height
- 1.73 in
- Humidity
- 0% to 95% non-condensing relative humidity
- Image Actual Or Representative
- A
- Industry Standard(s)
- ASHRAE 90.1 Compliant;UL2043 Plenum Rated Per NEC® 2014 300.22(C)(3)
- Length
- 4 in
- Lowest Level UOM
- Each
- Material
- Thermoplastic
- MSDS Flag
- No
- Operating Temperature
- 32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
- Performance
- Electrical - AT Sensor/AAR Capacity - 1 to 6 combined;Electrical - Load Capacity - 20A 100-277V, 1HP @ 120V AC, 2HP @ 240/277V;Electrical - Motor Loads - 1HP @ 120V, 2HP @ 240/277V;Electrical - Power Output - 24V DC 250mA;Electrical - Power Supply - 100-277V AC, 50/60 Hz;Electrical - Relay - Heavy duty, magnetic latching. Silver alloy contacts. Very low standby power consumption;Environmental - Flammability - UL 94-5VA;Environmental - Operating Temperatures - -40°F (-40 °C) to 149°F(65 °C). Below 32°F (0°C) must use suitably rated non-metallic enclosure. 0% to 90% humidity, non-condensing.
- Series
- Dual;Ultrasonic;Passive Infrared;Wall Mount;Ceiling Mount;High/Low Bay PIR;Control Units
- Size
- 4 in x 3.4 in x 1.73 in
- Standard
- ASHRAE 90.1 Compliant;UL2043 Plenum Rated Per NEC® 2014 300.22(C)(3)
- Storage Temperature Range
- -20°F to 150°F (-29°C to 65°C)
- Style
- Control Units;Wired
- Sub Class Code
- A48A450
- Type
- Accessories
- Voltage Rating
- 24 VDC
- Voltage Rating Description
- 24V DC
- Width
- 4.200 in
