Description

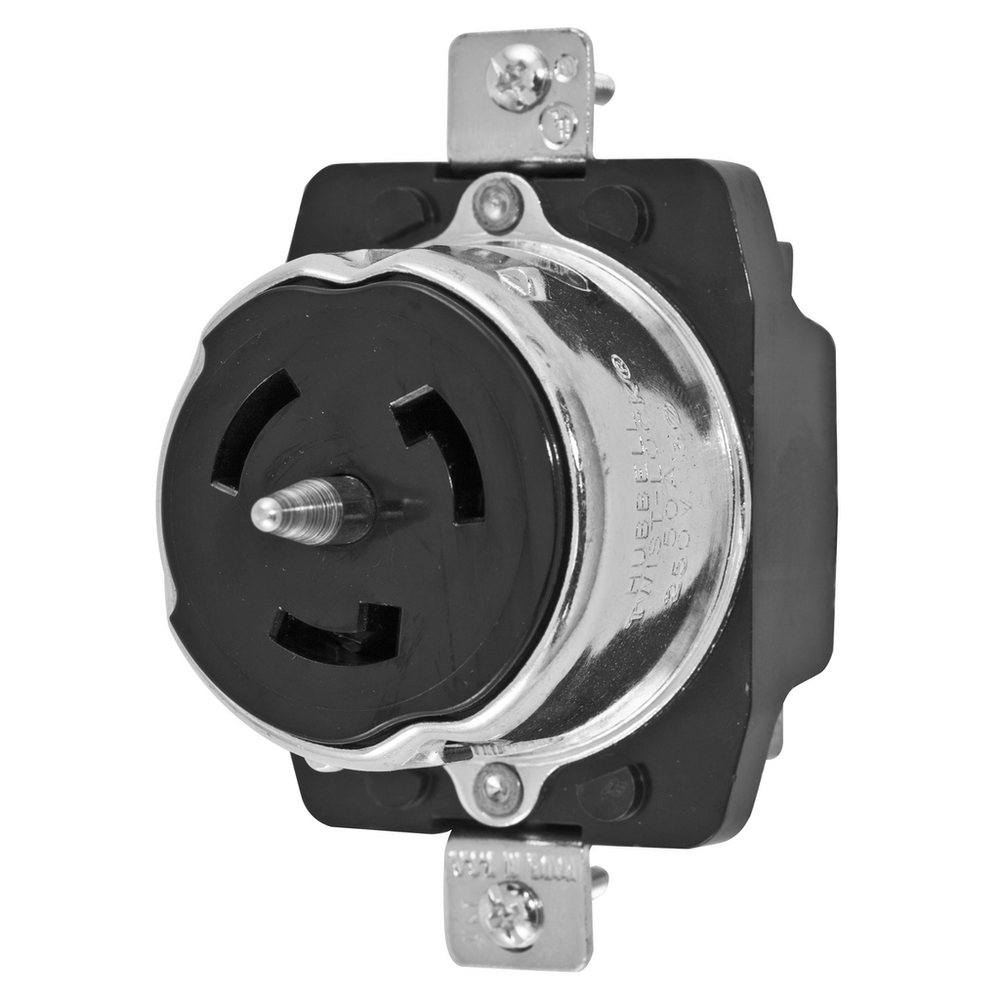

Locking Devices, Twist-Lock®, Industrial, Receptacle, 50A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, BlackLocking Devices, Twist-Lock®, Industrial, Receptacle, 50A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black
Hubbell Wiring Device-Kellems CS8369 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Amperage Rating
- 50 A
- Application
- Heavy Duty Industrial
- Base Unit of Measure
- EA
- BOX SIZE
- 5.625x10.495x8.875 (in)
- Carton - Gross Weight per Pack
- 8.150 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585829074
- Carton - Total Units
- 10 EA
- Class Code
- A08
- Connectivity
- Screw Terminals
- Country of Origin
- PR
- Current / Amperage Rating
- 50 A
- Current Rating
- 50 A
- Description - Invoice
- LOCKING RCPT, 50A 3PH 250V, 3P4W
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 2.69 in x 2.12 in x 2.36 in
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 3.238 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Height
- 2.36 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Listed to UL 498
- Length
- 2.69 in
- Lowest Level UOM
- Each
- Material
- Phenolic
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Number of Poles
- 3-Pole
- Number Of Poles
- 3-Pole
- Number of Wires
- 4-Wire
- Number Of Wires
- 4-Wire
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V0;Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG- #6 AWG solid or stranded copper wire only
- Phase
- Three Phase
- Size
- 2.69 in x 2.12 in x 2.36 in
- Special Features
- Standard Product
- Standard
- Certified to CSA C22.2 No.42;Listed to UL 498
- Sub Class Code
- A08A150
- Type
- Receptacle
- Voltage Rating
- 3-PhaseDelta 250 VAC
- Voltage Rating Description
- 3-Phase Delta 250 VAC
- Weight
- 0.75 lb.
- Width
- 3.238 in
- Wire Size
- #10 AWG to #6 AWG
