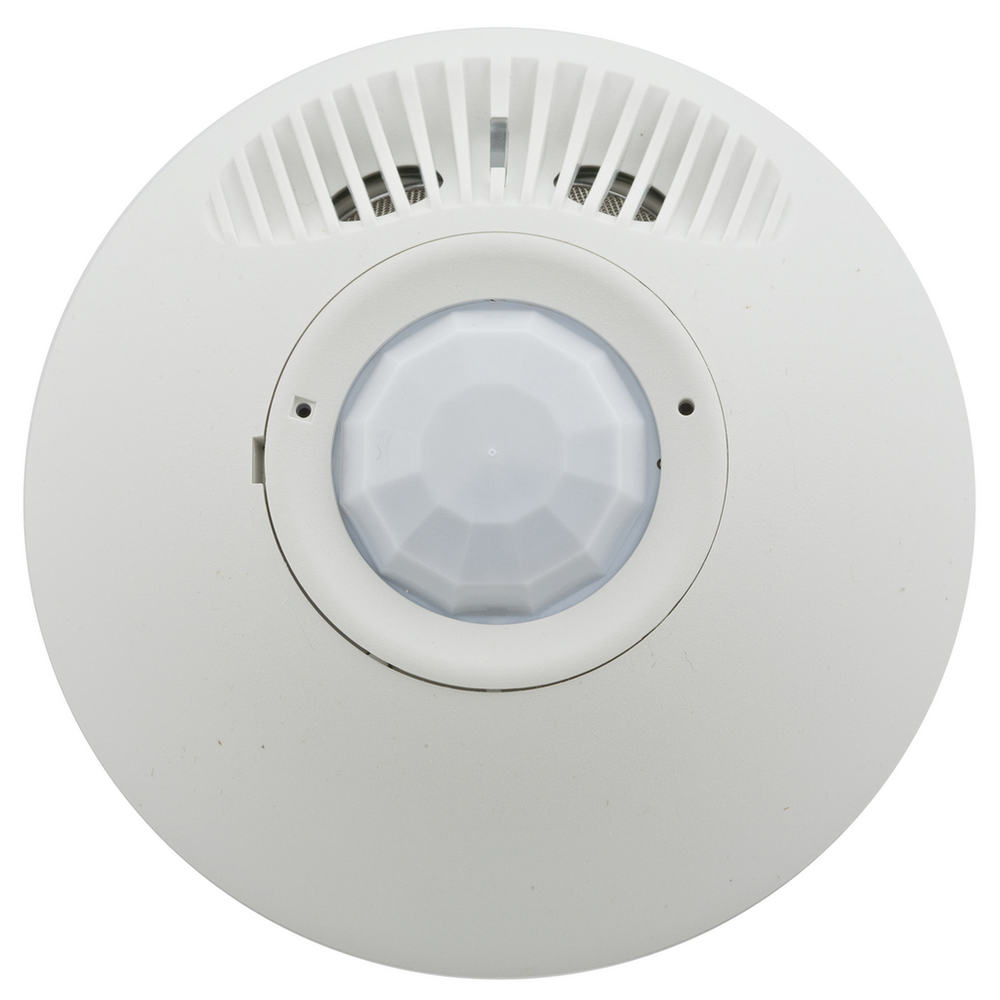

Hubbell ATD1000CRP
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Switches and Lighting Controls, Occupancy Sensors, Adaptive Dual-Technology Ceiling Sensor, 1000 Square Feet Coverage, With RelaySwitches and Lighting Controls, Occupancy Sensors, Adaptive Dual-Technology Ceiling Sensor, 1000 Square Feet Coverage, With Relay
Hubbell Wiring Device-Kellems ATD1000CRP is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Application
- Compatible with most LED and CFL
- Base Unit of Measure
- EA
- BOX SIZE
- 7.700x18.300x12.000 (in)
- Carton - Gross Weight per Pack
- 7.5 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585392417
- Carton - Total Units
- 10 EA
- Class Code
- A48
- Color
- White
- Country of Origin
- CN
- Coverage
- 1000 ft²
- Description - Invoice
- ADT OCCSENS, CLG MT, 1000 SQ FT W/R
- Diameter
- 4.5 in
- Each - Pack Description
- Each
- Each - Width
- 5.700 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8543704500
- Height
- 1.5 in
- Humidity
- 0% to 95% non-condensing relative humidity
- Image Actual Or Representative
- A
- Indicator(s) Type
- PIR= Red LED, Ultrasonic= Green LED
- Industry Standard(s)
- ASHRAE 90.1 Compliant;cULus Listed To UL244A
- Load
- Load Is A Function Of The Control Unit
- Load Capacity
- Load Is A Function Of The Control Unit
- Lowest Level UOM
- Each
- Material
- ABS (Acrylonitrile butance styrene - Thermoplastic polymer)
- Material - Mounting Hardware
- Screw Mounting
- Mounting
- Ceiling Mount
- Mounting Height
- 8-12 ft
- Mounting Type
- Ceiling Mount
- MSDS Flag
- No
- Operating Cycles
- 6,000 Cycles Minimum
- Operating Temperature
- 32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
- Pallet Height
- 53.900 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 294.000 lb.
- Pallet Width
- 48.000 in
- Performance
- Controls - Ambient Light - 1 to 1000 foot candles;Controls - Sensitivity - Adaptive 0 to 100%;Controls - Time Delay - Test (8 seconds), adaptive 8 to 40 minutes;Electrical - Isolated Relay - Normally open and normally closed terminals available;Electrical - Power Requirements - 24V DC nominal, 33mA from Hubbell CU series control unit;Environmental - Operating Temperature - 32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F (11°C) per hour;Environmental - Storage Temperature - -20°F to 150°F (-29°C to 65°C), 0% to 95% non-condensing relative humidity;Sensing Indicators - Passive Infrared - Red LED;Sensing Indicators - Ultrasonic - Green LED
- Photocell
- Yes
- Replaced Catalog Number
- ATD1000C;ATD500C;ATD500CRP
- Sensitivity
- Adaptive 0 to 100%
- Series
- Dual;Accessories
- Special Features
- With Photocell and Relay
- Standard
- ASHRAE 90.1 Compliant;cULus Listed To UL244A
- Storage Temperature Range
- -20°F to 150°F (-29°C to 65°C)
- Style
- Ceiling Mount;Sensing Devices
- Sub Class Code
- A48A450
- Supply Voltage
- 24V DC From Control Unit
- Target Size
- People in
- Type
- Sensors
- Voltage Rating
- 24 VDC
- Voltage Rating Description
- 24V DC
- Width
- 5.700 in
