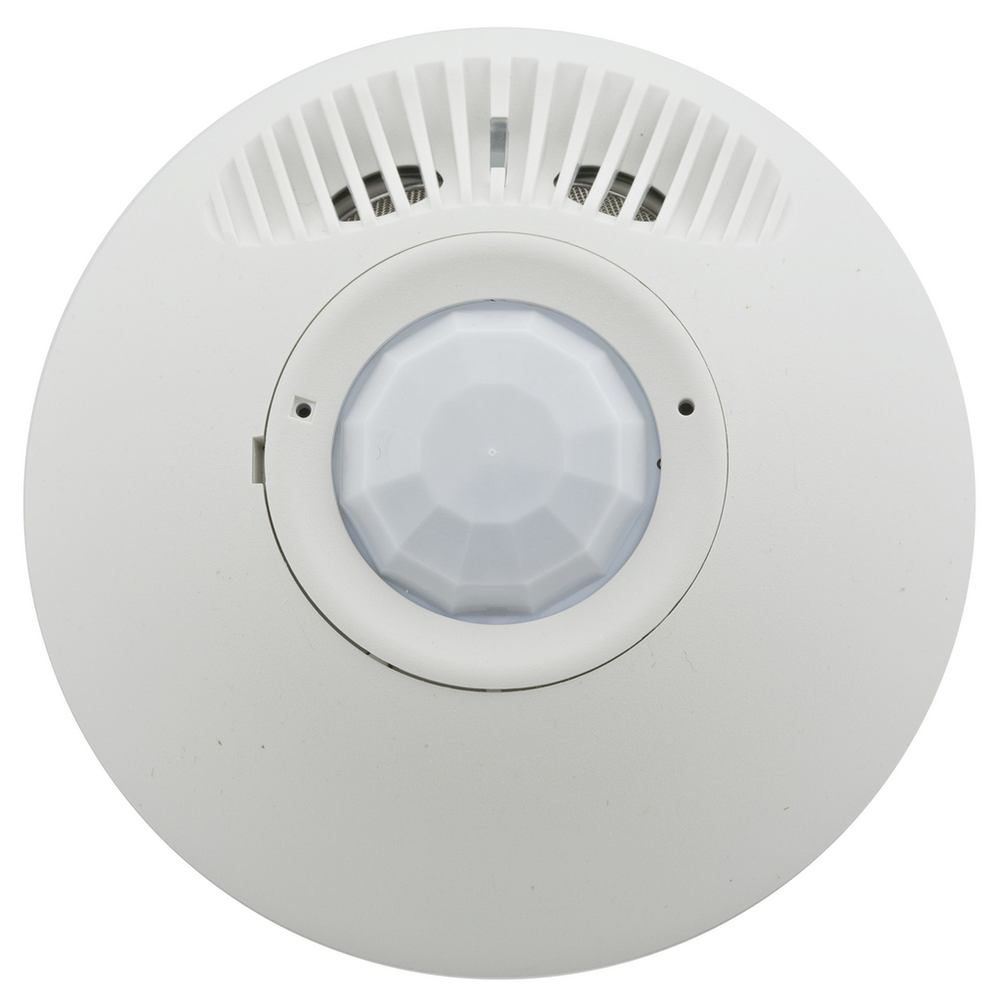

Hubbell ATD1000CL
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Switches and Lighting Control, H-MOSS, Occupancy Sensor, Adaptive Dual Tech, Ceiling Mount, 1000 Square Feet, 120V AC, With RelaySwitches and Lighting Control, H-MOSS, Occupancy Sensor, Adaptive Dual Tech, Ceiling Mount, 1000 Square Feet, 120V AC, With Relay
Hubbell Wiring Device-Kellems ATD1000CL is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Amperage Rating
- 20 A
- Application
- Compatible with most LED and CFL
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585256894
- Class Code
- A48
- Color
- White
- Country of Origin
- CN
- Coverage
- 1000 ft²
- Current / Amperage Rating
- 20 A
- Current Rating
- 20 A
- Description - Invoice
- OCCSENS,DT,CLNG,LN,VOLTAGE,1000 SQ FT
- Diameter
- 4.5 in
- Each - Pack Description
- Each
- Each - Width
- 5.000 in
- Freight Class Code
- 06168002
- Frequency Rating
- 50/60 Hz
- Harmonization Code
- 8536507000
- Height
- 3.4 in
- Humidity
- 0% to 95% non-condensing relative humidity
- Image Actual Or Representative
- A
- Indicator(s) Type
- PIR= Red LED, Ultrasonic= Green LED
- Industry Standard(s)
- ASHRAE 90.1 Compliant;cULus Listed To UL244A
- Lowest Level UOM
- Each
- Material
- ABS (Acrylonitrile butance styrene - Thermoplastic polymer)
- Mounting
- Ceiling Mount
- Mounting Height
- 8-12 ft
- Mounting Type
- Ceiling Mount
- MSDS Flag
- No
- Operating Temperature
- 32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F(11°C) per hour
- Performance
- Controls - Ambient Light - 1 to 1000 foot candles;Controls - Sensitivity - Adaptive 0 to 100%;Controls - Time Delay - Test (8 seconds), adaptive 8 to 40 minutes;Electrical - Load Rating - 20A 120 VAC Incandescent, 20A 120 or 277 VAC Magnetic Ballast, 16A 120 or 277 VAC Electronic Ballast, 1HP 120 VAC Motor Load, 3/4HP 277 VAC Motor Load;Electrical - Power Supply - 120-277V AC, 50/60Hz Single Phase;Environmental - Operating Temperature - 32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F (11°C) per hour;Environmental - Storage Temperature - -20°F to 150°F (-29°C to 65°C), 0% to 95% non-condensing relative humidity;Sensing Indicators - Passive Infrared - Red LED;Sensing Indicators - Ultrasonic - Green LED
- Sensitivity
- Adaptive 0 to 100%
- Series
- Dual
- Standard
- ASHRAE 90.1 Compliant;cULus Listed To UL244A
- Storage Temperature Range
- -20°F to 150°F (-29°C to 65°C)
- Style
- Ceiling Mount
- Sub Class Code
- A48A450
- Supply Voltage
- 120-277V AC
- Type
- Sensors
- Voltage Rating
- 120-277 VAC
- Voltage Rating Description
- 120/277V AC
- Width
- 5.000 in
