Hubbell AAR
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Switches and Lighting Controls, H-Moss System, Additional Switching Capacity, Add-A-Relay, 120/277V ACSwitches and Lighting Controls, H-Moss System, Additional Switching Capacity, Add-A-Relay, 120/277V AC

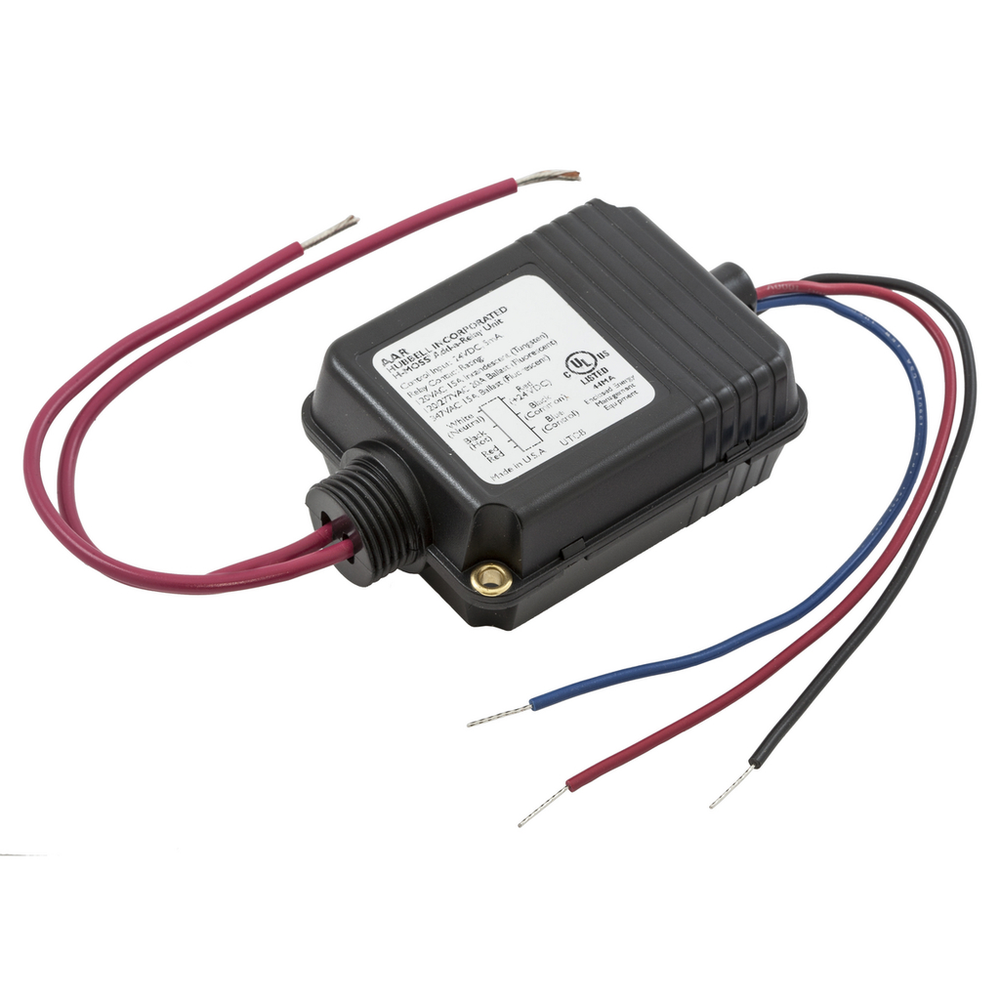

Hubbell Wiring Device-Kellems AAR is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Base Unit of Measure
- EA
- BOX SIZE
- 7.700x18.200x12.200 (in)
- Carton - Gross Weight per Pack
- 6.65 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585392653
- Carton - Total Units
- 10 EA
- Class Code
- A48
- Color
- Black
- Control Output
- Relay Contacts
- Country of Origin
- CN
- Description - Invoice
- ADD-A-RELAY
- Dimensions
- 3.69 in x 2.33 in x 1.36 in
- Each - Pack Description
- Each
- Each - Width
- 5.500 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536490075
- Height
- 1.36 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- ASHRAE 90.1 Compliant;cULus Listed To UL916
- Length
- 3.69 in
- Load
- Incandescent- 0 to 1800 Watts120V Ballast- 0 to 2400 Watts230V Ballast- 0 to 3680 Watts277V Ballast- 0 to 5540 Watts347V Ballast- 0 to 5205 Watts
- Load Capacity
- Incandescent- 0 to 1800 Watts120V Ballast- 0 to 2400 Watts230V Ballast- 0 to 3680 Watts277V Ballast- 0 to 5540 Watts347V Ballast- 0 to 5205 Watts
- Lowest Level UOM
- Each
- Material
- Thermoplastic
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Operating Cycles
- 6,000 Cycles Minimum
- Operating Temperature
- 32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
- Performance
- Electrical - Load Capacity - Incandescent-0 to 1800 watts, 120V Ballast- 0 to 2400 watts, 230V Ballast- 0 to 3680 watts, 277V Ballast- 0 to 5540 watts, 347V Ballast- 0 to 5205 watts;Electrical - Power Input - 24V DC nominal, 33mA from Hubbell CU series control unit;Environmental - Operating Temperature - 32°F to 104°F (0°C to 40°C), 0% to 90% non condensing relative humidity;Environmental - Storage Temperature - -20°F to 150°F (-29°C to 65°C), 0% to 90% non condensing relative humidity
- Replaced Catalog Number
- MPSA
- Series
- Dual;Ultrasonic;Passive Infrared
- Size
- 3.69 in x 2.33 in x 1.36 in
- Special Features
- Add-a-Relay
- Standard
- ASHRAE 90.1 Compliant;cULus Listed To UL916
- Style
- Relays
- Sub Class Code
- A48A450
- Type
- Accessories
- Voltage Rating
- 24 VDC
- Voltage Rating Description
- 24V DC
- Width
- 5.500 in
