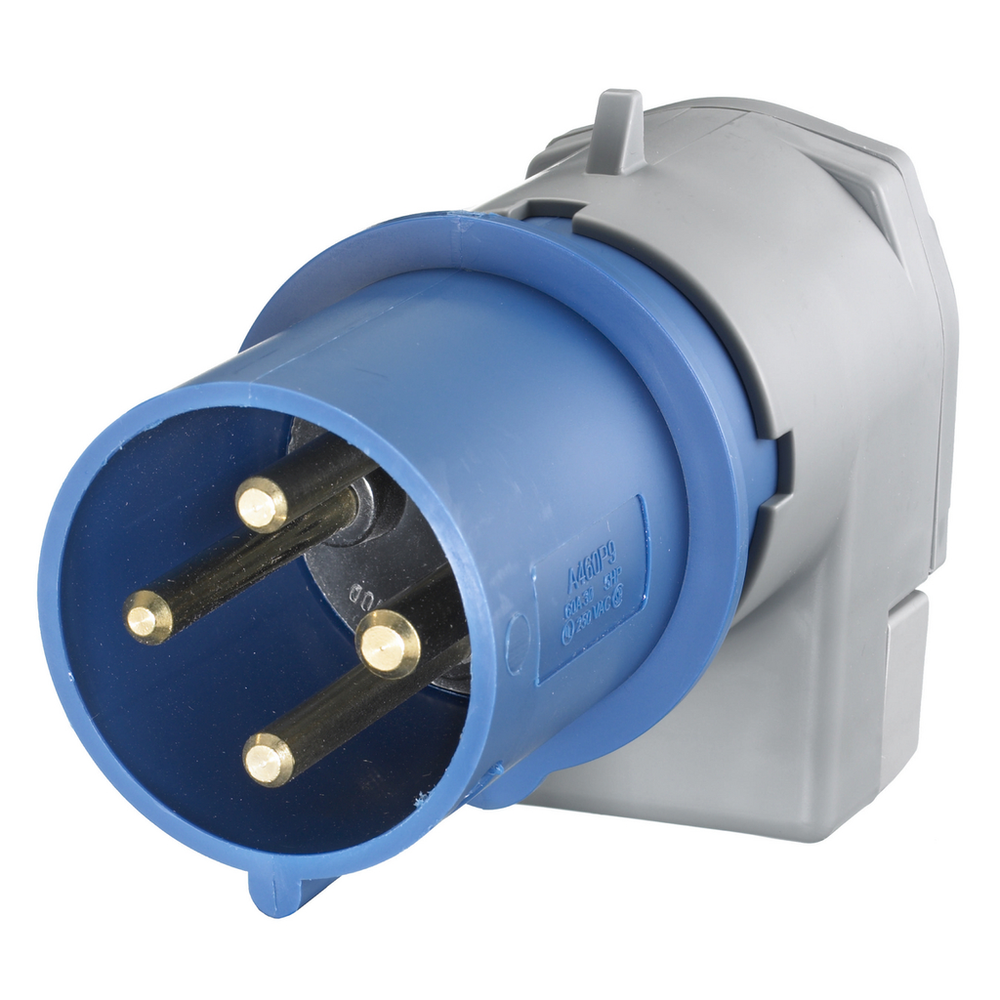

Hubbell A460P9
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 60A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Blue, Low ProfileHeavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 60A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Blue, Low Profile
Hubbell Wiring Device-Kellems A460P9 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Amperage Rating
- 60 A
- Application
- High Ampacity Connections
- Base Unit of Measure
- EA
- BOX SIZE
- 6.745x24.555x11.625 (in)
- Carton - Gross Weight per Pack
- 16.750 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585507804
- Carton - Total Units
- 10 EA
- Class Code
- A12
- Color
- Blue
- Connectivity
- Pressure Terminal Screws
- Cord Type
- All Portable
- Country of Origin
- US
- Current / Amperage Rating
- 60 A
- Current Rating
- 60 A
- Description - Invoice
- PS, IEC, PLUG, 3P4W, 60A 3P 250V, LOPRO
- Display Size
- Standard Sized
- Each - Pack Description
- Each
- Each - Width
- 5.250 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Image Actual Or Representative
- A
- Lowest Level UOM
- Each
- Material
- Composite
- Material - Mounting Hardware
- Cord Mounted
- MSDS Flag
- No
- Nema Rating
- Non-NEMA
- NEMA Rating
- Non-NEMA
- Number of Poles
- 3-Pole
- Number Of Poles
- 3-Pole
- Number of Wires
- 4-Wire
- Number Of Wires
- 4-Wire
- Performance
- Electrical - Current Interrupting - Certified for current interruption at full rated current;Electrical - DielectricVoltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 250V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP22 Suitability;Environmental - Operating Temperatures - Max. Continuous +75°C;Min. -40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American convention
- Phase
- Three Phase
- Series
- Low Profile
- Special Features
- Watertight
- Style
- Standard Service
- Sub Class Code
- A12A180
- Type
- Angled Plug
- Voltage Rating
- 3 Phase 250 VAC
- Voltage Rating Description
- 3 Phase 250 VAC
- Width
- 5.250 in
- Wire Size
- #4 AWG
