Description
Hubbell Wiring Device-Kellems 01304029 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Application
- Cable and Wire Splicing
- Approx Breaking Strength
- 10,000 lb.
- Base Unit of Measure
- EA
- BOX SIZE
- 12.875x32.625x18.625 (in)
- Cable Diameter Range
- 1.00 in-1.49 in
- Cable Size
- 1.00"-1.49" (2.54-3.78)
- Carton - Gross Weight per Pack
- 34.000 lb.
- Carton - Number of Sub Packs
- 2
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585327020
- Carton - Total Units
- 25 EA
- Class Code
- A52
- Color
- Metallic
- Country of Origin
- US
- Description - Invoice

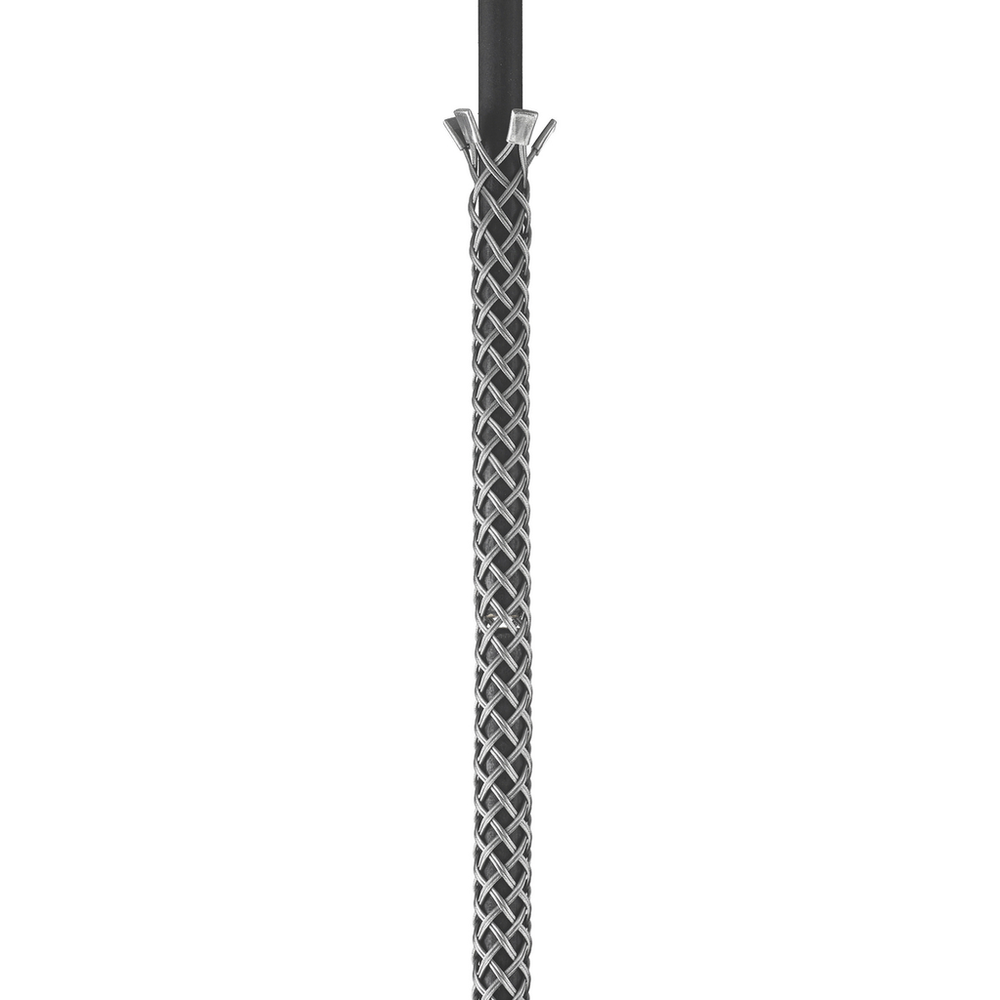

- SPLICE GRIP, 1.0"-1.5"; GALV, 48" L
- Display Size
- 48" (121.92) Length
- Each - Pack Description
- Each
- Each - Width
- 2.000 in
- Environmental Conditions
- No Limitations
- Freight Class Code
- 06168002
- Harmonization Code
- 7326200090
- Image Actual Or Representative
- A
- Industry Standard(s)
- CSA Certified
- Lowest Level UOM
- Each
- Material
- Steel, Galvanized
- Material - Mounting Hardware
- On Cable Ends
- MSDS Flag
- No
- Number of Conductors
- 1 Jacketed Cable
- Number Of Conductors
- 1 Jacketed Cable
- Performance
- Mechanical - Approximate Breaking Strength - 10,000 (44,480) Lbs. (N);Mechanical - Cable Diameter Range - 1.00"-1.49" (2.54-3.78);Mechanical - Working Load - (program formula 5% of Approximate Breaking Strength)
- Series
- Splicing Grips
- Special Features
- Standard Product
- Standard
- CSA Certified
- Style
- Closed Mesh, Double Weave
- Sub Class Code
- A52A480
- Type
- Tube
- Width
- 2.000 in
