Hubbell PT7FSDBRCA
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

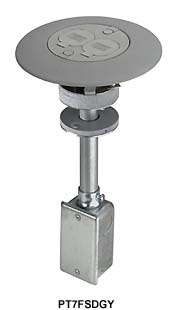

With Hubbell HBL5252 series (15A) specification grade receptacle & two low-voltage knockouts. Equipped with a cast aluminum carpet flange and a thermoplastic (ABS) duplex flap cover.
Hubbell Premise Wiring PT7FSDBRCA is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Carpet Flange Material
- Painted Cast Aluminum/Solid Brass, Brushed and Laquered.
- Color
- brown
- Complies with:
- UL 514A requirements for scrub water protection.
- Conduit Tubes
- Power - 3/4" EMT/Low Voltage - 1/2" EMT (two)
- Cored Hole
- 3" (76.2) diameter
- Device and Cover Flap Material
- Thermoplastic
- Fire Rating
- For use in 1, 1 1/2, 2, 3 or 4 hour rated unprotected reinforced concrete floors or in 1, 2 or 3 hour rated floors employing steel floor units and concrete topping (D900 series design).
- Floor Thickness Range
- 2 1/4" (over metal deck) to 7" (57.2 to 117.8)
- Flush Duplex Offering
- One-Piece Canadian Units
- Housing
- Engineered flame-retardant thremoplastic UL rated 94V-0
- Jack(s)
- Low Voltage Knockout Only.
- Listings
- Outlet Box- E31999, Fire Resistance- R8429
- Power Conductors
- #12 AWG THHN stranded copper.
- Product Type
- flush-duplex-icon
- Receptacles
- Hubbell #HBL5252, NEMA 5-15R; 15A, 125V AC
- UL Installation Spacing
- Minimum of 2 feet on centers and not more than one unit per 65 sq. ft. of floor area in each span.
- Weight in LBs
- 4.75
