Hubbell HXJ6BK24
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

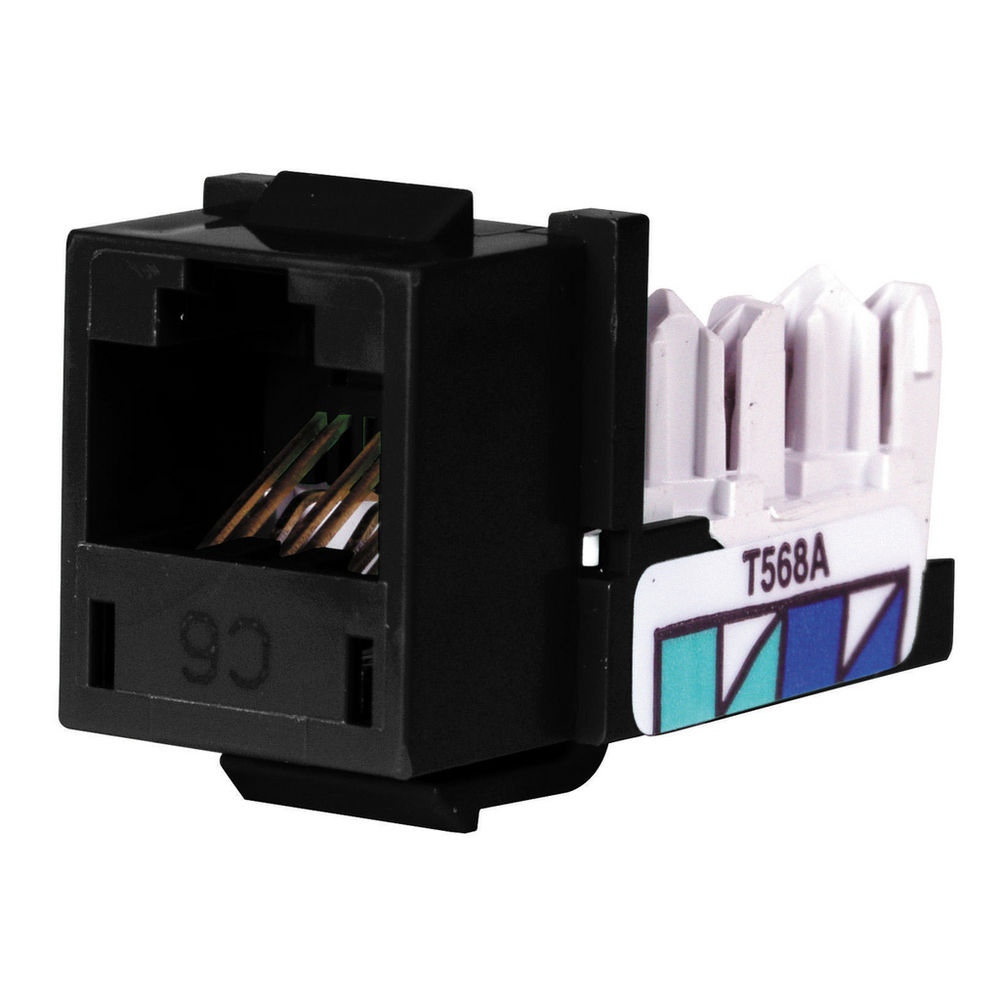

XCELERATOR™ Category 6 modular jacks exceed all TIA component level parameters to provide 5GBASE-T application assurance. The innovative angled QuickLace™ termination towers provide ample room for lacing, accelerating the termination.Category 6 XCELERATOR™ Jack
Hubbell Premise Wiring HXJ6BK24 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Application
- Up to 5GBASE-T, 802.3bt POE
- Base Unit of Measure
- PK
- BOX SIZE
- 6.900x11.200x9.100 (in)
- Carton - Gross Weight per Pack
- 13.25 lb.
- Carton - Number of Sub Packs
- 4
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00662620663791
- Carton - Total Units
- 4 EA
- Case - Total Units
- 20 EA
- Case Weight
- 12.550 lb.
- Class Code
- A60
- Color
- Black
- Connectivity
- RJ45 Jack to IDC Punch Down
- Construction Material - Main
- Thermoplastic
- Contact
- IDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
- Contact Point Material
- Beryllium Copper with Gold Over Plating
- Contact Resistance
- 100 Ohm
- Country of Origin
- PR
- Description - Invoice
- JACK, HXJ,CAT6,8POS,UNI A/B,BK,24PK
- Display Size
- Standard Sized Product
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Pack
- Each - Width
- 8.0000 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536698000
- Image Actual Or Representative
- A
- Industry Standard(s)
- ANSI/TIA/EIA-568 Category 6 component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Lowest Level UOM
- Each
- Material - Housing
- High-impact thermoplastic (UL 94V-0)
- Material - Mounting Hardware
- Keystone
- Mounting
- Snap-fit
- Mounting Type
- Snap-fit
- MSDS Flag
- No
- Number of Pieces in Package
- 24
- Operating Cycles
- 2000 Plug
- Package Quantity
- 1 EA
- Package - Total Units
- 1 EA
- Performance
- TIA Cat 6 Component, Third Party Verified
- Series
- Cat 6 UTP
- Size
- 0.86 (22) x 0.67 (17) x 1.29 (33)
- Special Features
- Quick-Lace Termination
- Standard
- ANSI/TIA/EIA-568 Category 6 component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Style
- RJ-45 Jack
- Sub Brand
- XCELERATOR™
- Sub Class Code
- A60A540
- Temperature Rating
- Max Continuous- 75° C, Minimum- -40° C Without Impact
- Type
- Modular Jack
- Width
- 8.0000 in
- Withstand Voltage
- 1,000 Vac @ 60 Hz
