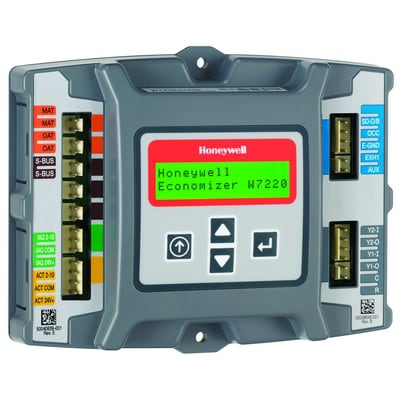

Honeywell YL7220S7503/U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
JADE™ economizers are the perfect examples of Honeywell innovation that makes saving energy easier for your customers. For buildings with less than 50,000 sq ft and standalone rooftop unit (RTU) applications, JADE is the best solution for a fresh air ventilation system. JADE Fresh Air Economizers with integrated demand control ventilation (DCV) systems are compatible with most individually packaged rooftop or built-up air handling units.Economizer Controllers, JADE economizers sensors and Direct Coup
Honeywell YL7220S7503/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Actuator Included
- MS7503A2030 - 27 in-lb DCA
- Analog Outputs
- 2-10 Vdc ; Sylk
- Application
- Economizer control for standalone rooftop unit applications with integrated demand control ventilation control
- Color
- Gray
- Controller Type
- Economizer Package
- For Use With
- Honeywell Series 72 and Sylk actuators ; Dry Bulb Temperature and Mixed Air, C7250A ; Temperature and Humidity, C7400S1000 (optional) ; DCV (CO2) Sensor (C7232) ; Humidity, C7600 (optional)
- IAQ Sensor Included
- Not Included
- Includes
- Logic Module - W7220A1000 ; OAE Sensor - C7400S1000 ; MAT Sensor - C7250A1001 ; DCA OA - MS7503A2030
- Maximum Operating Ambient Temperature
- 150 °F ; 65 °C
- Minimum Operating Ambient Temperature
- -40 °F ; -40 °C
- Minimum Operating Humidity
- 5 % non-condensing
- Mixed Air Sensor Included
- C7250A1001
- Number of Sensors Included
- 2
- Outdoor Air Sensor Included
- C7400S1000 - Enthalpy
- Regulatory Approvals
- CE ; C-Tick ; FCC Compliant ; Flammability Rating UL94V-5V ; Complies with California Title 24
- Relay Rated Load
- 30 Vac-- 1.5 A Run, 3.5 A Inrush
- Supply Voltage
- 24 V AC
- Supply Voltage Frequency
- 50 Hz ; 60 Hz
