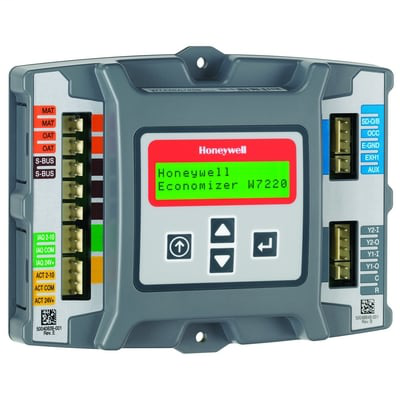

Honeywell W7220A1000/U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Honeywell W7220A1000/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Analog Outputs
- 2-10 Vdc ; Sylk
- Application
- Economizer control for standalone rooftop unit applications with integrated demand control ventilation control
- Color
- Gray
- Controller Type
- Economizer
- For Use With
- Honeywell Series 72 and Sylk actuators ; Dry Bulb Temperature and Mixed Air, C7250A ; Temperature and Humidity, C7400S1000 (optional) ; DCV (CO2) Sensor (C7232) ; Humidity, C7600 (optional)
- Includes
- Logic Module - W7220A1000
- Maximum Operating Ambient Temperature
- 150 °F ; 65 °C
- Minimum Operating Ambient Temperature
- -40 °F ; -40 °C
- Minimum Operating Humidity
- 5 % non-condensing
- Number of Sensors Included
- 0
- Overall Depth
- 1.34 in ; 34 mm
- Overall Height
- 4.98 in ; 126.4 mm
- Overall Width
- 6.3 in ; 160 mm
- Regulatory Approvals
- CE ; C-Tick ; FCC Compliant ; Flammability Rating UL94V-5V ; Complies with California Title 24
- Relay Rated Load
- 30 Vac-- 1.5 A Run, 3.5 A Inrush
- Supply Voltage
- 24 V AC
- Supply Voltage Frequency
- 50 Hz ; 60 Hz
