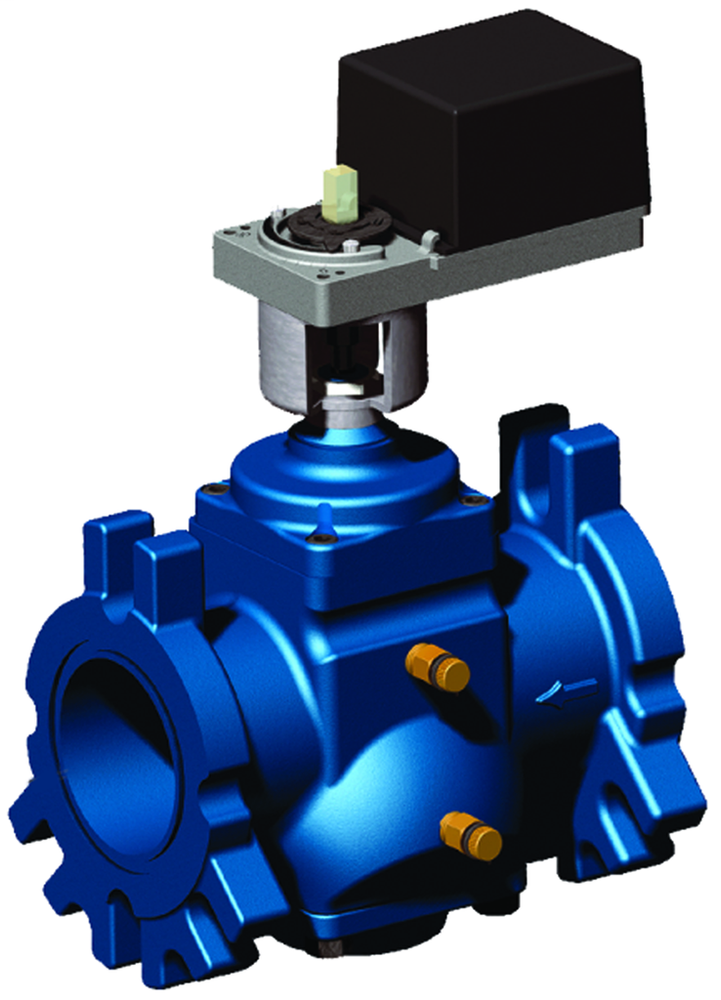

Honeywell VRW2KW4SMB/M
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Pressure Independent Flow Control Valves include the VRN threaded and VRW flanged valve families. These valves maintain flow under varying differential pressures and increase coil differential temperature which improves HVAC system efficiency. An integrated pressure control cartridge combines circuit balancing and control functions in one package, resulting in consistent temperature and comfort. Valves have field serviceable stem and pressure regulating cartridge allow for easy service.Pressure Independent Control Valves, Modg Flange PICV 3 and 4 in. 73-222 gpm
Honeywell VRW2KW4SMB/M is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Actuator Mount
- Direct Coupled Actuator (DCA) Bracket
- Close-Off
- 101 psi
- Controlled Media
- Chilled or hot water- up to 50% glycol
- Flange Rating
- ANSI Class 150/300 compatible
- Head Loss Range
- 8.6 to 58 psi ; 59 to 400 kPa
- Includes
- Modulating actuator
- Leakage
- ANSI Class II (Less than 0.2% of Cv)
- Maximum Differential Pressure
- 101 psi ; 700 kPa
- Maximum Flow Rate
- 50 M3H ; 222 gpm
- Maximum Media Temperature
- 248 °F ; 120 °C
- Maximum Operating Ambient Temperature
- 131 °F ; 55 °C
- Maximum Operating Pressure
- 580 psi ; 4000 kPa
- Media Restrictions
- Not for use with steam or fuels
- Minimum Media Temperature
- -4 °F ; -30 °C
- Minimum Operating Ambient Temperature
- 14 °F ; -10 °C
- Overall Height
- 12.6 in ; 320 mm
- Overall Length
- 16.7 in ; 424 mm
- Pipe Connection Size
- 3 and 4 in ; 80 and 100 DN
- Pipe Connection Type
- Flanged
- Valve Body Material
- Ductile Iron- ASTM A536€“65T- Class 60-45-18
- Valve Body Pattern
- 2-way
- Valve Diaphragm Material
- EPDM
- Valve Flow Characteristic
- Equal Percentage
- Valve Flow Rate
- 222 gpm
- Valve Regulator Material
- 316 Stainless Steel
- Valve Start Position
- Normally Closed
- Valve Stem Action
- 1 to 6 Rotations (51 field-selectable increments)
- Valve Stem Material
- Stainless Steel
- Valve Trim
- 316 Stainless Steel
