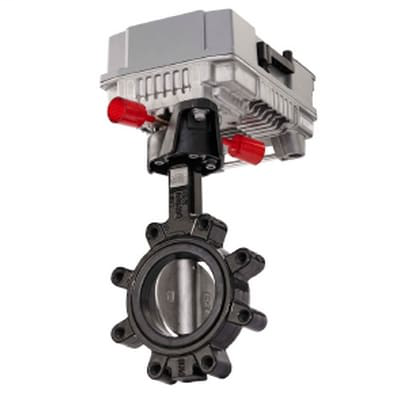

Honeywell VR2F7LSF2/M
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Honeywell resilient seated butterfly valves offer two-position and modulating control for chilled, hot or cooling tower water systems. Honeywell carries pipe sizes from 2 to 24-in. in two-way and 2 to 18-in. three-way applications. 3-way valve configuration chart: https://digitalassets.honeywell.com/digitalasset/aa8d85e1-6a19-41a0-a1e2-c20c9d4ab727.pngResilient Seated Butterfly Valves, 2WAY STD BFLY VALVE 2" 2-10VDC
Honeywell VR2F7LSF2/M is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Actuator Control Signal
- Modulating
- Actuator Type
- Spring Fail-safe
- Controlled Media
- Chilled or hot water- up to 60% glycol
- Flange Bolt Pitch
- 11
- Flange Bolt Size
- 0.625 in
- Flange Type
- ANSI Class 125/150 flange compatible- lugged
- Flow Coefficient
- 44 CV ; 38 Kvs
- Includes
- MBS7L3F2/U spring fail-safe actuator NEMA 2 IP54
- Leakage
- 0 %
- Manual Operation Type
- 5 mm hex crank (3/16” Allen), supplied
- Maximum Differential Pressure
- 200 psi ; 1380 kPa
- Maximum Media Temperature
- 250 °F ; 121 °C
- Maximum Operating Ambient Temperature
- 122 °F ; 50 °C
- Maximum Operating Pressure
- 232 psi ; 1600 kPa
- Media Restrictions
- Not for use with steam or fuels
- Minimum Media Temperature
- -22 °F ; -30 °C
- Minimum Operating Ambient Temperature
- -22 °F ; -30 °C
- Number of Flange Bolts
- 4
- Pipe Connection Size
- 2 in ; 50 DN
- Pipe Connection Type
- Flanged
- Regulatory Approvals
- CE ; cULus
- Valve Body Material
- Epoxy powder coated ductile iron ASTM A536
- Valve Body Pattern
- 2-way
- Valve Disc Material
- 304 stainless steel
- Valve Flow Characteristic
- Modified Equal Percentage
- Valve Rangeability Ratio
- 10:1
- Valve Seat Material
- EPDM
- Valve Start Position
- Normally Open
- Valve Stem Material
- 416 stainless steel
