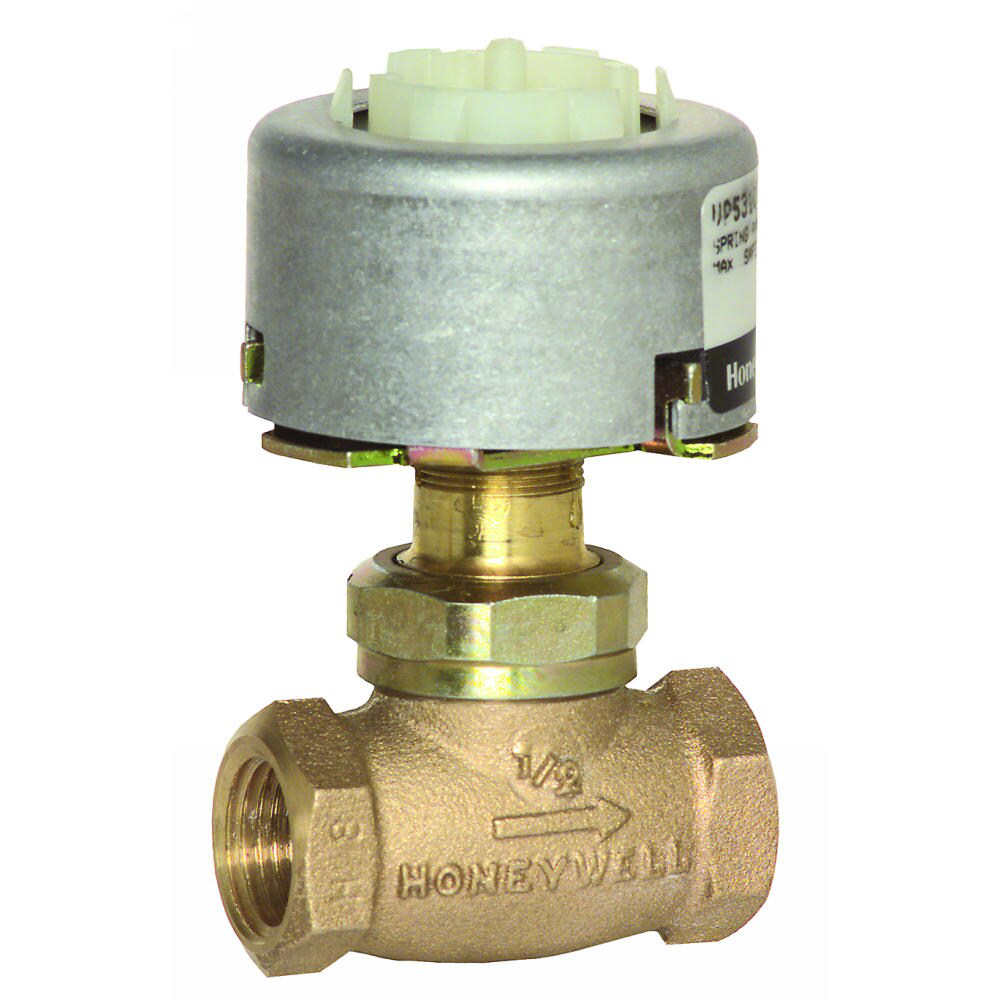

Honeywell VP531C1067/U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Honeywell VP531C1067/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Actuator Spring Range
- 2 to 5 psi ; 14 to 34 kPa
- Close-Off
- 70 psid at 20 psi ; 483 kPad at 138 kPa
- Controlled Media
- Chilled or hot water ; Steam
- Flow Coefficient
- 2.3 CV ; 1.99 Kvs
- Maximum Diaphragm Pressure
- 30 psi ; 205 kPa
- Maximum Operating Ambient Temperature
- 240 °F ; 116 °C
- Maximum Operating Humidity
- 95 %
- Minimum Operating Ambient Temperature
- 40 °F ; 4 °C
- Minimum Operating Humidity
- 5 %
- Pipe Connection Size
- 0.5 in ; 15 DN
- Pipe Connection Type
- NPT
- Valve Body Material
- Brass
- Valve Body Pattern
- Two-way- Straight-through
- Valve Flow Characteristic
- Equal Percentage
- Valve Plug Material
- Brass
- Valve Seat Material
- Brass
- Valve Start Position
- Normally Open
- Valve Stem Material
- Stainless Steel
