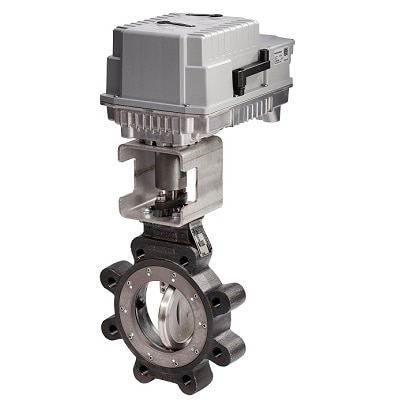

Honeywell VH5P6LPSH/M
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Honeywell high-performance butterfly valves offer two-position and modulating control for chilled, hot or cooling tower water systems. Also for use with two-position steam applications up to 50 psi. Honeywell carries pipe sizes from 2 to 24-in. in two-way and 2 to 16-in. three-way applications. 3-way valve configuration chart: https://digitalassets.honeywell.com/digitalasset/0848685c-c52e-4fa4-b9f6-a4d43f27ac1b.pngHigh Performance Butterfly Valves, 3WAY HI PERF CL150 BFLY 12" FLOATING
Honeywell VH5P6LPSH/M is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Actuator Control Signal
- Two-Position and Floating
- Actuator Type
- Fail-in-place
- Controlled Media
- on/off steam control up to 50 psi ; Chilled or hot water- up to 60% glycol
- Flange Bolt Pitch
- 9
- Flange Bolt Size
- 0.875 in
- Flange Type
- ASME/ANSI Class 150
- Flow Coefficient
- 2660 CV ; 2301 Kvs
- Includes
- MBP6LBSH/U fail-in-place 75% duty cycle actuator NEMA 4X IP66/67 with heater
- Leakage
- 0 %
- Manual Operation Type
- Hand Wheel
- Maximum Body Pressure Rating
- ASME/ANSI Class 150
- Maximum Differential Pressure
- 150 psi ; 1034 kPa
- Maximum Media Temperature
- 400 °F ; 204 °C
- Maximum Operating Ambient Temperature
- 150 °F ; 65 °C
- Media Restrictions
- Not for use with fuels or modulating steam
- Minimum Media Temperature
- -22 °F ; -30 °C
- Minimum Operating Ambient Temperature
- -22 °F ; -30 °C
- Number of Flange Bolts
- 12
- Pipe Connection Size
- 12 in ; 300 DN
- Pipe Connection Type
- Flanged
- Regulatory Approvals
- CE ; cCSAus
- Valve Body Material
- Carbon steel
- Valve Body Pattern
- 3-way (Mixing)
- Valve Disc Material
- 316 stainless steel
- Valve Flow Characteristic
- Modified Linear, Unidirectional
- Valve Rangeability Ratio
- 100:1
- Valve Seat Material
- RTFE
- Valve Start Position
- Normally Closed
- Valve Stem Material
- 17-4 PH Stainless
