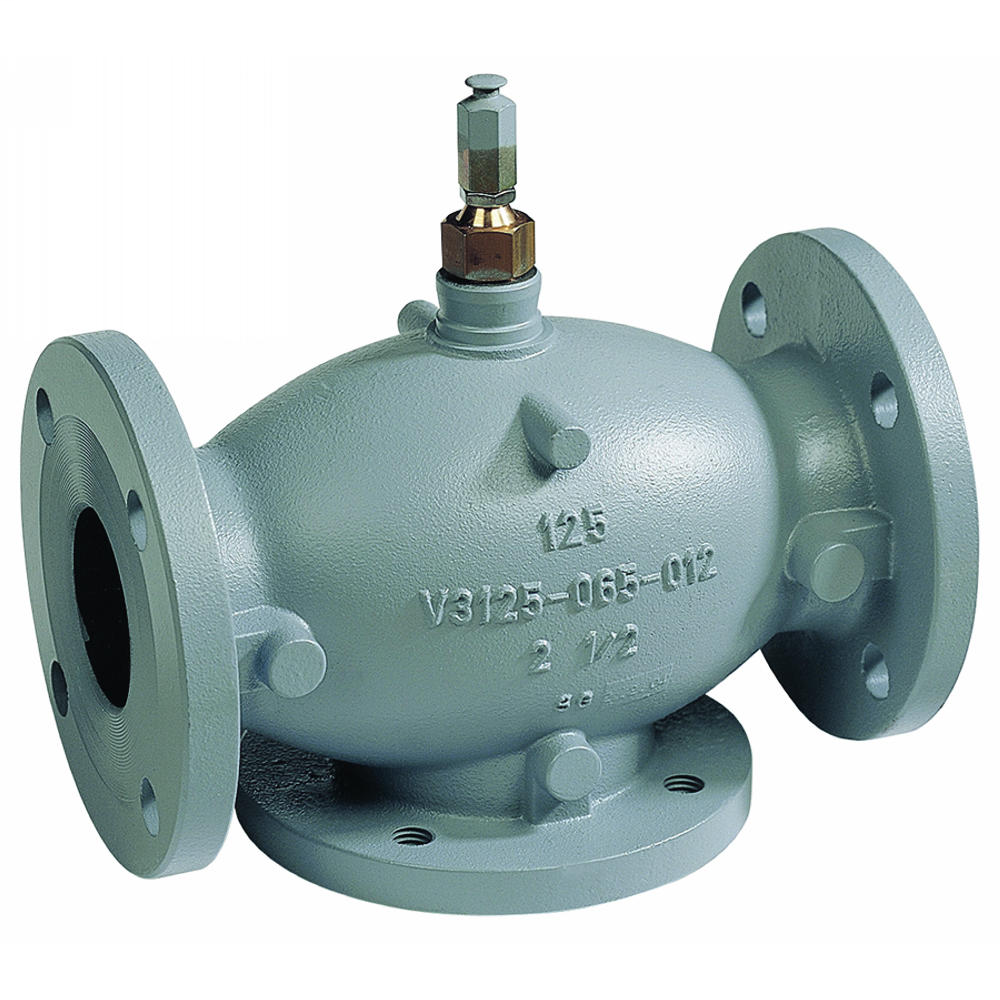

Honeywell VGF32LD30
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Globe valves offer the best in class size, Cv range and close-off pressure and provide precise control in HVAC applications. The V5011 and V5013 threaded valve families have ANSI 150 body class rating with 50:1 rangeability in equal percentage or linear flow characteristic. These valves are available with brass or stainless steel trim. VGF flanged globe valve families have ANSI 125 and ANSI 250 designs. Actuators are available for a range of control types.Globe Valves, 3-way divert Flange globe valve, linear
Honeywell VGF32LD30 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Controlled Media
- Chilled or hot water- up to 50% glycol
- Flange Rating
- ANSI Class 250
- Flow Coefficient
- 120 CV ; 103 Kvs
- For Use With
- ML6420 ; ML6421A ; ML6425 ; ML7420 ; ML7421A ; ML7425 ; MP953 ; Q5001 Linkage with Modutrol IV ; Q5020 Linkage with DCA
- Leakage
- Port A ANSI Class III (Less than 0.05% of Cv) ; Port B ANSI Class III (Less than 0.1% of Cv)
- Maximum Differential Pressure
- 34 psi ; 234 kPa
- Maximum Media Temperature
- 250 °F ; 120 °C
- Maximum Operating Pressure
- 400 psi ; 2758 kPa
- Media Restrictions
- Not for use with steam or fuels
- Minimum Media Temperature
- 20 °F ; -7 °C
- Overall Height
- 11.313 in ; 287.3502 mm
- Overall Length
- (Face-to-Face Dimension) 12.500 in ; (Face-to-Face Dimension) 318 mm
- Pipe Connection Size
- 3 in ; 80 DN
- Pipe Connection Type
- Flanged
- Valve Body Material
- Cast iron- ASTM A126 Class B
- Valve Body Pattern
- 3-way (Diverting)
- Valve Bonnet Size
- 1.375 in ; 35 mm
- Valve Cartridge
- No
- Valve Flow Characteristic
- Linear
- Valve Plug Material
- Stainless Steel
- Valve Seat Material
- Stainless Steel
- Valve Stem Action
- Stem down to close Port A
- Valve Stem Material
- Stainless Steel
- Valve Stem Travel
- 0.75 in ; 20 mm
