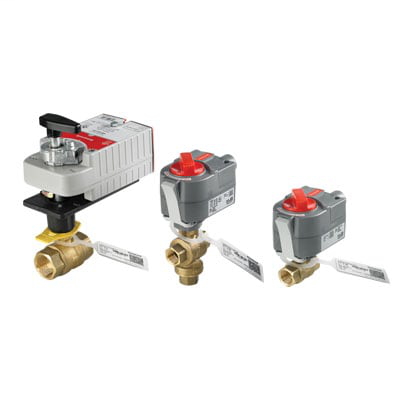

Honeywell VBF5011A1858/U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Honeywell’s characterized control ball valves feature a parabolic flow insert that’s integral to the ball. Its unique construction enables a smoother flow curve and greater degree of rotation responsiveness. The result: more accurate flow rate with less wear and tear. Honeywell control ball valves are available with three types of actuator mounting brackets. In 1/2” to 1 1/4” size, we offer the MVN actuator family with two mounting options: one standard height profile, and one lower height profile when space constraints require more compact assemblies. Finally we offer a mounting bracket for standard Honeywell direct coupled actuators (DCA), in all sizes to provide maximum flexibility in actuator choice.Actuated Ball Valves, 2-Way 4 in. Flanged Control Ball Valve with 160 Cv capacity
Honeywell VBF5011A1858/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Actuator Mount
- Direct Coupled Actuator (DCA) Bracket
- Close-Off
- 70 psi
- Controlled Media
- Chilled or hot water- up to 50% glycol
- Flow Coefficient
- 160 CV ; 138 Kvs
- Leakage
- Less than 0.01% of Cv
- Leakage Class
- ANSI Class IV
- Maximum Body Pressure Rating
- 240 psi ; 1655 kPa
- Maximum Media Temperature
- 250 °F ; 121 °C
- Minimum Media Temperature
- -22 °F
- Pipe Connection Size
- 4 in ; 100 DN
- Pipe Connection Type
- Flanged
- Valve Ball Material
- 316 Stainless Steel
- Valve Body Material
- Cast Iron ASTM A395- 60-40-18
- Valve Body Pattern
- 2-way
- Valve Flow Characteristic
- Equal Percentage
- Valve Seal Material
- Teflon„¢
- Valve Stem Material
- 316 Stainless Steel
- Valve Trim
- 316 Stainless Steel
