Description

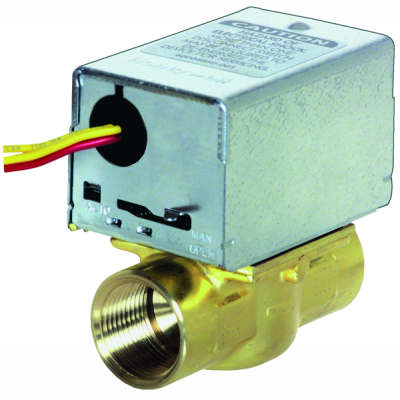

Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.24V 1 in NPT N.C. Zone Valve
Honeywell V8043E1137/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Actuation
- Two position
- Ambient Temperature Range (C)
- 52 C Maximum
- Ambient Temperature Range (F)
- 125 F Maximum
- Application
- Hydronic Control
- Approvals, Underwriters Laboratories Inc.
- UL Listed: File MH11826
- Auxiliary End Switch
- N.O. SPST
- Body Pattern
- Two-way, Straight-through
- Capacity (Cv)
- 10 Cv
- Capacity (Kv)
- 8.6 Kv
- Comments
- Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water. Valve designed for cycling (not constantly powered on) applications.
- Connection Type
- NPT
- Current Draw
- 0.32A
- De-energized Position
- Normally Closed
- Dimensions (in.)
- 4 in. high x 3 23/32 in. wide x 2 3/8 in. deep
- Dimensions (mm)
- 102 mm high x 94 mm wide x 60 mm deep
- Electrical Connections (in.)
- 18 in. leads
- Electrical Connections (mm)
- 457 mm leads
- End Switch Rating
- 50 VA pilot duty @ 24 V; 4.4 A running with 26.4 A inrush @ 120 V
- Fluid Temperature (C)
- 10 C to 93 C
- Fluid Temperature (F)
- 50 F to 200 F
- Frequency
- 50 Hz; 60 Hz
- Manual Opener
- Yes
- Materials (Body)
- Brass
- Materials (Packing)
- EPDM rubber
- Materials (Plug/Ball/Disc)
- Buna-N (NBR) Rubber Ball
- Materials (Seat)
- Brass
- Materials (Stem)
- Stainless Steel
- Maximum Differential Pressure Ratings (Close-off) (kPa)
- 45 kPa
- Maximum Differential Pressure Ratings (Close-off) (psi)
- 6.5 psi
- Operating Humidity Range (% RH)
- 5 to 95% relative humidity, non-condensing.
- Pipe Size (DN)
- DN25
- Pipe Size (inch)
- 1 in.
- Static Pressure Rating (kPa)
- 862 kPa
- Static Pressure Rating (psi)
- 125 psi
- Timing
- Nominal Open--15 sec
- Valve Action
- Spring return to close
- Valve Type
- Zone Valve
- Voltage
- 24 Vac; Power Consumption--7.7 VA
