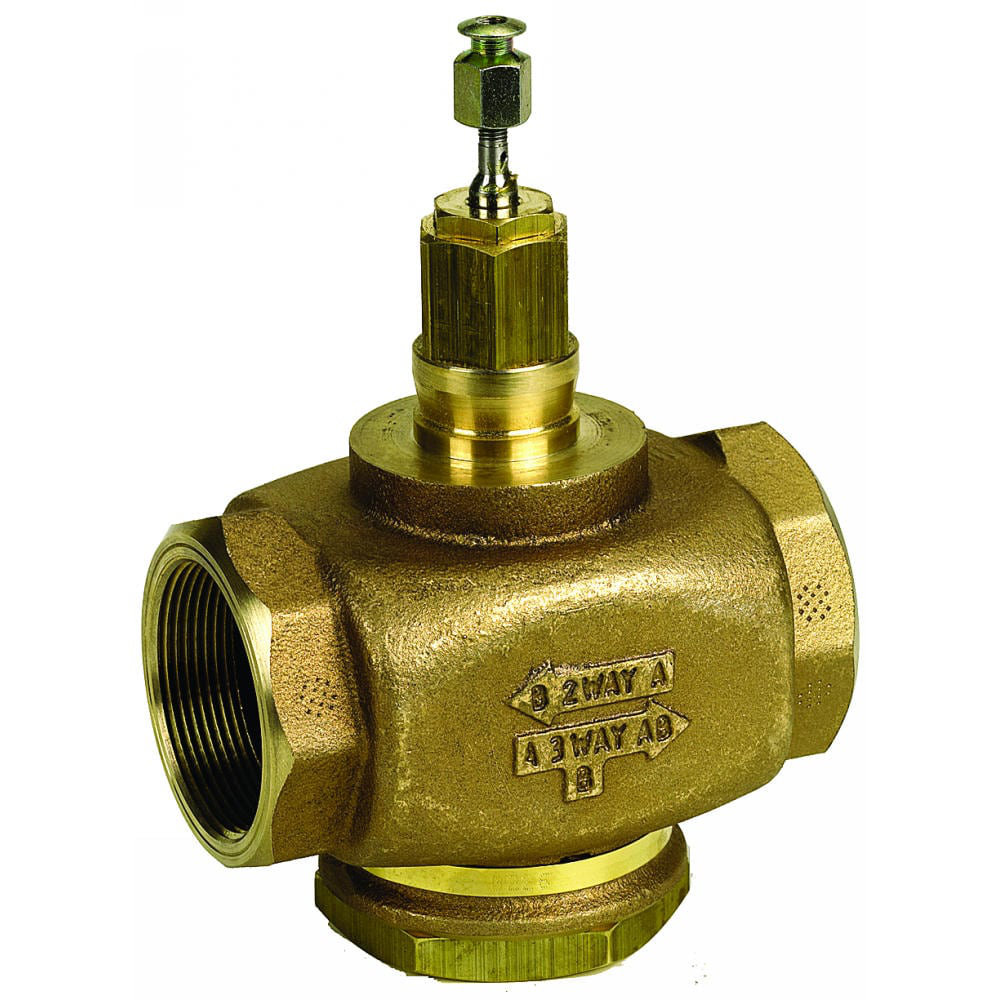

Honeywell V5011N3046/U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Globe valves offer the best in class size, Cv range and close-off pressure and provide precise control in HVAC applications. The V5011 and V5013 threaded valve families have ANSI 150 body class rating with 50:1 rangeability in equal percentage or linear flow characteristic. These valves are available with brass or stainless steel trim. VGF flanged globe valve families have ANSI 125 and ANSI 250 designs. Actuators are available for a range of control types.Globe Valves, 1 1/4 in 2-way f-NPT Globe valve
Honeywell V5011N3046/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Controlled Media
- Chilled or hot water- up to 50% glycol
- Flow Coefficient
- 18.7 CV ; 16 Kvs
- For Use With
- ML6420 ; ML6425 ; ML6984 ; ML7420 ; ML7425 ; ML7984 ; MP953 ; Q5001 Linkage with Modutrol IV ; Q5020 Linkage with DCA
- Leakage
- ANSI Class III (Less than 0.05% of Cv)
- Maximum Differential Pressure
- 240 psi ; 1655 kPa
- Maximum Operating Ambient Temperature
- 248 °F ; 120 °C
- Maximum Operating Pressure
- 217 psi ; 1500 kPa
- Media Restrictions
- Not for use with fuels
- Minimum Operating Ambient Temperature
- 36 °F ; 2 °C
- Overall Height
- 4.1875 in ; 106.3625 mm
- Overall Length
- (Face-to-Face Dimension) 4.188 in ; (Face-to-Face Dimension) 106 mm
- Pipe Connection Size
- 1.25 in ; 32 DN
- Pipe Connection Type
- Female NPT
- Regulatory Approvals
- CRN no. 0C0861.9087YTN/0C0861.123
- Valve Body Material
- Red Brass
- Valve Body Pattern
- 2-way
- Valve Bonnet Size
- 1.375 in ; 35 mm
- Valve Cartridge
- No
- Valve Flow Characteristic
- Equal Percentage
- Valve Plug Material
- Brass
- Valve Seat Material
- Brass
- Valve Stem Action
- Stem up to close
- Valve Stem Material
- Stainless Steel
- Valve Stem Travel
- 0.75 in ; 20 mm
