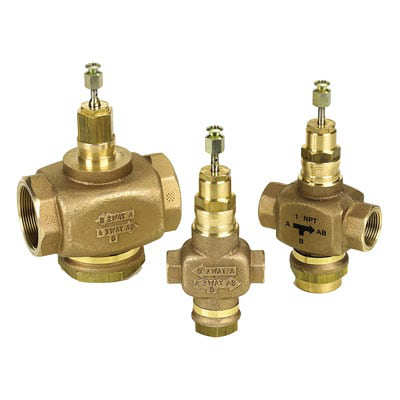

Honeywell V5011G1129/U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Honeywell V5011G1129/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Controlled Media
- 100psi saturated steam ; Chilled or hot water- up to 50% glycol
- Flow Coefficient
- 100 CV ; 85 Kvs
- For Use With
- ML6420 ; ML6421A ; ML6984 ; ML7420 ; ML7421A ; ML7984 ; Q5001 Linkage with Modutrol IV ; Q5020 Linkage with DCA
- Leakage
- ANSI Class II (Less than 0.5% of Cv)
- Maximum Differential Pressure
- 240 psi ; 1655 kPa
- Maximum Operating Pressure
- 1655 kPa ; 240 kPa
- Media Restrictions
- Not for use with fuels
- Overall Height
- 9 in ; 228.6 mm
- Overall Length
- (Face-to-Face Dimension) 8.875 in ; (Face-to-Face Dimension) 225 mm
- Pipe Connection Size
- 3 in ; 80 DN
- Pipe Connection Type
- Female NPT
- Regulatory Approvals
- CRN no. 0C0861.9087YTN
- Valve Body Material
- Red Brass
- Valve Body Pattern
- 2-way
- Valve Bonnet Size
- 1.375 in ; 35 mm
- Valve Flow Characteristic
- Linear
- Valve Plug Material
- Brass
- Valve Seat Material
- Stainless Steel
- Valve Stem Action
- Stem down to close
- Valve Stem Material
- Stainless Steel
- Valve Stem Travel
- 0.75 in ; 20 mm
