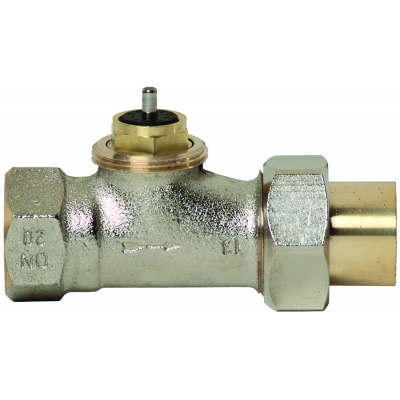

Honeywell V2040DSL20
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Honeywell V2040DSL20 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Application
- Especially suited for base boards and straight runs where manual valves were not originally installed.
- Body Pattern
- Straight
- Capacity
- Standard
- Capacity (Btu/hr-steam)
- 63,800 Btu/hr
- Capacity (Cv)
- 2.7 Cv
- Cartridge Change Tool
- Yes - Use VA8200A001
- Connection Size (in.)
- 3/4 in.
- Connection Type
- Inlet--NPT; Outlet--Threaded
- Dimensions (in.)
- 4 1/16 in x 4 3/16 in.
- Dimensions (mm)
- 104 mm x 106 mm
- Materials (Body)
- Nickel Plated Bronze
- Maximum Differential Pressure Ratings (Close-off) (kPa)
- With T100 or T200: 103 kPa,With MV100: 248 kPa,For low noise: 20 kPa
- Maximum Differential Pressure Ratings (Close-off) (psi)
- With T100 or T200: 15 psi,With MV100: 36 psi,For low noise: 3 psi
- Pipe Size (DN)
- DN20
- Pipe Size (inch)
- 3/4 in.
- Pressure Ratings (kPa)
- Hot Water--1034 kPa maximum; Steam--103 kPa
- Pressure Ratings (psi)
- Hot Water--150 psi maximum; Steam--15 psi maximum
- Temperature Range (C)
- 120 C Maximum
- Temperature Range (F)
- 248 F Maximum
