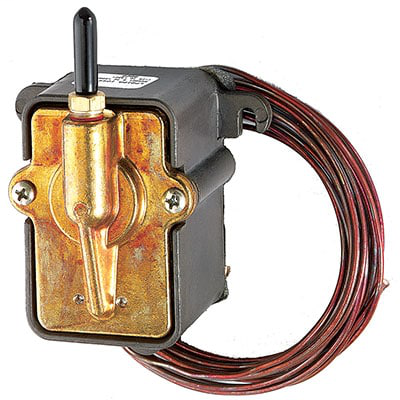

Honeywell TP974A2000/U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Honeywell TP974A2000/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Air Connection Type
- plug-in
- Airflow Usage Capacity
- 0.019 cfm ; 9 ml/s
- Application
- Temperature Sensor
- Control System Type
- Pneumatic
- Features
- 1/2 in. NPSC straight pipe threads into well ; Order Cover Separately
- Maximum Operating Ambient Temperature
- 38 °C
- Maximum Operating Pressure
- 25 psi ; 172 kPa
- Maximum Output Pressure Rating
- 103 kPa
- Maximum Supply Pressure Rating
- 124 kPa
- Minimum Operating Ambient Temperature
- 10 °C
- Minimum Output Pressure Rating
- 21 kPa
- Minimum Supply Pressure Rating
- 16 psi ; 110 kPa
- Mounting Type
- Wall
- Number of Pipes
- 1 ; 2
- Overall Depth
- 1.625 in ; 41 mm
- Overall Height
- 3.25 in ; 83 mm
- Overall Width
- 2 in ; 51 mm
- Product Action
- Direct Acting
- Sensor Type
- Temperature
- Temperature Sensor Element
- Bimetal
- Temperature Sensor Range
- 50 to 100 °F ; 10 to 38 °C
