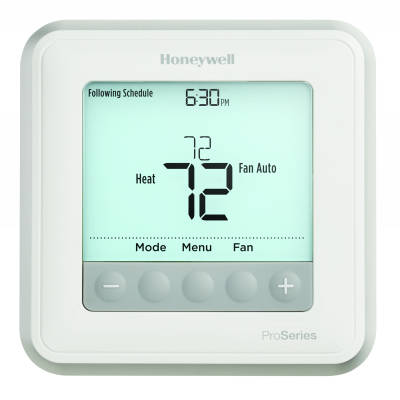

Honeywell TH6220U2000/U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The T Series programmable thermostat streamlines everything from product selection and installation to customer service and support. With a standard footprint and simple interface, the T Series will enhance the entire thermostat experience for you and your customers alike.T6 Pro Programmable Thermostat with stages up to 2 Heat/1 Cool Heat Pumps or 2 Heat/2 Cool Conventional Systems
Honeywell TH6220U2000/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accuracy (C)
- 0.5 C
- Accuracy (F)
- 4 F
- Ambient Temperature Range (C)
- 0 C to 50 C
- Ambient Temperature Range (F)
- 32 F to 120 F
- Application
- Standard Efficient Gas Forced Air, High Efficacy Gas Forced Air, Oil Forced Air, Electric Forced Air, Hot water Fan Coil, Geothermal Heat Pump, Air to Air Heat Pump, Hot Water Radiant Heat, Steam
- Changeover
- Auto or Manual
- Differential Temperature (C)
- ± 0.5 C
- Differential Temperature (F)
- ± 1 F
- Dimensions (in.)
- 4-1/16 in. long x 4-1/16 in. wide x 1-3/32 in. deep
- Dimensions (mm)
- 103.6 mm long x 103.6 mm wide x 28 mm deep
- Display
- Large Display, Soft Key Controls
- Display Size
- 5.44 sq. in.
- Electrical Connections
- Honeywell UWP Mounting System
- Electrical Ratings
- 20 to 30 Vac
- External Sensors Available
- Optional: Outdoor -- C7089U1006, Remote Indoor — C7189U1005
- Fan Current
- 0.02-.05 A
- Heat Current
- 0.02-1.0 A
- Includes
- Thermostat, UWP mounting system, Installation (J-box) adaptor, Small decorative cover plate, screws and anchors, Installation Guide, User Guide, and 2 AA Batteries
- Interstage Differential Temperature (F)
- 1 to 1.5 F Multistage models only
- Item Type
- Product
- LEDs
- LED Back Light
- Mounting
- UWP Mounting System
- Operating Humidity Range (% RH)
- 5 to 90% RH, non-condensing
- Operating Temperature Range (C)
- 2.7 C to 39 C
- Operating Temperature Range (F)
- 37 F to 102 F
- Power Method
- Battery or Hardwired
- Programmability
- 7 day, 5-1-1 day, 5-2 day, or Non-programmable
- Setting Temperature Range (C)
- Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C
- Setting Temperature Range (F)
- Heat: 40 F to 90 F; Cool 50 F to 99F
- Shipping and Storage Temperature Range (C)
- 28.9 C to 48.9 C
- Shipping and Storage Temperature Range (F)
- 20 F to 120 F
- Stages
- Up to 2 Heat/1 Cool Heat Pumps; Up to 2 Heat/2 Cool Conventional Systems
- Supply Voltage
- 20 to 30 Vac
- Switch Positions (Fan)
- AUTO-ON-CIRC-FOLLOW SCHEDULE
- Switch Positions (System)
- HEAT-OFF-COOL-AUTO-EM.HEAT
- Switch Type
- Relay
- Temperature Control Mode Selections
- Ambient Air Temperature
