Honeywell TB7300F5014B/U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

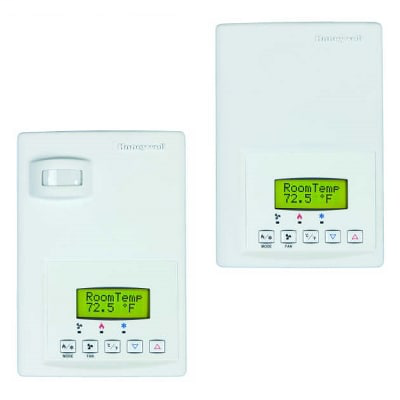

Honeywell’s TB7300 Series communicating thermostats deliver exceptional control of multi-speed fan coil units with 2-position, analog, or floating temperature control valves. Pre-programmed to handle most applications with minimal configuration. BACnet® MS/TP protocol is standard on all models. Thermostats include fully integrated advanced occupancy functionality with passive infra-red (PIR) models; all models are PIR occupancy sensor ready with the addition of the occupancy sensor cover.TB7300 Communicating Fan Coil Thermostats, 2 ANALOG 1 AUX FAN COIL BNET
Honeywell TB7300F5014B/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Analog Outputs
- 2 Analog
- Analog Output Signal Type
- 0 - 10 Vdc
- Application
- Commercial FCU
- Changeover
- Auto or Manual
- Color
- White
- Cooling Maximum Setpoint Temperature
- 100 °F ; 37.5 °C
- Cooling Minimum Setpoint Temperature
- 54 °F ; 12 °C
- Digital Output
- 1 Aux
- Display
- LCD
- Fan Switch Positions
- HI-MED-LOW-AUTO-OFF
- Features
- Upgradeable with PIR occupancy sensor cover TB-PIR-FCU-C
- For Use With
- Compatible with WEBs-AX
- Heating Maximum Setpoint Temperature
- 90 °F ; 32 °C
- Heating Minimum Setpoint Temperature
- 40 °F ; 4.5 °C
- Includes
- Remote Temperature Sensor Input, 2 Digital Inputs, 1 Universal Input, 1 Aux Output
- Maximum Operating Ambient Temperature
- 122 °F ; 50 °C
- Maximum Operating Humidity
- 95 % non-condensing
- Maximum Shipping & Storage Temperature
- 122 °F ; 50 °C
- Minimum Operating Ambient Temperature
- 32 °F ; 0 °C
- Minimum Operating Humidity
- 0 % non-condensing
- Minimum Shipping & Storage Temperature
- -22 °F ; -30 °C
- Mounting
- Vertical
- Network Communications
- BACnet MS/TP
- Number of Pipes
- 2 ; 4
- Occupancy Sensor
- PIR Ready
- Overall Depth
- 1.15 in ; 29 mm
- Overall Height
- 5 in ; 125 mm
- Overall Width
- 3.4 in ; 86 mm
- Regulatory Approvals
- CSA Certified ; FCC Part 15, Subpart B, Class A ; UL-873
- Relay Rated Load
- Fan: 30 Vac-- 1 A max, 3 A in-rush
- Stages
- 2 Analog / 1 Aux
- Supply Voltage
- 24 V AC
- Supply Voltage Frequency
- 50 Hz ; 60 Hz
- Thermostat Switch Positions
- OFF-HEAT-COOL-AUTO
