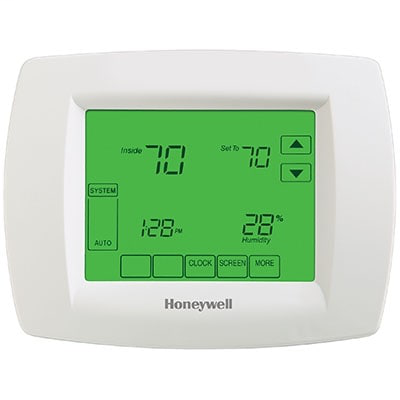

Honeywell TB3026B
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
A powerful BACnet-based controller with a large, integral touchscreen, occupancy-based temperature, humidity sensing and an optional on-board wireless receiver, the BACnet FF is a flexible solution for energy savings and maximum room coverage. BACnet FF is a configurable device with 19 factory-loaded applications for specific and common projects including fan coil, heat pump and roof top equipment control. It communicates of BACnet MS/TP and includes 3 universal inputs, 2 analog outputs and 6 relay outputs.BACnet Fixed Function Thermostat, BACNET FIXED FUNCTION THERMOSTAT
Honeywell TB3026B is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Analog Outputs
- 2 Analog Outputs
- Application
- Fan Coil, Roof Top, Heat Pump
- Changeover
- Auto or Manual
- Color
- White
- Connection Type
- Screw terminals
- Digital Output
- 6 Relays
- Display
- Touchscreen LCD
- Fan Switch Positions
- OFF-AUTO-LOW-MED-HI
- Features
- Integral Temperature and Humidity Sensors, 3 UIs, 2 AOs, 6 Relays
- For Use With
- Compatible with WEBs-AX
- Includes
- 3 UIs, 2 AOs, 6 Relays
- Maximum Operating Ambient Temperature
- 120 °F ; 48.9 °C
- Maximum Operating Humidity
- 95 % non-condensing
- Maximum Shipping & Storage Temperature
- 150 °F ; 65.6 °C
- Minimum Operating Ambient Temperature
- 0 °F ; -17 °C
- Minimum Operating Humidity
- 5 % non-condensing
- Minimum Shipping & Storage Temperature
- -40 °F ; -40 °C
- Mounting
- Horizontal on a wall plate directly on the wall or on a 2 in. x 4 in. wiring box
- Network Communications
- BACnet MS/TP
- Overall Depth
- 0.875 in ; 22 mm
- Overall Height
- 3.5 in ; 88 mm
- Overall Width
- 4.5 in ; 115 mm
- Regulatory Approvals
- FCC Part 15, Class A Emissions and Immunity ; UL Approved
- Sensor Element
- Humidity ; Temperature
- Stages
- Up to 2 Aux Heat/1 Comp Heat Pump ; Up to 2 Heat/2 Cool Conventional Systems, 1 Heat/1 Cool Fan Coil Units
- Supply Voltage
- 24 V AC
- Supply Voltage Frequency
- 50 Hz ; 60 Hz
- Thermostat Switch Positions
- OFF-AUTO
