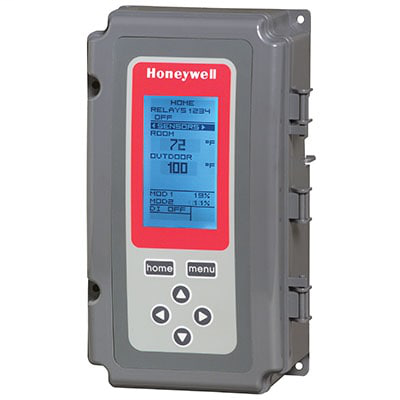

Honeywell T775M2014/U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
For on-off and analog control of temperature, pressure, humidity, etc for boilers, ducts, tanks, heating and refrigeration units, greenhouses, animal confinement buildings and other applications where electronic accuracy in addition to remote sensing is desired, Honeywell Remote Temperature Controllers are the answer. You’ll get the famous Honeywell accuracy and long-term performance.Electronic Controllers, ELECTRONIC REMOTE TEMPERATURE
Honeywell T775M2014/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accuracy
- ±1 C at 25 C ; ±1 F at 77 F
- Analog Outputs
- Electronic Series 90; 4-20 mA; 0-10 Vdc; 2-10 Vdc
- Application
- On/off or analog controller for applications where electronic accuracy and remote sensing of temperature is required.
- Bulb Diameter
- 0.25 in ; 6.35 mm
- Bulb Length
- 2 in ; 50.8 mm
- Controller Type
- On/off and analog outputs
- Differential Temperature
- 1 to 150 °F ; 0.5 to 66 °C
- Enclosure Rating
- NEMA 4X
- High/Low Modulating Limit
- Yes
- Includes
- T775-SENS-WR (1)
- Maximum Distance to Sensor
- Up to 1-000 ft ; up to 304 m
- Maximum Operating Humidity
- 95 % non-condensing
- Minimum Operating Humidity
- 5 % non-condensing
- Number of Sensor Inputs
- 2
- Number of Sensors Included
- 1
- Overall Depth
- 2.9375 in ; 74 mm
- Overall Height
- 8.15625 in ; 207.1 mm
- Overall Width
- 4.40625 in ; 112.1 mm
- Regulatory Approvals
- CuL ; IP65
- Relay Output Configuration
- 4 SPDT
- Relay Rated Load
- 24 Vac-- 10.0A resistive; 120 Vac-- 1/2 hp; 9.8 AFL- 58.8 ALR- 125 VA Pilot Duty; 240 Vac-- 1/2 hp; 4.9 AFL- 29.4 ALR- 125 VA Pilot Duty
- Setpoint Temperature Range
- -40 to 248 °F ; -40 to 120 °C
- Supply Voltage
- 120 V AC ; 24 V AC
- Supply Voltage Frequency
- 50 Hz ; 60 Hz
- Temperature Sensor Element
- 1097 ohm PTC
- Temperature Sensor Output
- 1097 ohms at 77 F (25 C)
- Throttling Range
- 1 to 150 °F ; 0.5 to 66 °C
