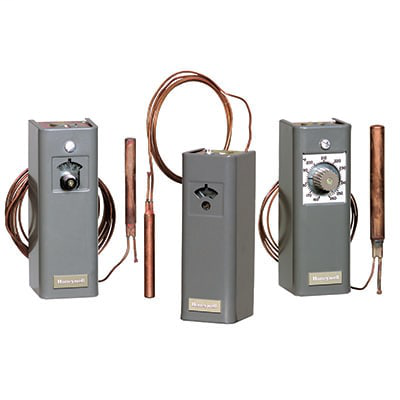

Honeywell T675A1458/B
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Honeywell T675A1458/B is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Application
- Regulates temperature of air or liquids in ducts- pipes- tanks and boilers
- Bulb Diameter
- 0.5 in ; 13 mm
- Bulb Length
- 3.5625 in ; 90 mm
- Capillary Length
- 5 ft ; 1.5 m
- Differential Temperature
- 1 °F ; 0.6 °C
- Maximum Operating Ambient Temperature
- 149 °F ; 65 °C
- Minimum Operating Ambient Temperature
- -40 °F ; -40 °C
- Number of Sensor Inputs
- 1
- Overall Depth
- 2.625 in ; 67 mm
- Overall Height
- 5.625 in ; 143 mm
- Overall Width
- 2 in ; 51 mm
- Regulatory Approvals
- CSA Listed: Report -1 ; UL Listed: E4436- Vol. 4- Sec. 11- Guide XAPX
- Relay Output Configuration
- 1 SPDT
- Relay Rated Load
- 120- 240- and 277 Vac-- 125 VA
- Setpoint Temperature Range
- 55 to 175 °F ; 13 to 79 °C
- Supply Voltage
- 120 V AC ; 240 V AC ; 277 V AC
- Supply Voltage Frequency
- 50 Hz ; 60 Hz
- Temperature Sensor Element
- Copper bulb
