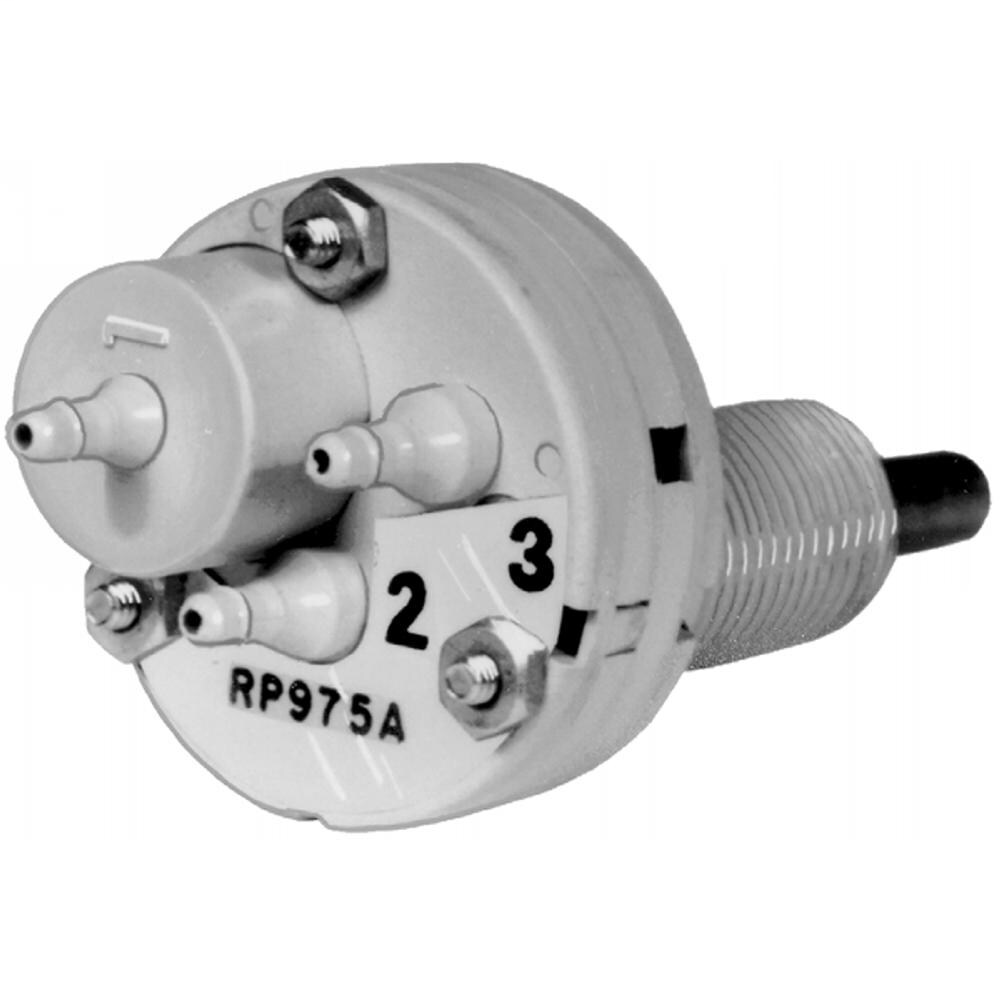

Honeywell RP975A1003/U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Honeywell RP975A1003/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Air Connections Outer Diameter
- 0.15625 in ; 4 mm
- Air Connection Type
- Barb fittings 5/32 in. (4 mm) O.D. plastic tubing
- Airflow Usage Capacity
- 0.022 cfm ; 10 ml/s
- Application
- Pneumatic Three-Port Hesitation relay
- Includes
- 14003030-001- 1 1/2 in. Mounting Clip for mounting relay to wall or panel. Scaleplate and knob- factory mounted and calibrated for 7 to 12 psi.
- Maximum Operating Ambient Temperature
- 125 °F ; 52 °C
- Maximum Operating Humidity
- 95 %
- Maximum Operating Pressure
- 30 psi ; 205 kPa
- Minimum Operating Ambient Temperature
- 32 °F ; 0 °C
- Minimum Operating Humidity
- 5 %
- Mounting
- Wall or In-line or panel
- Overall Depth
- 3.75 in ; 96 mm
- Overall Height
- 2.25 in ; 57 mm
- Overall Width
- 2.5 in ; 63 mm
