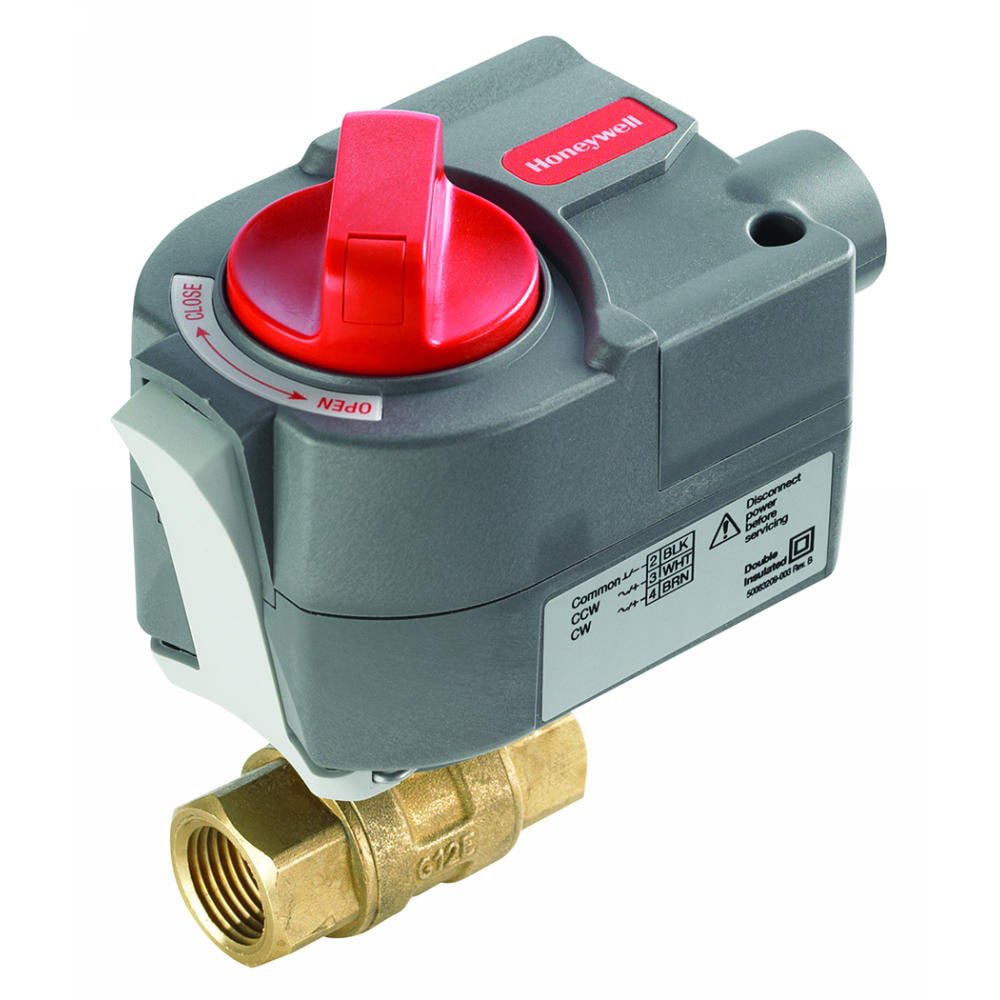

Honeywell MVN613A0000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Quality and experience are what make Honeywell's actuators and motors the top performers in the HVAC industry. If you need an actuator with lasting value or a motor with reliable performance and trouble-free operation, specify Honeywell. The Honeywell actuator products make precision easy with self-centering shaft adaptors, detachable access covers and universal signal mode adaptors.Rotary Actuators, ELECTRIC ACTUATOR - FLOATING ON/OFF (FAIL IN PLACE) - STANDARD PROFILE - 24 VAC
Honeywell MVN613A0000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Angle of Rotation
- 90 °
- Application
- HVAC
- Built In Rotation Limiter
- No
- Compatible with External Auxiliary Switches
- No
- Connection Type
- Screw terminals
- Control Signal
- Floating ; Two-Position (SPDT)
- Damper Compatibility
- No
- Driving Noise Rating
- 35 (db(A) @ 1m)
- Driving Power Consumption
- 1.5 VA
- Features
- Position indicator
- Feedback Included
- No
- Fire & Smoke Rating
- No
- For Use With
- VBN and VRN valve up to 1-1/4 inch
- Housing Material
- Plenum rated plastic
- IP Rating
- IP40
- Manual Override Included
- Yes
- Maximum Operating Ambient Temperature
- 131 °F ; 55 °C
- Maximum Operating Humidity
- 95 % non-condensing
- Maximum Shipping & Storage Temperature
- 176 °F ; 80 °C
- Minimum Operating Ambient Temperature
- -4 °F ; -20 °C
- Minimum Operating Humidity
- 5 % non-condensing
- Minimum Shipping & Storage Temperature
- -40 °F ; -40 °C
- Mounting Style
- MVN Standard Profile
- Number of End Switches
- 0
- Overall Depth
- 2.1875 in ; 71 mm
- Overall Height
- 3.8125 in ; 98 mm
- Overall Width
- 4.5625 in ; 116 mm
- Power Loss Action
- Fail-in-place
- Regulatory Approvals
- UL/cU ; UL60730
- Runtime
- 90 s
- Shaft Mounting
- Square
- Spring Return
- No
- Supply Voltage
- 24 V AC ; 24 V DC
- Supply Voltage Frequency
- 50 Hz ; 60 Hz
- Torque
- 27 in·lb ; 3 Nm
- Valve Compatibility
- VBN and VRN- up to 1.25 inch valve size
