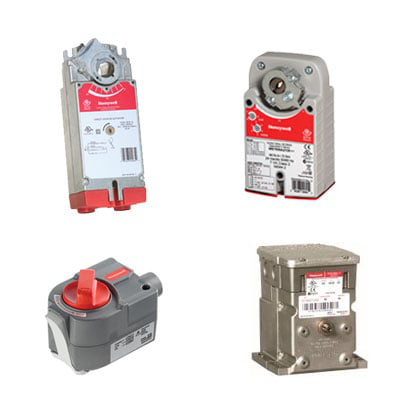

Honeywell MS8103F1025/U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Quality and experience are what make Honeywell's actuators and motors the top performers in the HVAC industry. If you need an actuator with lasting value or a motor with reliable performance and trouble-free operation, specify Honeywell. The Honeywell actuator products make precision easy with self-centering shaft adaptors, detachable access covers and universal signal mode adaptors.Rotary Actuators, F&S 250F actuator 24V, no feedback, no switches
Honeywell MS8103F1025/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Angle of Rotation
- 95 °
- Application
- Fire and Smoke
- Built In Rotation Limiter
- Yes, Adjustible in 7.5° increments
- Compatible with External Auxiliary Switches
- No
- Connection Type
- Cable
- Control Signal
- Two-Position (SPST)
- Damper Compatibility
- Direct Mount
- Driving Noise Rating
- 50 (db(A) @ 1m)
- Driving Power Consumption
- 6 VA
- Features
- Clip-in conduit connector ; U-bolt adapter
- Feedback Included
- No
- Fire & Smoke Rating
- UL555S up to 250°F
- For Use With
- Dampers
- Holding Power Consumption
- 3 VA
- Housing Material
- Plenum rated plastic
- Includes
- U-bolt adapter
- IP Rating
- IP54
- Lead Length
- 3 ft ; 0.914 m
- Manual Override Included
- No
- Maximum Operating Ambient Temperature
- 150 °F ; 65 °C
- Maximum Operating Humidity
- 95 % non-condensing
- Maximum Return Timing
- 25 s
- Maximum Shaft Diameter
- 0.75 in round ; 0.5 in square
- Maximum Shipping & Storage Temperature
- 150 °F ; 65 °C
- Minimum Operating Ambient Temperature
- 14 °F ; -10 °C
- Minimum Operating Humidity
- 5 % non-condensing
- Minimum Shaft Diameter
- 0.25 in round ; 0.25 in square
- Minimum Shipping & Storage Temperature
- -40 °F ; -40 °C
- Mounting Style
- Direct Coupled
- NEMA Rating
- NEMA 2
- Number of End Switches
- 0
- Overall Depth
- 3.11 in ; 79 mm
- Overall Height
- 7.5 in ; 191 mm
- Overall Width
- 3.266 in ; 83 mm
- Power Loss Action
- Spring return
- Regulatory Approvals
- UL60730 ; IEC 60730-1 and Part 2–14 ; UL555S Temperature Degradation Test, Long Term Holding test ; Flame Resistance UL94-5VA ; UL2043, switch wiring dependent on coduit installation
- Runtime
- < 45 s
- Shaft Mounting
- Universal
- Spring Return
- Yes
- Spring Return Orientation
- CW or CCW (based on actuator orientation)
- Supply Voltage
- 24 V AC
- Supply Voltage Frequency
- 50 Hz ; 60 Hz
- Torque
- 27 in·lb ; 3 Nm
