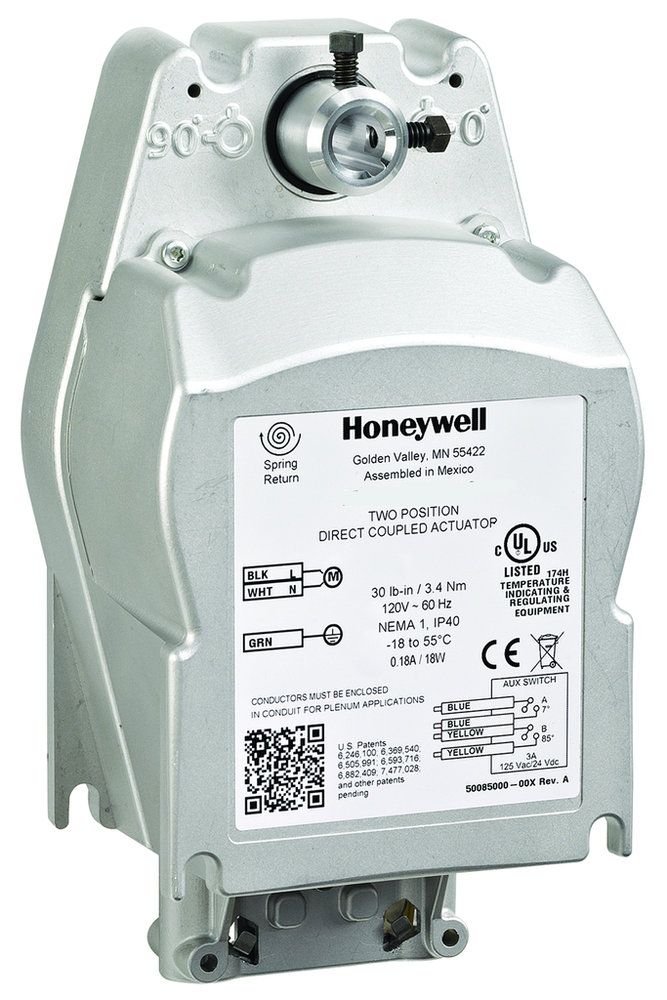

Honeywell MS4104F1010/U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Quality and experience are what make Honeywell's actuators and motors the top performers in the HVAC industry. If you need an actuator with lasting value or a motor with reliable performance and trouble-free operation, specify Honeywell. The Honeywell actuator products make precision easy with self-centering shaft adaptors, detachable access covers and universal signal mode adaptors.Rotary Actuators, FIRE AND SMOKE DIRECT COUPLED ACTUATOR
Honeywell MS4104F1010/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Angle of Rotation
- 95 °
- Application
- Fire and Smoke
- Compatible with External Auxiliary Switches
- No
- Connection Type
- Cable
- Control Signal
- Two-Position (SPST)
- Damper Compatibility
- Direct Mount
- Driving Noise Rating
- 75 (db(A) @ 1m)
- Driving Power Consumption
- 18 W
- Features
- 3/8 in flexible conduit connections
- Feedback Included
- No
- Fire & Smoke Rating
- UL555S up to 350°F
- For Use With
- Dampers
- Holding Current Draw
- 0.11 A
- Holding Noise Rating
- 20 (db(A) @ 1m)
- Holding Power Consumption
- 9 W
- Housing Material
- Aluminum
- IP Rating
- IP40
- Lead Length
- 32 in ; 0.8 m
- Manual Override Included
- No
- Maximum Operating Ambient Temperature
- 130 °F ; 55 °C
- Maximum Operating Humidity
- 95 % non-condensing
- Maximum Return Timing
- 15 s
- Maximum Shaft Diameter
- 0.5 in
- Maximum Shipping & Storage Temperature
- 140 °F ; 60 °C
- Minimum Operating Ambient Temperature
- 0 °F ; -18 °C
- Minimum Operating Humidity
- 5 % non-condensing
- Minimum Shaft Diameter
- 0.5 in
- Minimum Shipping & Storage Temperature
- -40 °F ; -40 °C
- Mounting Style
- Direct Coupled
- NEMA Rating
- NEMA 1
- Number of End Switches
- 0
- Operating Current Draw
- 0.18 A
- Overall Depth
- 3.32 in ; 84 mm
- Overall Height
- 8.9 in ; 227 mm
- Overall Width
- 5.13 in ; 129 mm
- Power Loss Action
- Spring return
- Regulatory Approvals
- C Tick N314 ; UL 873- Plenum Rated ; cUL C22.2 No. 24-93
- Runtime
- 15 s
- Shaft Mounting
- Round
- Spring Return
- Yes
- Spring Return Orientation
- CW or CCW (based on actuator orientation)
- Stall Torque
- 150 in·lb
- Supply Voltage
- 120 V AC
- Supply Voltage Frequency
- 50 Hz ; 60 Hz
- Torque
- 30 in·lb ; 3.4 Nm
- Valve Compatibility
- With linkage
